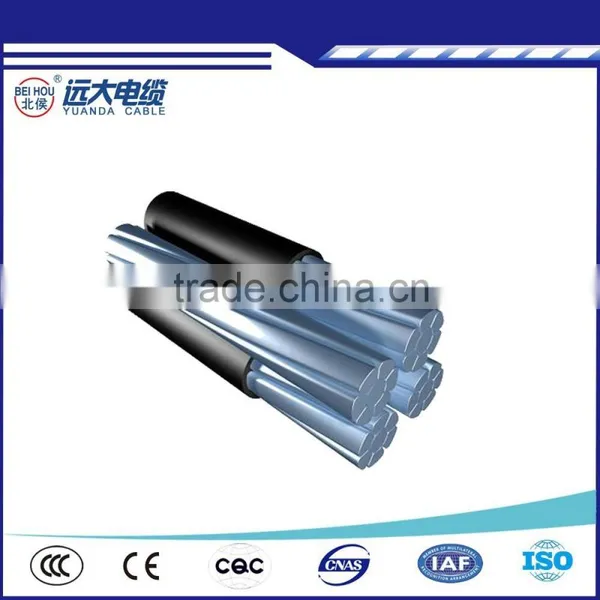

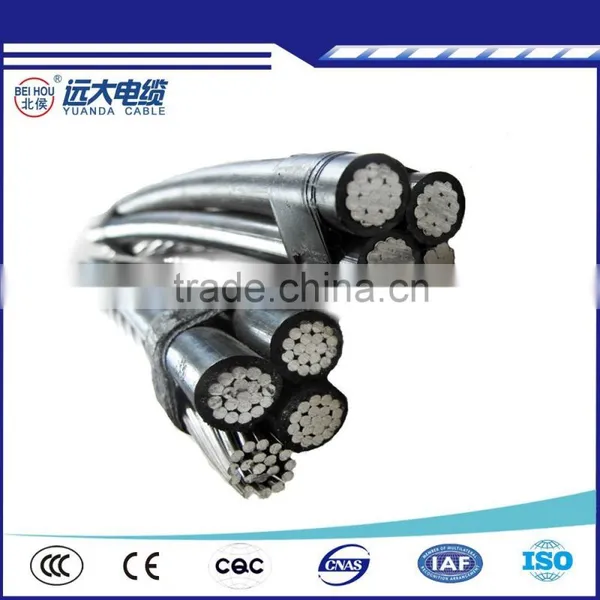

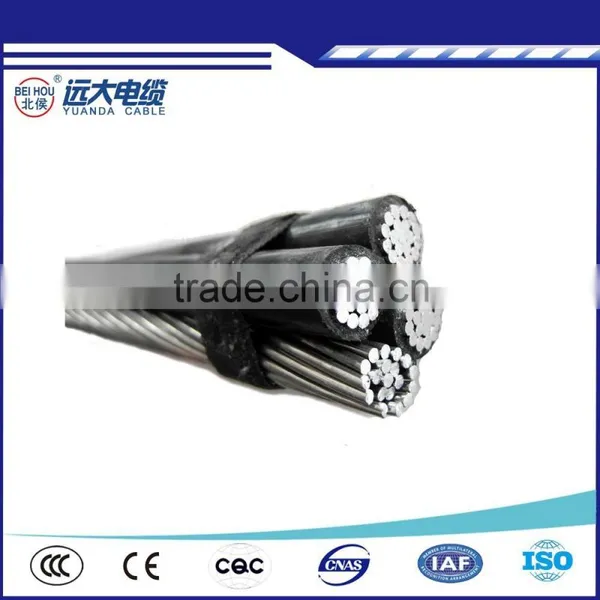

0.6/1KV AERIAL BUNDLE CABLE(ABC CABLE)
AAC SELF-SURPORTING
Applications
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 1000 volts or lower at a conductor temperature of 75°C maximum.
Construction
All aluminium conductor, polyethylene or cross linked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
Standard and application scope:
This product is produced in accordance with the standard of IEC60502/BS 2627. The products,Cu core or Al core XLPE or HDPE aerial insulated electric power cable,may be used the fields where the A.C.rated voltage U(Um) is 0.6/1kV.
Using feature:
1) The max long-term operating temperature of cable conductor(cable having supporting structure):
a) XLPE insulation :90°C
b) HDPE insulated 75°C
2) When short circuit (the Max. lasting time is not over 5 seconds), the Max.temperature of the cable:
a)XLPE insulated: 250°C
b)HDPE insulated 150°C
3) When laying, the temperature should not be lower than -20oC;
4) The permitted bend radius should not be less than the diameter of cylinder that had been used for the bend testing.
5) Cables installed in air;
6) Ambient temperature:40oC
7) Intensity of solar radiation:1000w/m2
Packaging
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Our motto: “Customer Supreme, Quality First”, Zhengzhou Yuanda Cable wins customer trust as follows:
1.Quality control strictly follows ISO9001:2008 and ISO14001:2004, and all products we supplied are totally unused and use best raw materials by first-class techniques, and are carefully tested and qualified by all specified testing items.
2.Our company promises to offer best after-sale services to all customers. The service for cable fixation, installation and testing are available at customer’s request, if necessary, we can provide technicians to give detail instructions. Any problems on quality, we will repair or replace the defected products and the concerned expense or loss will be at our side.
3.Our company promises to offer cooperation and services according to the binding contract and requirements of supervision, testing for products.
Thanks for your attention to our products,we specialize in power cable for many years,with good quality and pretty competitive price.Should you have any questions,please do not hesitate to contact me.
