Product Details
| Place of Origin | Henan, China | Brand Name | BEI HOU | |
| Model Number | ACSR conductor | Conductor Material | Other, Aluminum and conductor | |
| Insulation Material | Other, bare | Jacket | Other, none | |
| Number of Conductors | Multi-core | Application | Overhead power distribution line |
Product Description
ACSR Drake 795MCM Overhead Types of ACSR Conductor ASTM B232 Standard
ACSR Aluminum Conductor Steel Reinforced
ACSR conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
ACSR Aluminum Conductor Steel Reinforced Standard:
Canadian Standard Sizes: CSA C-49
American Stanard Sizes: ASTM B 232
British Standard Sizes: BS215 Part 2
BS Standard Extra Strong: BS 215 Part 2
Australian Standard Sizes: AN/NZS 3607
German Standard Sizes: DIN 48204
South African Standard Sizes: SABS 182-3
Application requirements:
1. The highest working temperature of ACSR should not exceed 80oC.
2. The laying temperature should not lower than -20oC.
3. The permissible bending radius of conductor is 12 times that of outside diameter of cable.
Bending radius:
Single core:20(D+d)±5%mm
Multi-core:15(D+d)±5%mm

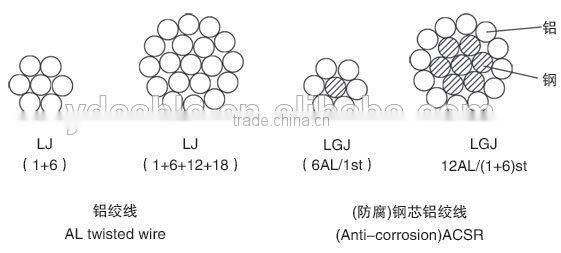

Models for ACSR | ||
Model | Name | |
GB1179-83 | GB1179-2008 | |
LJ | JL | All Aluminum Conductor(AAC) |
LGJ | JL/G1A JL/G2A JL/G1B JL/G2B JL/G3A | Aluminum Conductor Steel Reinforced (ACSR) |
LGJF | JL/G1AF JL/G2AF JL/G3AF | Anti-corrosive ACSR |
Technical data for ACSR
Nominal Aluminium Area (mm2)
| Strand and Wire Dia (No./mm) | Calculated Area (mm2) | Approx Overall Dia (mm) | Approx Weight (kg/km) | Calculated Breaking Load Min (KN) | Calculated D.C Resistance At 200C (ohm/km) | Code Word | ||
Al | St | Al | St | ||||||
20 | 6/2.11 | 1/2.11 | 20.98 | 3.50 | 6.33 | 84.85 | 7.90 | 1.368 | Squirrel |
25 | 6/2.36 | 1/2.36 | 26.24 | 4.37 | 7.08 | 106.10 | 9.61 | 1.0930 | Gopher |
30 | 6/2.59 | 1/2.59 | 31.61 | 5.27 | 7.77 | 127.80 | 11.45 | 0.9077 | Weasel |
40 | 6/3.00 | 1/3.00 | 42.21 | 7.07 | 9.00 | 171.50 | 15.20 | 0.6766 | Ferret |
50 | 6/3.35 | 1/3.35 | 52.88 | 8.81 | 10.05 | 213.80 | 18.35 | 0.5426 | Rabbit |
60 | 6/3.66 | 1/3.66 | 63.12 | 10.52 | 10.98 | 255.30 | 21.77 | 0.4546 | Mint |
60 | 12/2.59 | 7/2.59 | 63.23 | 36.88 | 12.95 | 463.60 | 52.94 | 0.4566 | Skunk |
70 | 12/2.79 | 7/2.79 | 73.37 | 42.80 | 13.95 | 538.10 | 61.20 | 0.3936 | Horse |
70 | 6/4.09 | 1/4.09 | 78.84 | 13.14 | 12.27 | 318.90 | 27.05 | 0.3639 | Raccoon |
100 | 6/4.72 | 7/1.57 | 105.00 | 13.55 | 14.15 | 394.30 | 32.70 | 0.2733 | Dog |
150 | 30/2.59 | 7/2.59 | 158.10 | 36.88 | 18.13 | 725.70 | 69.20 | 0.1828 | Wolf |
150 | 18/3.35 | 1/3.35 | 158.70 | 8.81 | 16.75 | 505.70 | 35.70 | 0.1815 | Dingo |
175 | 30/2.79 | 7/2.79 | 183.40 | 42.80 | 19.53 | 842.40 | 79.80 | 0.1576 | Lynx |
175 | 18/3.61 | 1/3.61 | 184.30 | 10.24 | 18.05 | 587.60 | 41.10 | 0.1563 | Caraca |
200 | 30/3.00 | 7/3.00 | 212.10 | 49.48 | 21.00 | 973.80 | 92.25 | 0.1363 | Panther |
200 | 18/3.86 | 1/3.86 | 210.60 | 11.70 | 19.30 | 671.40 | 46.55 | 0.1367 | Jaguar |
250 | 30/3.35 | 7/3.35 | 264.40 | 61.70 | 23.45 | 1214.00 | 111.40 | 0.1093 | Bea |
300 | 30/3.71 | 7/3.71 | 324.30 | 75.67 | 25.97 | 1489.00 | 135.70 | 0.08912 | Goat |
300 | 18/4.78 | 7/1.68 | 323.10 | 15.52 | 24.16 | 1012.00 | 69.64 | 0.08914 | Batang |
350 | 54/3.00 | 7/3.00 | 381.70 | 49.48 | 27.00 | 1443.00 | 120.70 | 0.07572 | Bison |
400 | 54/3.18 | 7/3.18 | 428.90 | 55.59 | 28.62 | 1622.00 | 131.90 | 0.06741 | Zebra |
450 | 30/4.50 | 57/4.50 | 477.00 | 111.30 | 31.50 | 2190.00 | 198.30 | 0.06057 | Elk |
450 | 54/3.35 | 7/3.35 | 476.00 | 61.70 | 30.15 | 1800.00 | 146.20 | 0.06074 | Camel |
500 | 54/3.35 | 7/3.35 | 528.50 | 68.50 | 31.77 | 1998.00 | 161.00 | 0.05470 | Moose |
In rolls, wooden drums, steel drums or steel-wooden drums or as per request.
1.20 years professional cable manufacture experience since 1996.
2. Competitive price and standard quality.
3.Standardized quality management under ISO9001:2008
4.OEM (Original Equipment Manufacture)acceptable
5.Free sample are available.
6.24 hours online service,quickly response to your questions.
Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Our Principles
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Mutual benefit and cooperation
4)Honesty and profession
Contact Us
- Zhengzhou Yuanda Cable Co., Ltd.
- Contact nameBecky Zhou Chat Now
- Phone0086-371-55699718
- AddressNo. 2304, Floor 23, Bldg. 1, No. 157, Fuyuan Road, Jinshui Dist., Zhengzhou, Henan
