hikvision cctv ip camera with30 Meters IR Range POE ,Onvif ,P2P , Cloud
Read before purchase
- Hikvision authorized dealer channels.
- Firmware is V5.3.3 Multi Language. English Version. ( NO Chinese Version). OEM brown box ,multiple language .Original brand IP cameras .
- Bulk order is welcomed. If you are installer or distributors, Please contact us for full pricelist.
- 2 years Warranty date guarantee.
- Delivery time: 10-15 working days
DS- DS-2CD2135F-IS New
hikvision cctv surveillance cameras
1) 3MP 1/3'' Progressive scan CMOS
2) Support dual streams
3) Up to 30 meters IR range
4) -S: Two-way audio
5)-S: Audio/Alarm I/O
6) IR cut filter with auto switch
7) DC12V & PoE
8) Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
9) Ingress Protection level: IP66
10)IK08(-W model)/IK10(non -W model)
hikvision cctv surveillance cameras
Camera | ||
Image Sensor: |
| |
1/3" Progressive Scan CMOS |
Min. Illumination: |
| |
0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR |
Shutter time: |
| |
1/3 s to 1/100,000 s |
Lens: |
| |
4mm@ F2.0 (2.8mm, 6mm optional), Angle of view: 98.5°(2.8mm), 79°(4mm) , 49°(6mm) |
Lens Mount: |
| |
M12 |
Day& Night: |
| |
IR cut filter with auto switch |
Wide Dynamic Range: |
| |
Digital WDR |
Digital noise reduction: |
| |
3D DNR |
Compression Standard | ||
Video Compression: |
| |
H.265/H.264/MJPEG |
H.264 code profile: |
| |
Main Profile |
Video bit rate: |
| |
32Kbps~12Mbps |
Audio Compression: |
| |
-S: G.711/G.722.1/G.726/MP2L2 |
Audio bit rate: |
| |
64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2) |
Dual Stream: |
| |
Yes |
Image | ||
Max. Image Resolution: |
| |
2048×1536 |
Frame Rate: |
| |
50Hz: 20fps(2048 × 1536), 25fps(1920 × 1080), 25fps (1280 × 720) |
Image Settings: |
| |
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
BLC: |
| |
Yes, zone configurable |
ROI: |
| |
Support |
Network | ||
Network Storage: |
| |
Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
Alarm Trigger: |
| |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protocols: |
| |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
Security: |
| |
One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy |
System Compatibility: |
| |
ONVIF, PSIA, CGI, ISAPI |
Interface | ||
Audio: |
| |
1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
Communication Interface: |
| |
1 RJ45 10M / 100M Ethernet interface |
Alarm: |
| |
-S: 1 alarm I/O |
Wi-Fi Specification (-W) | ||
Wireless Standards: |
| |
IEEE802.11b, 802.11g, 802.11n |
Frequency Range: |
| |
2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth: |
| |
20/40MHz Support |
Modulation Mode: |
| |
802.11b: CCK, QPSK, BPSK |
Security: |
| |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
Transmit Power: |
| |
11b: 17±1.5dBm @ 11Mbps |
Receive Sensitivity: |
| |
11b: -90dBm @ 11Mbps (Typical) |
Transmission Rate: |
| |
11b: 11Mbps |
Wireless Range: |
| |
50m(depend on environment) |
Protocols: |
| |
802.11b: CCK, QPSK, BPSK |
General | ||
Operating Conditions: |
| |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Power Supply: |
| |
12 VDC ± 10%, PoE (802.3af) |
Power Consumption: |
| |
Max. 5 W |
Impact Protection: |
| |
IK08(-W model)/IK10(non -W model) |
Weather Proof: |
| |
IP66 |
IR Range: |
| |
Up to 30m |
Dimensions: |
| |
Φ111 × 82 (4.4” × 3.2”) |
Weight: |
| |
500g (1.1 lbs) |
NOTE:: |
| |
"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support |

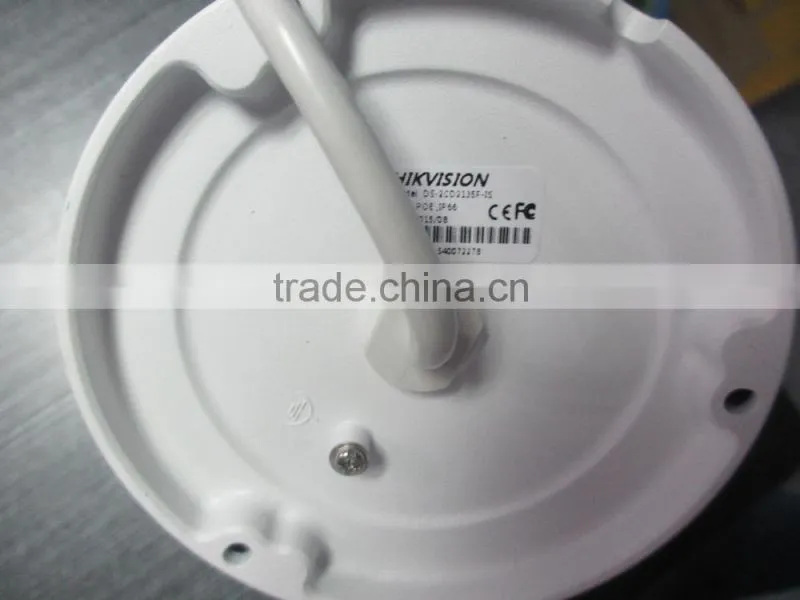

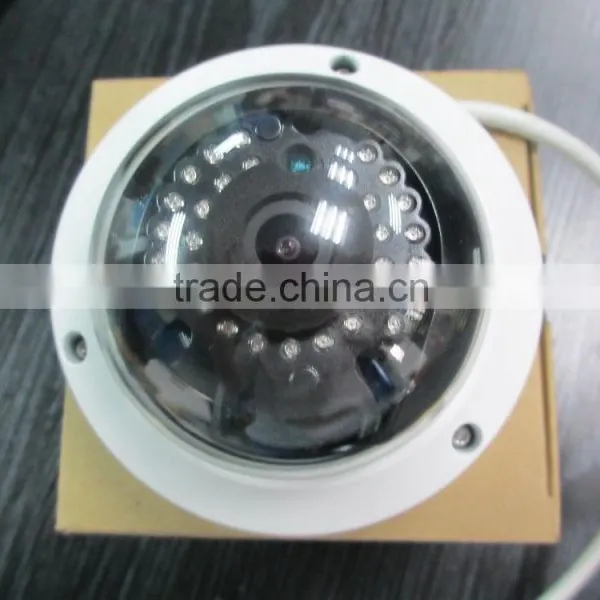

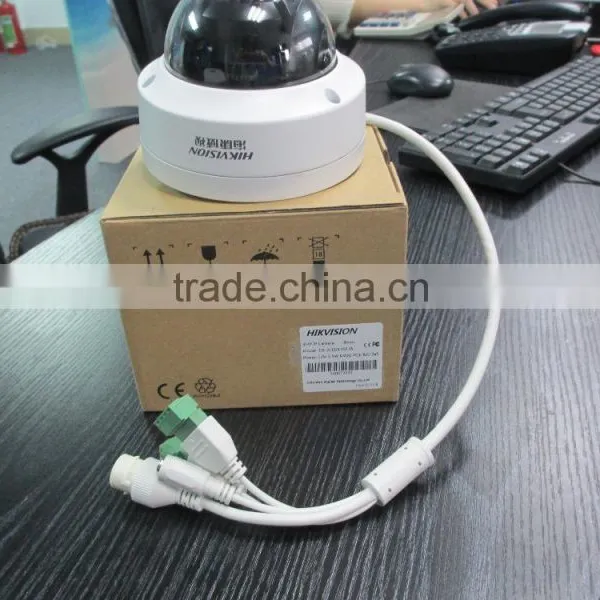

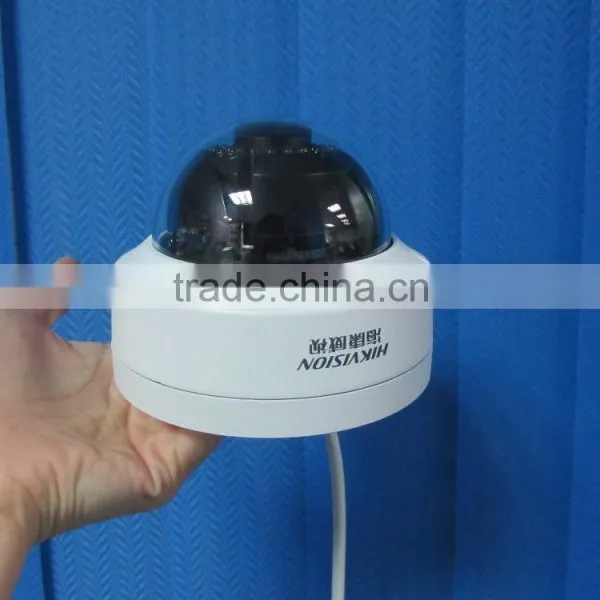

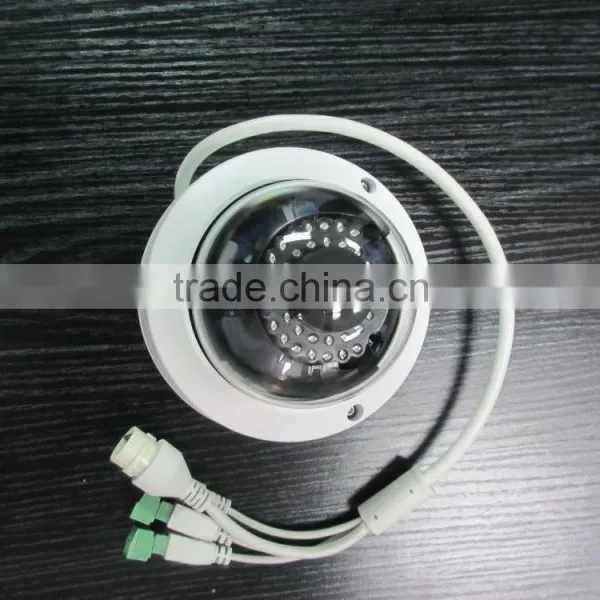

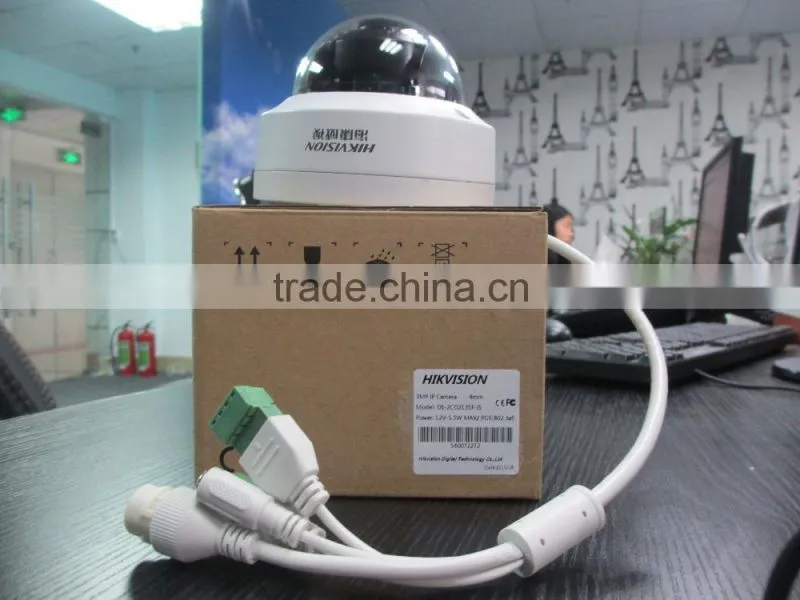

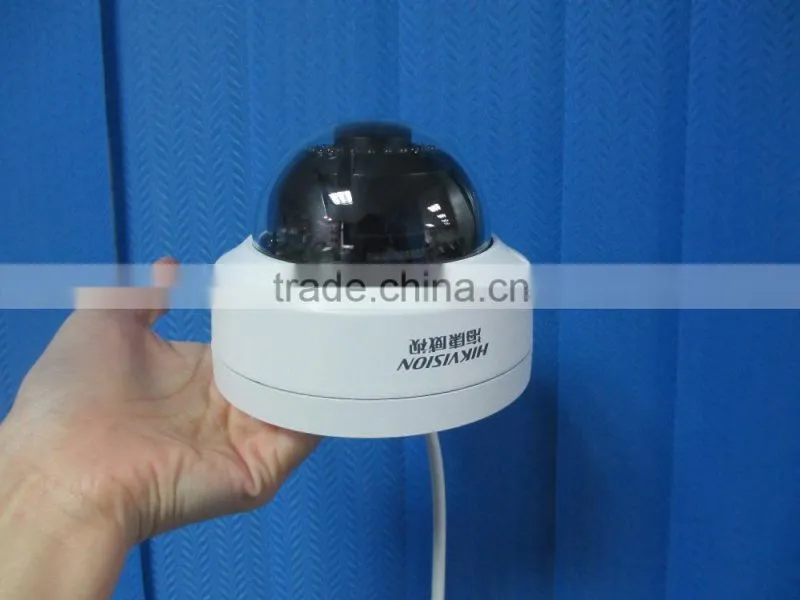

Products Photos :
