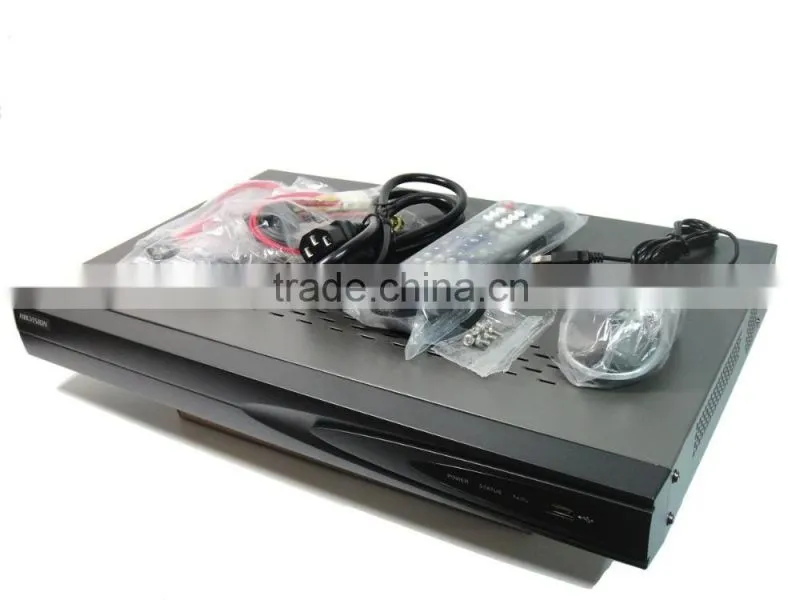

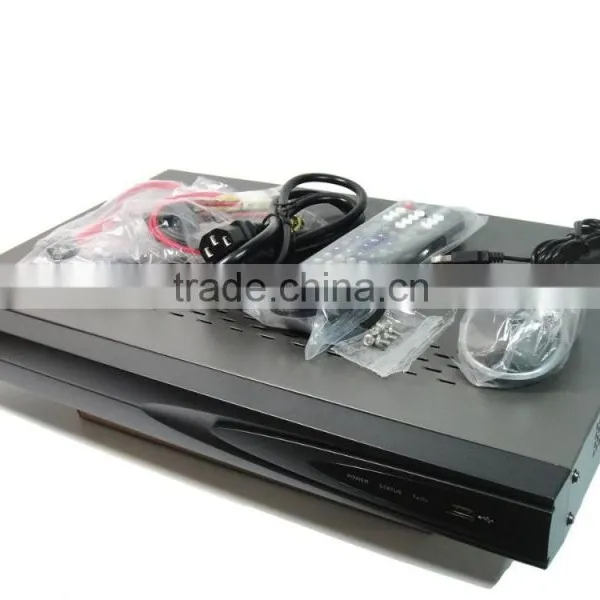

Economic hikvision Embedded Plug & Play 4ch POE NVR supports 4ch IP camera input
DS-7600NI-E1/4P and DS-7600NI-E2/8P (16P) series NVR (Network Video Recorder) is a new generation recorder developed by Hikvision independently.Combined with multiple advanced technologies, such as audio and video decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and
cooperate with other device to form a comprehensive surveillance system.
The DS-7600NI-E1/4P and DS-7600NI-E2/8P (16P) series NVR are widely
applied in the areas of finance, public security, military, communication,
transportation, education, etc
• Third-party network cameras supported
• Up to 6 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P
resolution
• 4/8/16-ch network cameras can be connected with
40M/80M/160M incoming bandwidth
• Up to 2 SATA interfaces
• Support network detection, including network delay,
packet loss, etc.
Rear Panel of DS-7104/08/16NI-SN(/N)
Power Supply
Audio In
HDMI Interface
LAN Network Interface
Audio Out
VGA Interface
USB Interface
Ground
Built-in Switch Ethernet Interface
| Video/Audio Input | ||
|---|---|---|
| IP video input: | | | 4-ch |
| Two-way audio input: | | | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | ||
| Incoming bandwidth: | | | 40Mbps |
| Outgoing bandwidth: | | | 80Mbps |
| Remote connection: | | | 128 |
| Video/Audio Output | ||
| HDMI/VGA output: | | | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Recording Resolution: | | | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame Rate: | | | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
| Audio Output: | | | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback: | | | 4-ch |
| Decoding | ||
| Live view / Playback: | | | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | | | 4-ch@1080P |
| Hard Disk | ||
| SATA: | | | 1 SATA interface for 1 HDD |
| Capacity: | | | Up to 4TB for each disk |
| External Interface | ||
| Network Interface: | | | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | | | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In: | | | 4-ch |
| Alarm Out: | | | 1-ch |
| General | ||
| Power Supply: | | | 12V DC |
| Consumption(without hard disk and POE): | | | ≤ 10W |
| Working Temperature: | | | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | | | 10 % ~ 90 % |
| Chassis: | | | 1U chassis |
| Dimensions: | | | 315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch) |
| Weight(without HDD): | | | ≤ 1 kg |
