DS-71xxNI-SN Series Economic MINI 8 Channel H.264 Real-time Recording ONVIF Hikvision POE NVR
US$ 200 - 200
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-7108NI-SN-P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DS-7608NI-E2/8POE Ports HIKVISION ip Network Video Recorder Support 2xSATA HDDNegotiableMOQ: 1 Piece -
Economic Hikvision NVR Network Video Recorder for Hikvision POE IP CamerasNegotiableMOQ: 1 Piece
-
Original Hikvision NVR DS-7604NI-E1/4P Video Recorder With English Version , 4POE PortsNegotiableMOQ: 1 Piece
-
Hikvision DS-7732NI-E4/16P Professional NVR Supports 32ch IP Camera RecordersNegotiableMOQ: 1 Piece
-
DS-2CD2632F-IS Hikvision POE Camera Security Waterproof Cctv ip Camera for OutdoorNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Hikvision
Model Number
DS-7108NI-SN-P

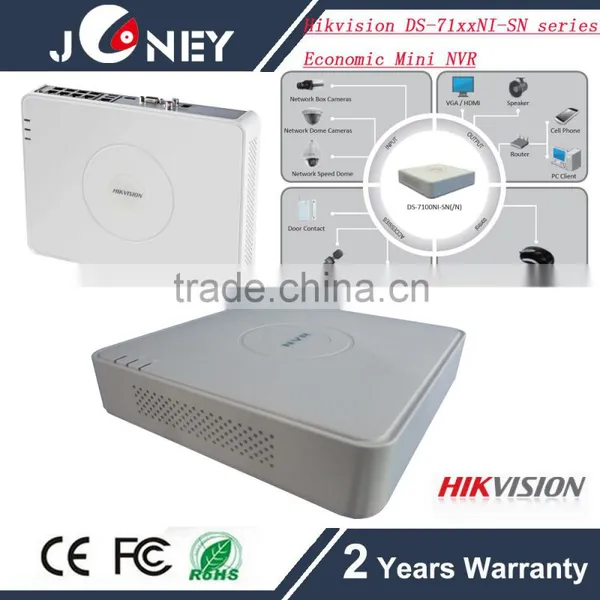

DS-71xxNI-SN series Economic MINI 8 channel H.264 Real-time recording ONVIF Hikvision poe NVR
Features
• Third-party network cameras supported
• Up to 2 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• 4/8 independent PoE network interfaces are provide
Advantage
Rear Panel of DS-7104/08/16NI-SN/P
Power Supply
Audio In
HDMI Interface
LAN Network Interface
Audio Out
VGA Interface
USB Interface
Ground
PoE Ethernet Interface
Specification
| Video/Audio Input | ||
|---|---|---|
| IP video input: | | | 8-ch |
| Two-way audio input: | | | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | ||
| Incoming bandwidth: | | | 50Mbps |
| Outgoing bandwidth: | | | 40Mbps |
| Remote connection: | | | 128 |
| Video/Audio Output | ||
| HDMI/VGA output: | | | 1-ch, resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Audio Output: | | | 1-ch, RCA (Linear, 1kΩ) |
| Decoding | ||
| Live view / Playback: | | | 1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Capability: | | | 8-ch@4CIF, 4-ch@720P, 2-ch@1080P |
| Hard Disk | ||
| SATA: | | | 1 SATA interface for 1 HDD |
| Capacity: | | | Up to 4TB for each disk |
| External Interface | ||
| Network Interface: | | | 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface |
| USB Interface: | | | 2, USB2.0 |
| POE | ||
| Interface: | | | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
| Max. Power: | | | 40W |
| Supported Standard: | | | AF |
| General | ||
| Power Supply: | | | 48V DC |
| Consumption(without hard disk and POE): | | | ≤ 10 W |
| Working Temperature: | | | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | | | 10 % ~ 90 % |
| Chassis: | | | 1U chassis |
| Dimensions: | | | 285 × 210 × 45 mm |
| Weight(without HDD): | | | ≤ 1 Kg |
