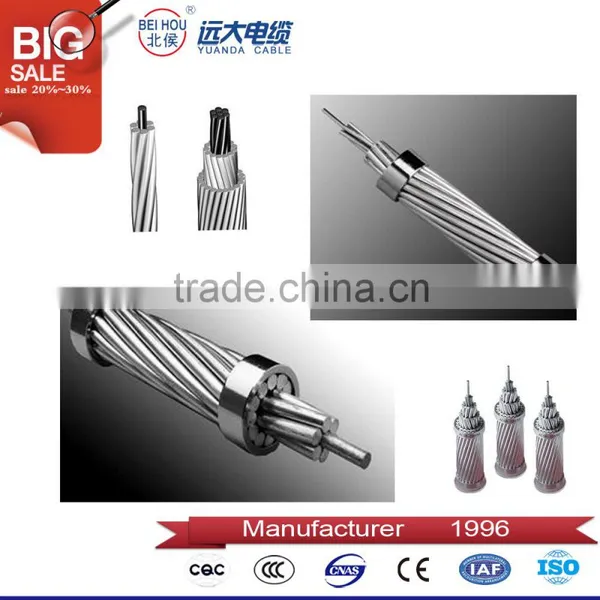

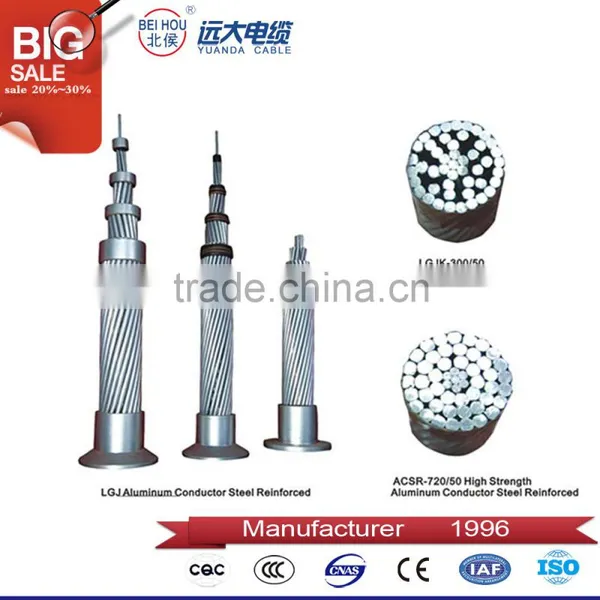

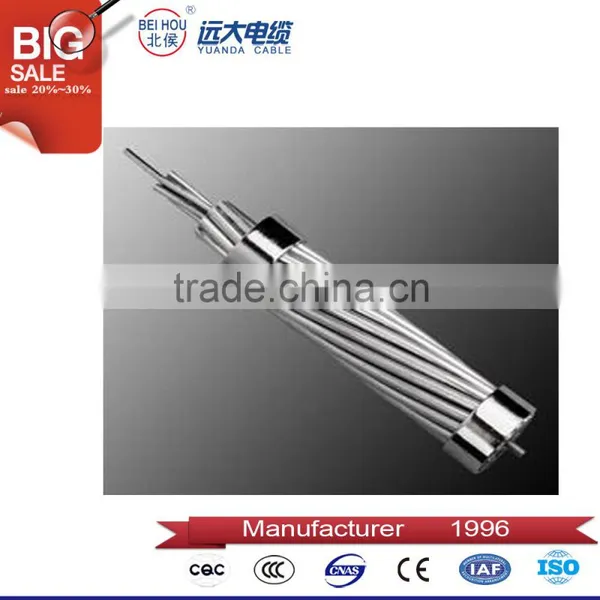

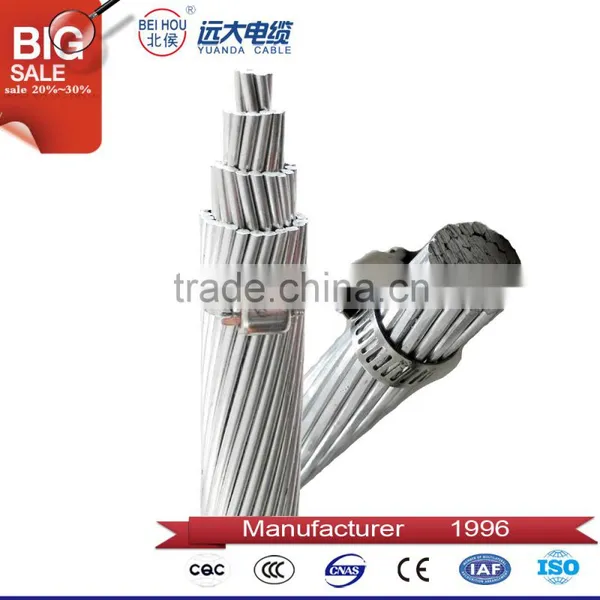

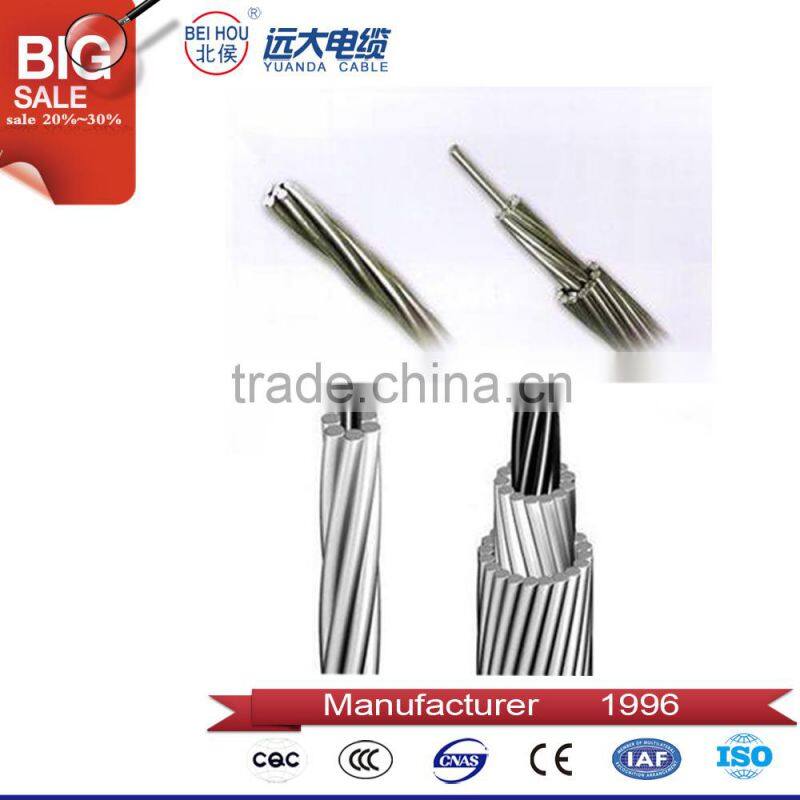

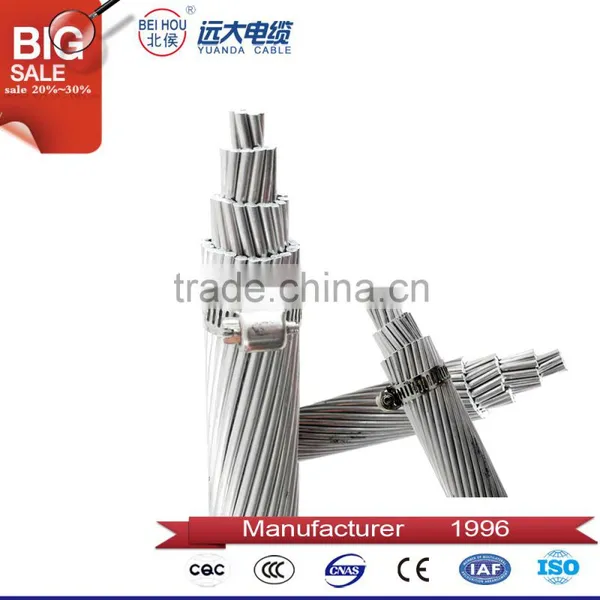

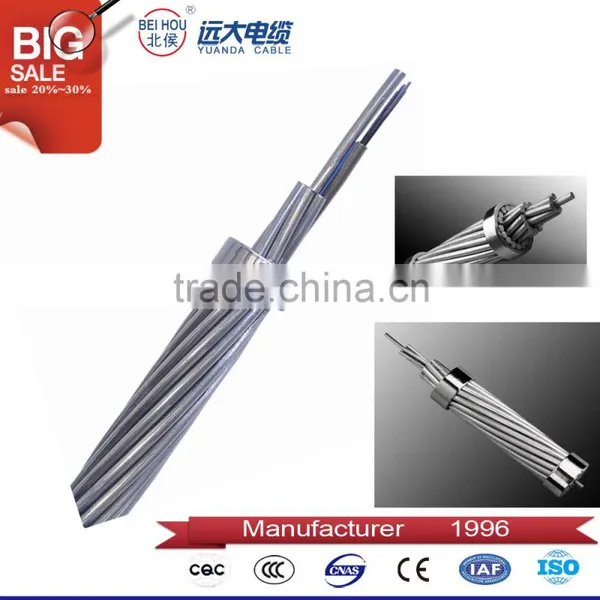

240mm2 aluminum conductor ACSR cable of zhengzhou manufacture for overhead application
1) Advantages:
1.Simple structure;
2. Convenient to erection and maintenance;
3. Low cost for power line;
4. Large transmission capacity;
5. Beneficial to lay in special geographic conditions, such as across rivers and valleys.
6. Excellent conductivity;
7. Enough mechanical strength;
8. Large tensile stress.
9. Pole distance amplification allowed.
2) Application:
Used as bare overhead transmission cable and as primary and secondary distribution cable.
ACSR Conductor offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. ACSR Conductor are used extensively for overhead ground wires, river crossings etc. These ACSR Conductor are available with us in various types for meeting the exact requirements of the clients.
ACSR are widely used in overhead power transmission and distribution lines in different voltages.
3) Technical Characters for AAAC
|
Standard Alluminum Section (mm2) |
The Number of Single Wire And Dia. (mm2) |
Section (mm2) |
The Approximate Outer Dia. (mm) |
The Approximate Weight Per Kilo. (Kg) |
Calculated D.C Resistance At 200C
|
The Calculated Pulled Force (KN) |
Standard Alluminum Section (mm2) |
25 |
7/2.34 |
30.10 |
7.02 |
82 |
1.094 |
8.44 |
25 |
30 |
7/2.54 |
35.47 |
7.62 |
97 |
0.9281 |
9.94 |
30 |
40 |
7/2.95 |
47.84 |
8.85 |
131 |
0.8880 |
13.40 |
40 |
50 |
7/3.30 |
59.87 |
9.90 |
164 |
0.5498 |
16.80 |
50 |
100 |
7/4.65 |
118.9 |
13.95 |
325 |
0.2789 |
33.30 |
100 |
150 |
19/3.48 |
180.7 |
17.40 |
497 |
0.1830 |
50.65 |
150 |
175 |
19/3.76 |
211.0 |
18.80 |
580 |
0.1568 |
59.10 |
175 |
300 |
37/3.53 |
332.1 |
24.70 |
997 |
0.09155 |
101.5 |
300 |
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Packaging:
In coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Feedback:
We will begin to manufacture products and leave feedback once payment received from clients after we reach the agreement.
If you have any problems with your order, we are happy to find an amicable resolution with your side.

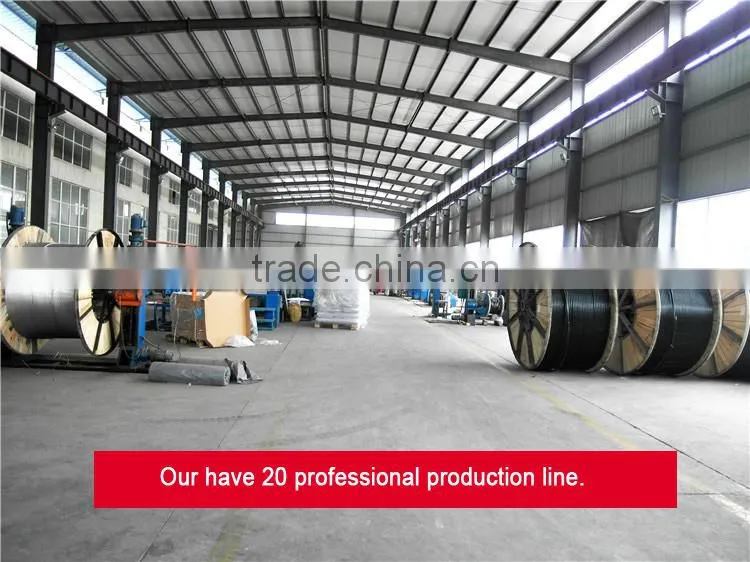

Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Yuanda Cable Products:
1. XLPE Power Cables Up to 220kV
2.Building Wires & PVC Cables (CE,IEC Certificate)
3.Rubber,Mining&Welding Cables (CE,IEC Certificate)
4.Solar Photovoltaic Cable
5.Fire Resistant/LSZH Cables
6.Aerial Bundled Cable (ABC)
7.ACSR,AAC,AAAC Bare Conductor
8.CAT5E,CAT6 Network Cable
9.Control&Instrumentation Cables
10.Silicone Rubber Cables
11.Fluorine Plastic Insulated Cables
12.Customized Cables & Wires
Our Principles:
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Equal and mutual benefit
4)Honesty and profession
Our service:
1.Swift and professional response
2.Patient and trusty
3.Severe quality control system
4.On-time delivery
5. If ome meter less, you will get tem meters compensation
1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large mufacturing factory in Middle of China with 1,000 staff.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in No.1 building 23,Layer 2304,No.157 FuYuan Road, Jinshui District, Zhengzhou Henan. It is advised that you come directly by plane to Zhengzhou Airport.
3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if available, Freight Charge normally will be on buyer’s account.
4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable company has passed ISO9001 and ISO14004 certificate and strict QC system. we promise to deliver only qualified cable.
5. Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, balance payment negotiable accordingly.
6. Have you ever supplied cables to our country?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
7. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific cable requirement.
