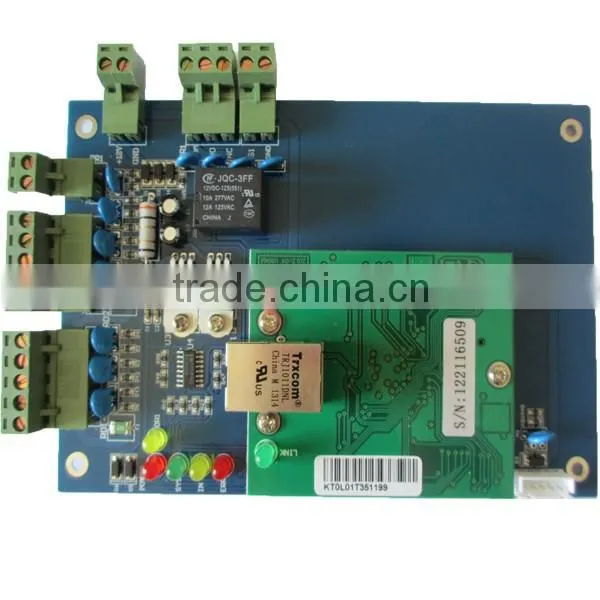

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board

Name: TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board
Brand: Joneytech
SKU: 128328533
Availability: InStock

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board thumbnail-1

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board thumbnail-2

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board thumbnail-3

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board thumbnail-4

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board thumbnail-5

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board thumbnail-6

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board photo-1

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board photo-2

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board photo-3

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board photo-4

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board photo-5

TCP/IP / RS485/232 Communiction/single Door Control One Door Access Control Board photo-6

US$ 35 - 35 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Joneytech

Model Number:

JYC-T2001B

Contact Supplier Request Quote Chat Now

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Joneytech

Model Number JYC-T2001B

Product Details

Model Number : JYC-T2001B

Main Features :

.TCP/IP / RS485/232 communiction/single door Control one door

.Can control enter and exit by read card

.20 000pcs cards management authority

.100 000pcs storage records

Main specification :

Communication	TCP/IP / RS485/232
English Software database:	SQL
Description	Control 1 door, in or out door by swiping card, or get in by swiping card and get out door by button
Power Supply	12VDC; 4-7A
Power Consumption of Circuit Board	Less than 100mA
Input Format of Reader	Wiegand 26/34 bit (All card reader with compatible protocol)
Control Door and Readers	1 door by 2 readers
Door opening time extending setting	1-600 Seconds(adjustable)
Operation Temperature	-40°C-70°C
Operation Humidity	10-90 % RH , No Condensation
Power interruption protection	High Speed Memory, Records never lose
Max Distance	100M (suggestion distance 80m)
Max Distance between Controllers	Depand on network range
Collocations	PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Alarm function	Yes
Fire and alarm linkage	If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Open door in remote distance	Yes
Anti pass back and tail	Yes
Electronic map	Yes
Urgency locking	Yes
Keypad (card+passwor,password)	Yes
Unit Size	160mm *106mm
