Remotely Access Control Panel Windows
US$ 35 - 70
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney
Model Number:
JYC-T2004B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TCP/IP Four Doors Access Controller (JYC-T2004B)US$ 55 - 60MOQ: 5 Pieces -
TCP/IP Access Control Board for 4 Doors (JYC-T2004B)US$ 55 - 60MOQ: 5 Pieces
-
TCP/IP Wiegand 26/34 Four Doors Access Control Panel (JYC-T2004B)US$ 55 - 60MOQ: 5 Pieces
-
Tcp/ip Access Controller/access Control Board for Access Control SystemUS$ 35 - 40MOQ: 5 Pieces
-
Wiegand Single Door TCP/IP Access Control BoardUS$ 35 - 40MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Joney
Model Number
JYC-T2004B
remotely access control panel windows
Product Description
TCP/IP wiegand access control board
| Unit Size | 160mm *106mm |
| Unit Packing Way | Brown box |
| Unit Packing Size | 273mm*228mm*65mm |
| Accessories | User Manual, warranty card |
| 4 Door Network TCP/IP Wiegand Access Control Board Function Introduction | |
| Conventional Function | offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map ,patrol, meeting,const meal etc. |
| Professional function | for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation. |
| all-in-one-card management system | nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
| 4 Door Network TCP/IP Wiegand Access Control Board Parameter | |
| Communication | TCP/IP |
| English Software supportable database: | SQL |
| Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) |
| Quantity of Readers | 4 Pcs |
| Door Controlled | four |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°C-70°C |
| Operation Humidity | 10-90 % RH , No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | |
| Depand on network range | |

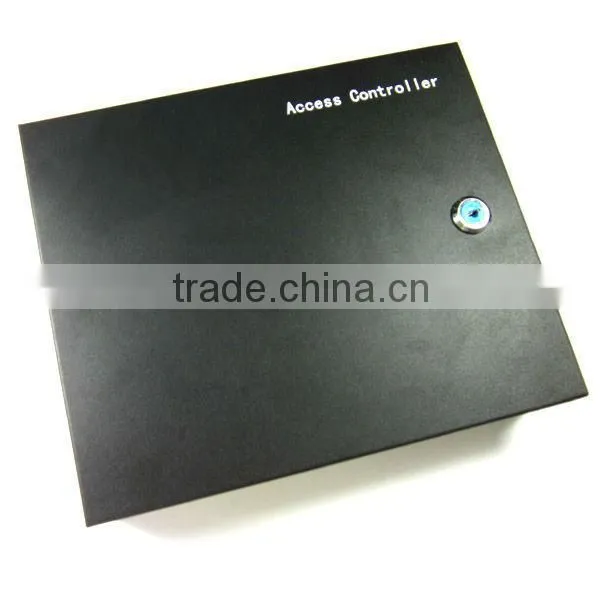

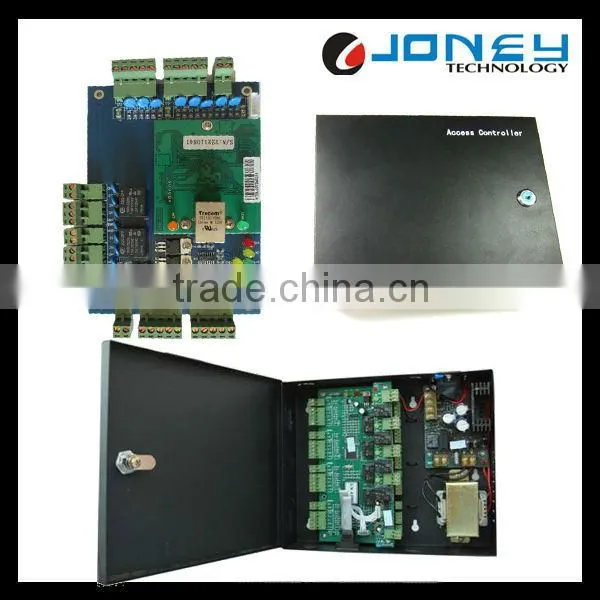

| Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
| Alarm for long time door open, ilegal break in, intimidate | Yes |
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm |
| Complsive open and close door at long time | Yes |
| Open door in remote distance | Yes |
| Inter block | No |
| Anti pass back and tail | Yes |
| Multi-card open door | Yes |
| Open long time at specified time | Yes |
| Electronic map | Yes |
| Urgency locking | Yes |
| First card unlocking | Yes |
| Unlock based on internal and external validation | Yes |
| Keypad (card+passwor, supper password) | Yes |

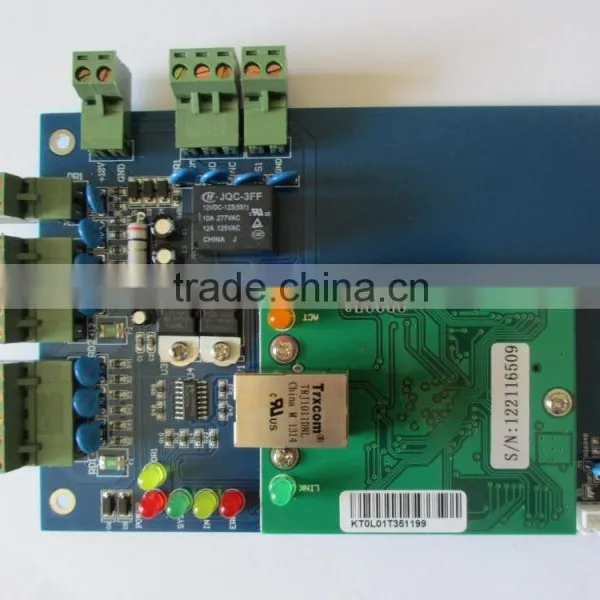

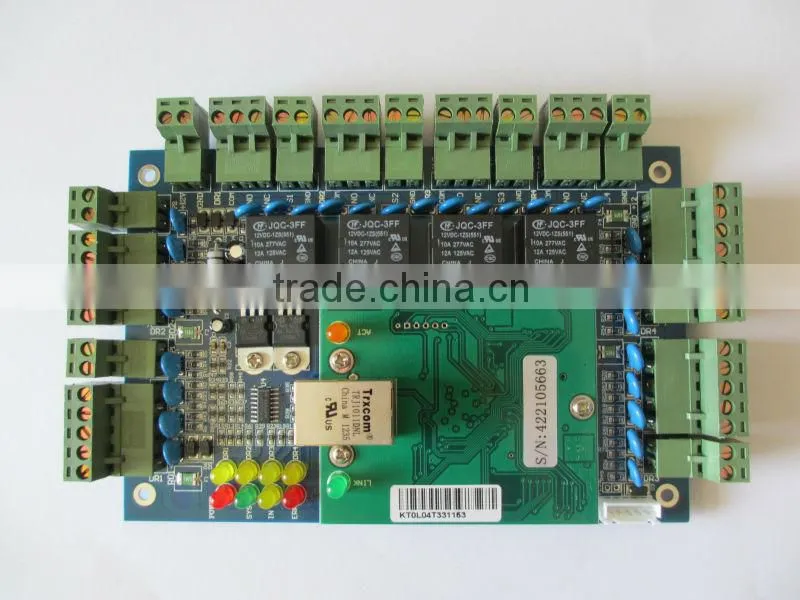

TCP/IP NET wiegand access control board

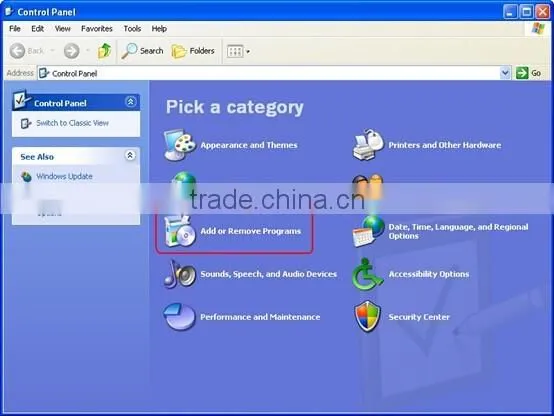

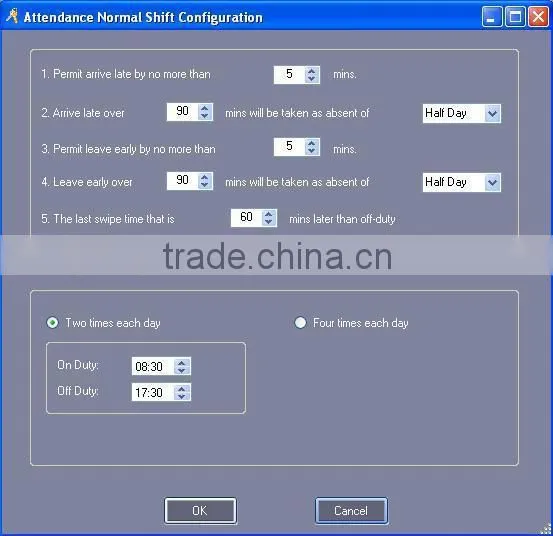

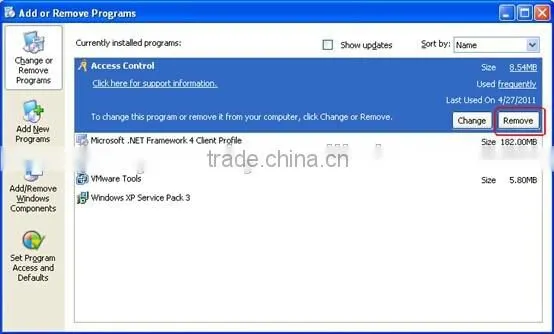

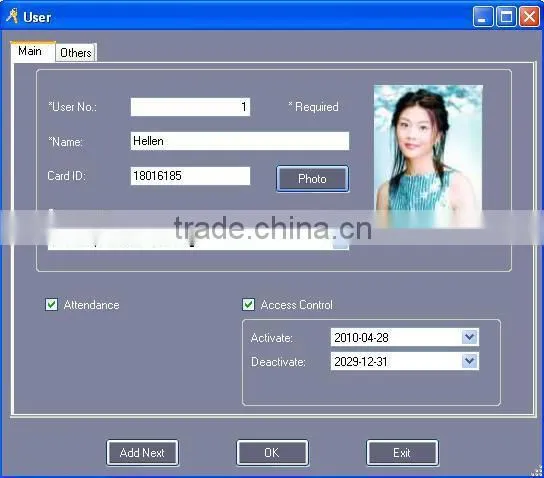

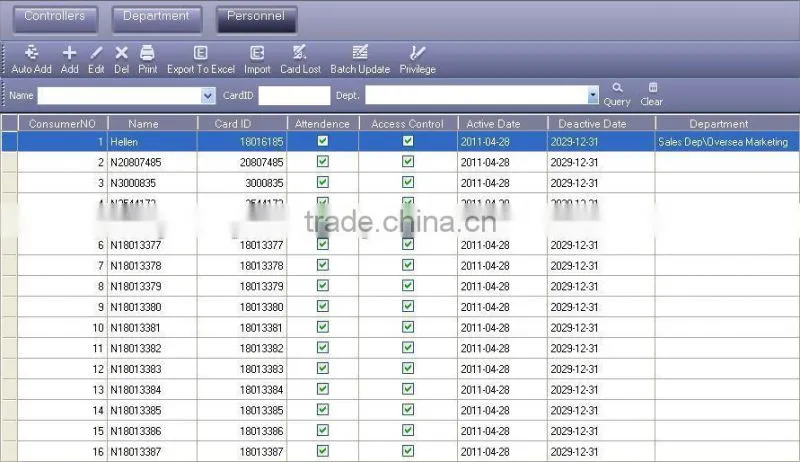

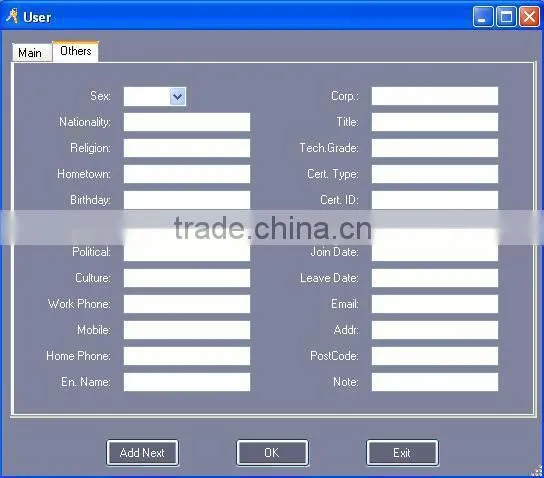

Software
TCP/IP NET Four door access control board Software
Choosen Joney, Choosen Professional!
Welcome to visit our website for detailed information

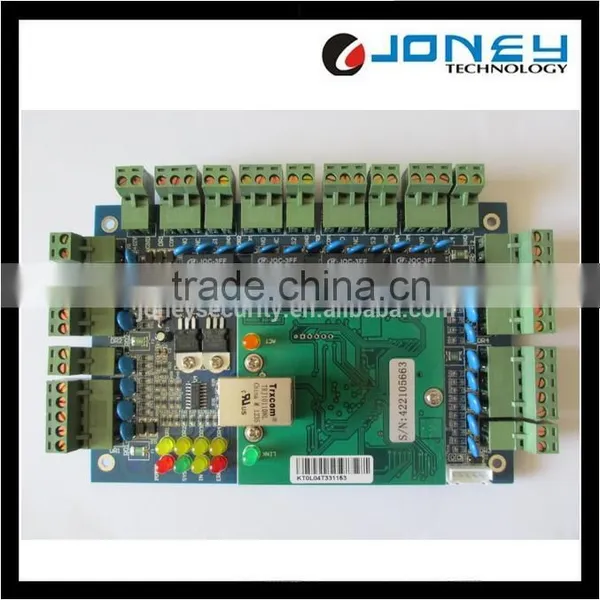

4 Door Network TCP/IP Wiegand Access Control Board
www.joneysecurity.en.china.cn
Service
Our Service
1.Reply your inquiry in 24 working hours
2.Customized requirement is available, OEM/ODM are welcome
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4.Special discount and protection of sales area provided to our distributor
Company and Products information related
Access control products: RFID reader, standalone access control, access control board,
finerprint access control and time attendance, facial device, wiegand access control board
