Home > Products > CCTV ACCESSORIES > 10 Inch Lcd Monitor With AV/BNC/VGA/TV Inputs

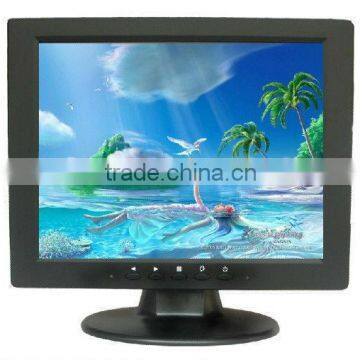

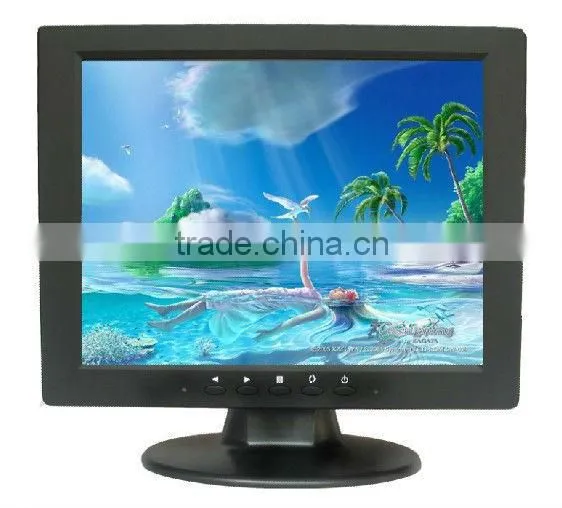

10 Inch Lcd Monitor With AV/BNC/VGA/TV Inputs
- shenzhen
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Joneytech | |
| Model Number | JY-100ALCD |
Product Description
Specifications
10 inch lcd monitor1.clear display
2.factory supply
3.max resolution"800*600

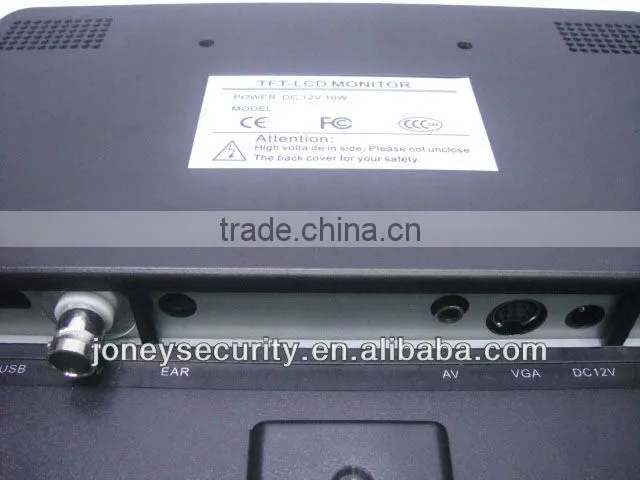

4.with BNC,VGA,TV,AV inputs
Model NO. | JY-100ALCD |
Panel size | 10 inch TFT-LCD |
Visual size | 210*160mm |
Standard Resolution | 800*600 |
Number of Colors | 16.2M |
Brightness | LCD panel:300cd/m2 |
Response time | 8ms |
View angle | Horizontal:160° |
Vertical:130° | |
Contrase ratio | 400:1 |
Video input format | (analog) RGB |
Connector | VGA (D-sub) |
Frequency | 30~80KHz/60~75Hz |
Power supply | External Power Supply:100 to 240V AC (DC 12V) |
Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C |
Operate relative humidity:20% to 80%; storage relative humidity:10% to 90% | |
Net weight | 2.5 Kgs/pcs |
Gross weight | 3.0 Kgs/pcs |
Power consumption | Max 30W |
Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
2) provide base to support the monitor | |
OSD control | AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
Certificate | CE, ROHS |
Warranty | 1 year,provide spare parts |
Monitor size (not include base) | 267*215*50mm |
Each unit box size | 333*135*295mm |
Package size | 6pcs in a carton,carton size:650*450*390mm |
Contact Us
- Shenzhen Joney Security Technology Co., Ltd.
- Contact nameSherry Wang Chat Now
- Phone86-755-23352837
- Address319-320, Floor 3, Yintian Huichao Bldg., Xixiang, Baoan Rd., Shenzhen, Guangdong, China
