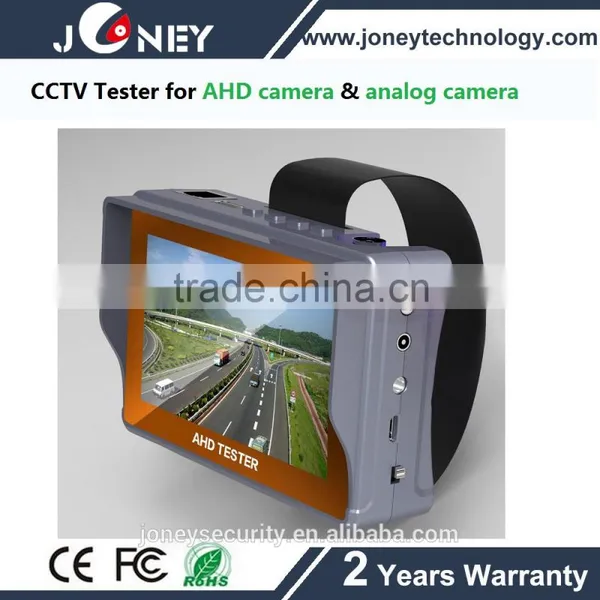

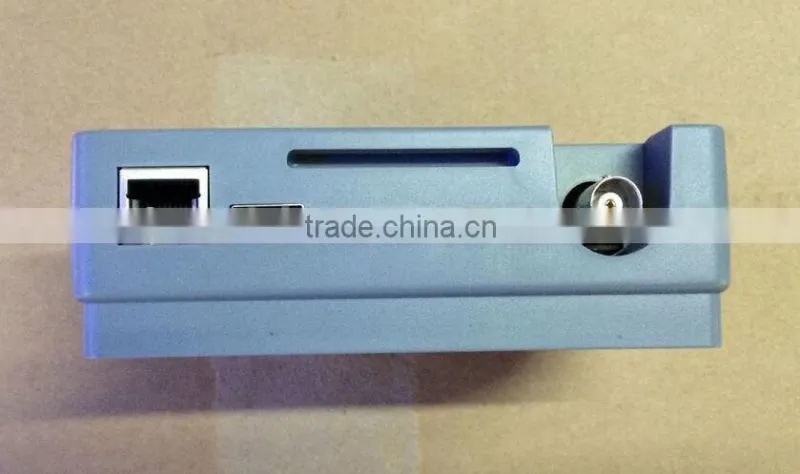

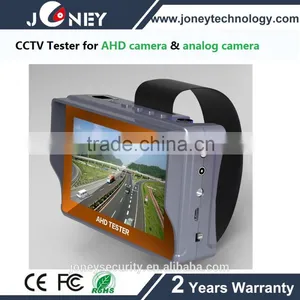

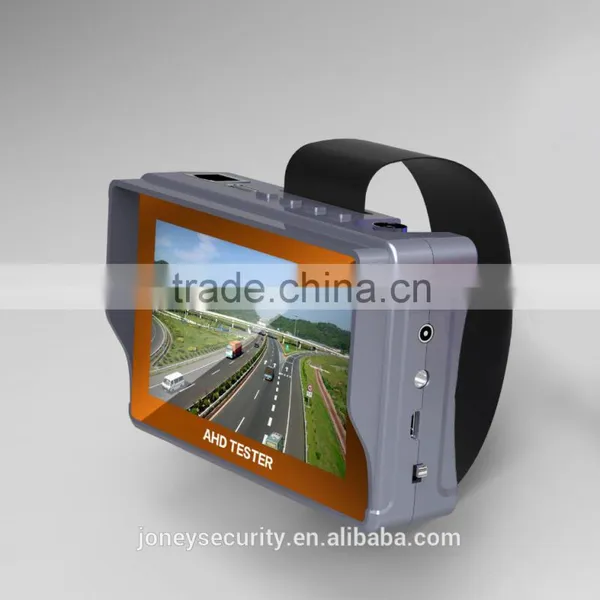

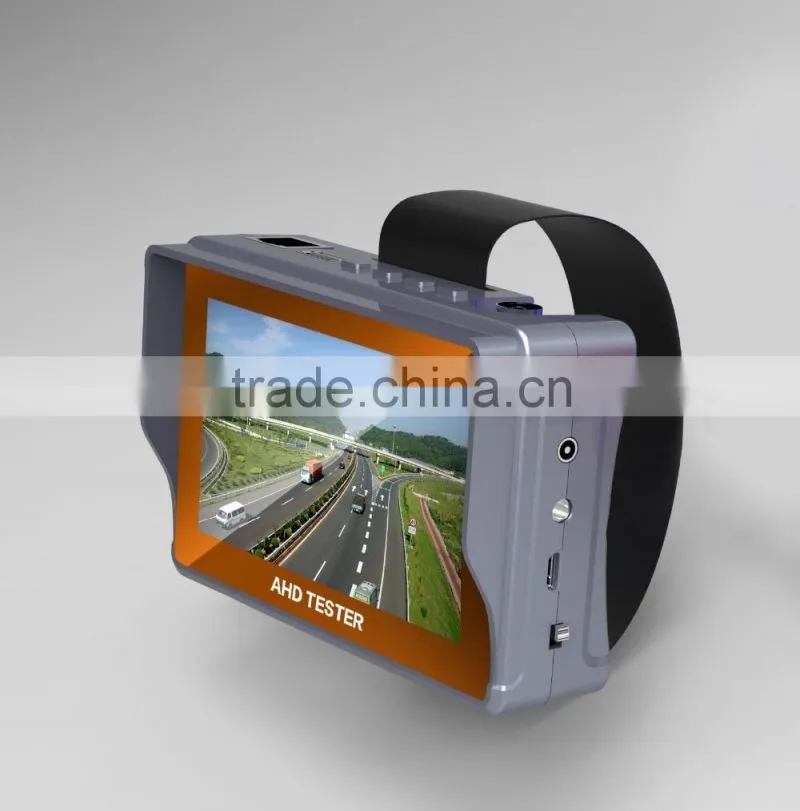

4.3inch LCD CCTV Tester,AHD Tester,analog Camera Tester
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney CCTV Tester
Model Number:
JY-AHD-043
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IP Joystick for ip Ptz Onvif ip PTZ ControllerNegotiableMOQ: 1 Piece -
720P 960P AHD and Analog HD Security CCTV AHD Camera TesterNegotiableMOQ: 1 Piece
-
NEW 720P 960P Camera Tester Cctv Tester AhdNegotiableMOQ: 1 Unit
-
7" Cctv Security Camera Tester Onvfi IP Camera CCTV TesterNegotiableMOQ: 1 Piece
-
AHD and Analog Hybrid Security CCTV AHD Camera TesterNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Joney CCTV Tester
Model Number
JY-AHD-043
NEW 720P 960P HD CCTV AHD Camera Tester
Product Description
cctv tester for AHD Cameres & Analog cameras.
Can not support 1080p AHD cameras models
(1) Seventh generation 4.3inch LTPS LCD screen.
User can check the details of camera video during the process of installation.
User can check the details of camera video during the process of installation.
(2) Equipped with 2600mAh Li-polymer battery, which has RoHS & CE certification.
Device can work 7 hours after a single charge.
12V 1A Output function can be helpful when no external power supply for the camera.
Device can work 7 hours after a single charge.
12V 1A Output function can be helpful when no external power supply for the camera.
Video System: NTSC/PAL Automatically recognize
Display screen: 4.3inches
Display screen Resolution: LCD480*272P resolution
Screen adjustment: Video display brightness, contrast saturation adjustable
Video input: 1 channel BNC Video IN
Display screen: 4.3inches
Display screen Resolution: LCD480*272P resolution
Screen adjustment: Video display brightness, contrast saturation adjustable
Video input: 1 channel BNC Video IN
12V power output 1A DC:Audio test
Input audio signal, and played on the internal speaker
Input audio signal, and played on the internal speaker
External power supply:DC 5V(1A)
Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge time: 4hours
Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge time: 4hours
Battery working time 8 hours
Power saving features:
Low power consumption, automatic power off, Real-time display of battery level
Language settings: English
Auto power off: Disable / 5-60 minutes
Working Temperature:-20℃---+70℃
Humidity:30%-90% Rh
Dimension:120mm x 80mm x 40mm,150g
Auto power off: Disable / 5-60 minutes
Working Temperature:-20℃---+70℃
Humidity:30%-90% Rh
Dimension:120mm x 80mm x 40mm,150g
Detailed Images
