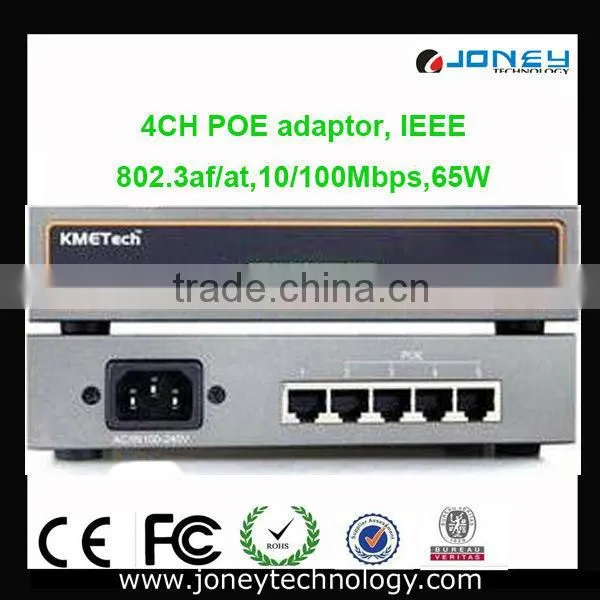

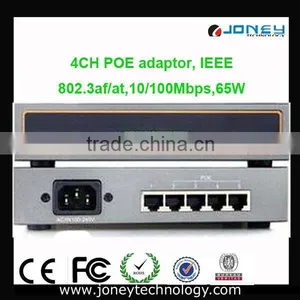

Help Center4CH POE Adaptor, Mega,IEEE 802.3af/at,10/100Mbps,65W(SPOE 04)
Related Products
-
3.5 Inch TFT-LCD Onvfi IP Camera /Analog Camera /WiFi /Sdi /HD CVI TesterUS$ 195 - 320MOQ: 1 Piece -
8 Channel POE Switch With 8 Poe PortsUS$ 102 - 105MOQ: 1 Piece
-
3.5 Inch Multi-function Cctv Tester Ipc Tester,ahd Camera Tester,cvi Camera TesterNegotiableMOQ: 5 Pieces
-
4.3inch LCD CCTV Tester,AHD Tester,analog Camera TesterNegotiableMOQ: 1 Unit
-
IP Joystick for ip Ptz Onvif ip PTZ ControllerNegotiableMOQ: 1 Piece
IEEE802.3af/at Compliant, End-Span/Midspan
Product Overview
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.
The 5-Port 10/100Mbps PoE+ Switch offers advance switching controls and provides power to network devices using Ethernet cables. This scalable and cost effective solution allows a managed network to efficiently expand to previously unattainable levels.
The feature rich 5-port switch offers advanced network management, Link Aggregation, Trunking and QoS technology to meet the accelerating demand for secure manageable networks. LED displays show device status for easy power management and troubleshooting. PoE technology conveniently eliminates the need to install networked devices, such as PSE5000 Series IP cameras and access points, near a power outlet, thereby reducing equipment and installation costs.
compatible to IEEE802.3af/at. It can power both existing
10/100Base-T network devices Wi-MAX and wireless IEEE 802.11n access points.
Ordering Information
Internal Power 30~65W, IEEE802.3af/at Series :
PSE-5302: 5-P FE switch w/ 2-P PoE (30 W)
PSE-5602T : 5-P FE switch w/ 2-P PoE (65W)
PSE-5604: 5-P FE switch w/ 4-P PoE (65W)
SPOE04 Features
l Up to 30W of Power on
l IEEE 802.3af/at Compliant with 2-event classification
l IEEE 802.3af/af backward compatible
l Compatible With All IEEE 802.3af or Legacy
l Safe: Low Power Devices Receive Only the Power They Need
l Safe and Reliable Power to WLAN Access Points
l Automatic Detection and Protection of Non–standard Ethernet Terminals
l Supports 10/100 Base-T applications
l Compact Design Fits Easily in WLAN Access
l Plug-and-Play no configuration required
l Internal power supply
l Easy installation and maintenance
complies to IEEE 802.3af/at PoE standard and is backward
Specifications
Pass Through Data Rates : 5-Port 10/100 Mbps
LED : Power, 10/100, PoE
Power over Ethernet Output
Pin Assignment and Polarity: Endspan:1/2 (+), 3/6 (–) ;Optional Midspan 4/5(+),7/8(–)
Output Power Voltage: 54Vdc
User Port Power: >16~30Watts /3~600ma
Total Power: PSE53XX / 35W , PSE56XX/ 65W
Input Power AC Input Voltage: 100 to 240 Vac
AC Frequency: 50 to 60 Hz
Dimensions (W x D x H): 180 mm x 113 mm x 36mm
Net.Weight :0.65Kg
SIZE 200*150*50mm
CTN SIZE:450*320*100 (10PCS) 10KG
Indicators: System Indicator: AC Power (Green)
User Indicator: Channel Power
Connectors: Shielded RJ-45, EIA 568A and 568B
Environmental Conditions :
Operating Ambient Temperature: -10 to 45°C
Reliability MTBF: 296,000 hrs. @25°C
Thermal Rating 27 BTU/Hr (@240VAC)
Warranty 1-year
Regulatory IEEE 802.3at, IEEE 802.3af,
Compliance RoHS Compliant , CE ,FCC
Safety Approvals EN 60950:2006
