Help CenterVortex Gas Pump
US$ 27 - 110
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GEBIAO
Model Number:
GB-90 B-370 GB-750 GB-1100 GB-2200 GB-3000 GB-4000 GB-5500 GB-7500
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
GEBIAO
Model Number
GB-90 B-370 GB-750 GB-1100 GB-2200 GB-3000 GB-4000 GB-5500 GB-7500
Theory
Vortex Pump
Structure
Single-stage Pump
Usage
Air Pump
Power
Electric
Standard or Nonstandard
Standard
Pressure
High Pressure
Features for air pump
- motor :Europe standard ,with CCC certificate
- bearing purchased from NSK,japan ,FAG German,can be installed in front or build-in
- shaft sealing :free maintenance fluorine rubber or skeletion-type.
- protection grade IP54 and IP44,insulation grade B
- vibration counteract plate
- Dia-casting aluminum ,speed up hot emissions,less weight,fashion style.
- only wearing with bearing ,more reliable
- aluminum impeller ,side channel
- no oil,no pollution

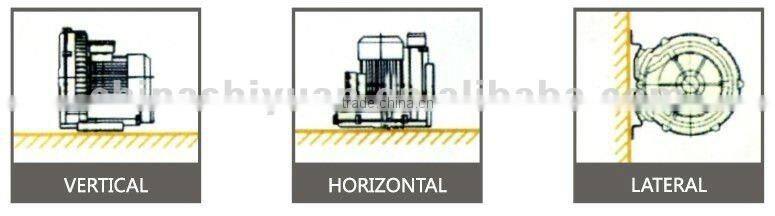

- can installed vertical ,horizontal and lateral
- anticorrosive coating inside the water pump adds to lifespan
Applications
to be used in paper cutters. filter cigaretter shapers .pulverizing plater makers.liquid-canning machines.electric welding equipment.film machinery .plate makers .liquicanning machines, electric welding
equipment .film machinery .paper .transporting .clothes dry-cleaning .rinsing .air cleaning .pneumatic converying .material conveying .collection and so on.
| Type | voltage | Current |
freque ncy |
max.air pressure | max.flux |
max. vacuum degree |
power | rotate speed | noise | G.W. | box up volumn |
| V | A | HZ | kPa | m³/h | -kPa | kw | r/min | dB (A) | kg | cm³ | |
| GB-90 | 220 | 1.09(1.31) | 50(60) | 6.5(7.5) |
30(36) | 4.5(5.5) | 0.09(0.11) | 2800(3400) | <60 | 4.9 | 22*20*22 |
| GB-120 | 220 | 1.38(1.62) |
50(60) | 6.5(7.5) |
30(36) | 4.5(5.5) | 0.12(0.15) | 2800(3400) | <60 | 5.0 | 22*20*22 |
| GB-180 |
220 380 |
1.89(2.27) 0.53(0.66) |
50(60) | 8.5(10) | 40(48) | 6.0(7.0) | 0.18(0.22) | 2800(3400) | <60 | 7.4 | 24*21*23 |
| GB-220 |
220 380 |
2.01( 2.42 0.61(0.73) |
50(60) | 8.5(10) | 40(48) | 6.0(7.0) | 0.20(0.24) | 2800(3400) | <60 | 7.5 | 24*21*23 |
| GB-250 |
220 380 |
2.5(3.0) 0.72(0.97) |
50(60) | 12(14) | 48(57) | 8.5(10) | 0.25(0.30) | 2800(3400) | <60 | 8.5 | 28*27*27 |
| GB-370 |
220 380 |
3.5(4.2) 1.05 (116) |
50(60) | 16(19) | 60(70) | 11(13) | 0.37(0.44) | 2800(3400) | <60 | 12.1 | 28*27*27 |
| GB-550 |
220 380 |
4.8(5.76) 1.45(1.74) |
50(60) | 20(24) | 110(132) | 16(19) | 0.55(0.66) | 2800(3400) | <60 | 16.2 | 30*29*30 |
| GB-750 |
220 380 |
6.3(7.56) 1.81(2.37) |
50(60) | 21(25) | 120(145) | 17(20) | 0.75(0.9) | 2800(3400) | <60 | 16.6 | 33*32*34 |
| GB-1100 |
220 380 |
8.7(10.44) 2.52(3.42) |
50(60) | 25(30) | 170(205) | 20(24) | 1.1(1.3) | 2800(3400) | <60 | 24 | 37*37*38 |
| GB-1500 |
220 380 |
11.8(14.16) | 50(60) | 26(31) | 180(215) | 21(25) | 1.5(1.8) | 2800(3400) | <60 | 25.2 | 37*37*38 |
| GB-2200 |
220 380 |
8.52(10.22) 4.92(5.91) |
50(60) | 36(43) | 210(250) | 26(31) | 2.2(2.6) |
2800 (3400) |
<70 | 35.3 | 42*40*43 |
| GB-3000 |
220 380 |
11.07(13.29) 6.39(7.67) |
50(60) | 37(44) | 230(276) | 27(32) | 3.0(3.6) | 2800(3400) | <70 | 36.5 | 44*44*45 |
| GB-4000 | 380 |
8.17(9.8) | 50(60) | 38(45) | 250(300) | 28(33) | 4.0(4.8) | 2800(3400) | <70 | 39 | 47*46*50 |
GB-5500 |
380 | 11.1(13.4) | 50(60) | 42(50) | 430(516) | 32(38) | 5.5(6.6) | 2800(3400) | <70 | 94 | 52*52*52 |
| GB-7500 | 380 | 15(19.74) | 50(60) | 45(52) | 450(540) | 35(42) | 7.5(9.0) | 2800(3400) | <70 | 104 | 52*52*52 |
4
