Vortex Gas Pump
mechanical construction for air pump
1).motor : Europe standard ,with CCC certificate
2)protection IP54, IP44 ,insulation grade B
3)shaft seal :free maintenance fluorine rubber or skeletion-type
4)casing :split-type of pump casing
5)muffler :both vibration counteract and built-in muffler to lower noisy
6).bearing :purchased from NSK .JAPAN.FAG GERMAN.,can be installed front or build-in
7)aluminum impeller .side channel
8).dia-casting aluminum,speed up hot emissions ,less weight ,fashion style,
9).vibration counteract plate

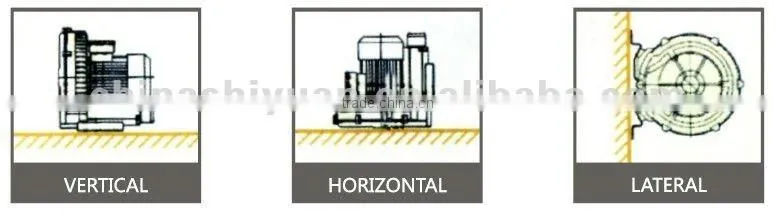

10) can installed vertical .horizontal and lateral
application :
to be used in paper cutters ,filter cigarette shapers ,pulverizing driers,net printers .photo plate makers ,liquid- canning machines,electric welding equipment ,film machinery ,plate makers .liquicanning machines,electric welding equipment ,film machinery ,paper transporting .colthes dry-cleaning ,rinsing ,air cleaning ,pneumatic conveying ,material converying ,collection and so on .
| Type |
Voltage (V) |
Current (A) |
Freque ncy (HZ) |
Max.air pressure (kPa) |
Max.flux (m³/h) |
Max. vacuum degree (kPa) |
Power (KW) |
Rotary speed r/min |
Noise dB (A) |
G.W. KG |
Box up volumn (cm³) |
| GB-3000S |
220
380 |
11.07(13.29)
6.39 (7.67) |
50
(60) |
37
(44) |
230
(276) |
27
(32) |
3.0
(3.6) |
2800
(3400) |
<70 | 36.5 | 44*44*45 |
