Help CenterPE Spiral Hose Wrap / Spiral Wrap / Hose Protector Wrap Making Machine Production Line
Related Products
-
LDPE High Density Spiral Protect Pipe / Cable Protection Making Machine Production LineUS$ 45,000 - 65,000MOQ: 1 Set -
PP HDPE High Density Spiral Protecting Wrapping Hose Equipments Producing MachinesUS$ 45,000 - 65,000MOQ: 1 Set
-
Machine for Spiral Cable Wrap / Cable Zipper / Cable Management / Cable TidyUS$ 45,000 - 65,000MOQ: 1 Set
-
Cable Sleeving Wires Organizer Making Machine Extrusion LineUS$ 45,000 - 65,000MOQ: 1 Set
-
Plastic Computer Cable Manager / Cable Tidy / Cable Zipper / Cable Cover Extrusion Machine Production LineUS$ 45,000 - 65,000MOQ: 1 Set
Specifications
PE spiral hose wrap/hose protector wrap making machine production line1. diameter range:5-250mm, >250mm should be customized.
PE spiral hose wrap / spiral wrap / hose protector wrap making machine production line
1. Single screw extruder, possessing effective plasticizing effect and high extrusion speed which is especially designed for the processing of PE material.
2. The special detached type compounding screw and die head with spiral structure & reasonable channel.
3. Unique calibration and cooling mode is capable of producing pipe with diameter from φ50 to φ200mm, production speed is up to 0.4~1.5m/min.
4. With co-extrusion technology, multi-layers spiral fiber-strengthened pipe can be extruded. Recycled materials can be used in the production.
5. Optimum spiral copper sizing sleeve, its entrance is equipped with pre -cooling and powerful vacuum device.
Stainless steel cooling water tank is three-dimensionally adjustable, longitudinal moved by motor.
6. High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.
Technique parameter of spiral hose protector/spiral wrap/spiral hose wrap machine:
Extruder |
2 set |
Pipe forming machine |
1set |
Spray-type cooling device |
1set |
Control cabinet |
1set |
Technical parameters
Model |
LGSJ-45 |
LGSJ-65 |
Extrude |
SH-SJ45×25 |
SH-SJ65×28 |
Diameter range |
25-50mm |
64-150mm |
The installed capacity of |
31kw |
58.6kw |
Average energy consumption |
21.7kw |
35.1kw |
Overall dimension (L × W × H) |
15000×4000×1500mm |
18000×5000×2000mm |
Total weight |
About 3ton |
About 4ton |

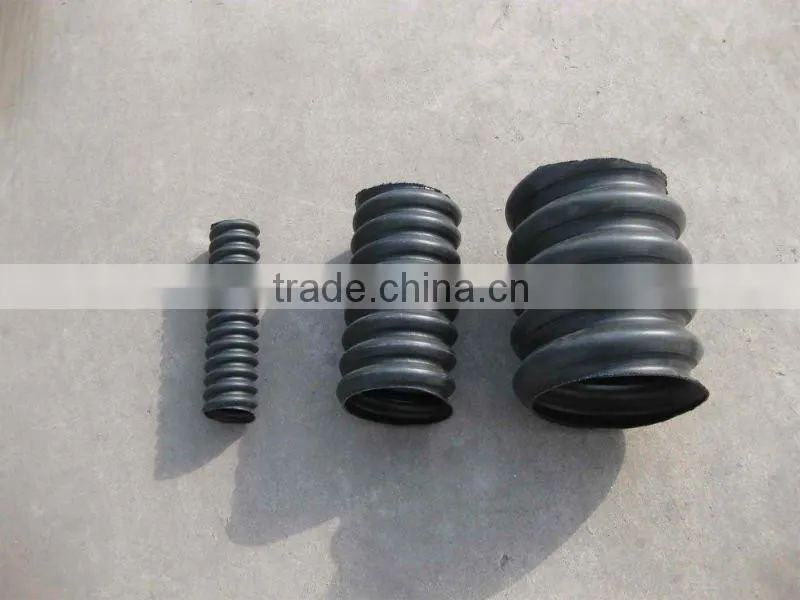

Pictures of spiral hose wrap/hose protector wrap products:

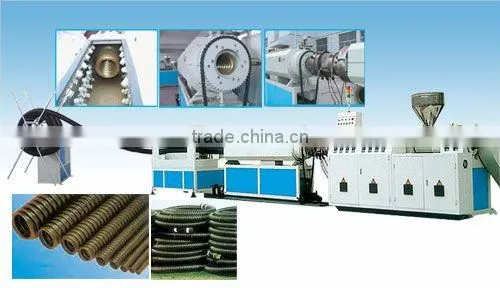

Pictures of spiral hose wrap/hose protector wrap machine:
