Specifications
PP HDPE spiral protecting pipe machine1. Total weight: 4 tons
2. Dia: 50-200
3. Production speed: 0.4~1.5m/min
4. Qingdao

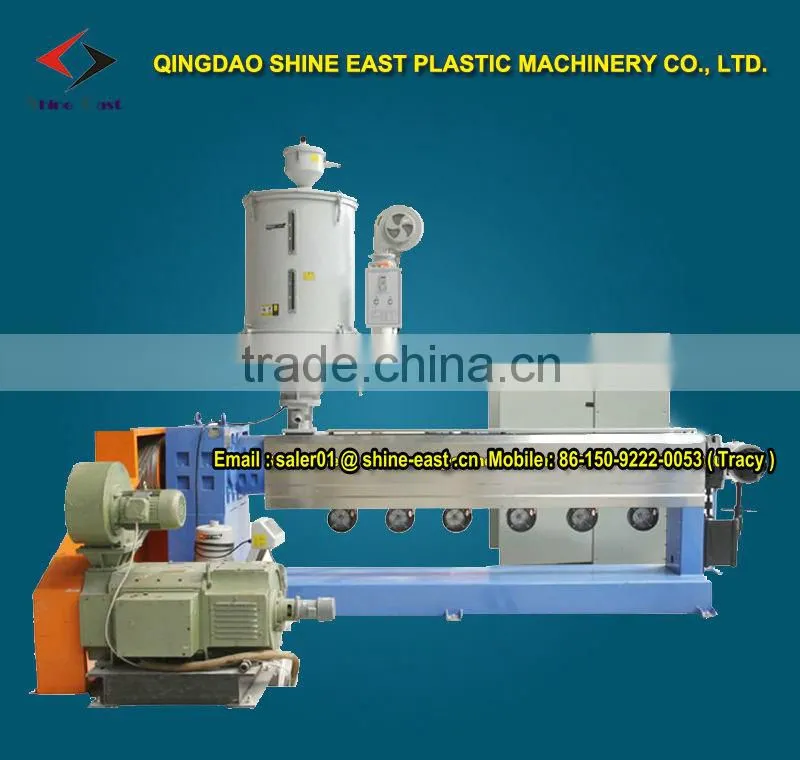

PP HDPE high density spiral protecting pipe making machine production line
1. Single screw extruder, possessing effective plasticizing effect and high extrusion speed which is especially designed for the processing of PE material.
2. The special detached type compounding screw and die head with spiral structure & reasonable channel.
3. Unique calibration and cooling mode is capable of producing pipe with diameter from φ50 to φ200mm, production speed is up to 0.4~1.5m/min.
4. With co-extrusion technology, multi-layers spiral fiber-strengthened pipe can be extruded. Recycled materials can be used in the production.
5. Optimum spiral copper sizing sleeve, its entrance is equipped with pre -cooling and powerful vacuum device.
Stainless steel cooling water tank is three-dimensionally adjustable, longitudinal moved by motor.
6. High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.
Extruder |
2 set |
Pipe forming machine |
1 set |
Spray-type cooling device |
1 set |
Control cabinet |
1 set |
Technical parameters
Model |
LGSJ-45 |
LGSJ-65 |
Extruder |
SH-SJ45×25 |
SH-SJ65×28 |
Diameter range |
25-50mm |
64-150mm |
The installed capacity of |
31kw |
58.6kw |
Average energy consumption |
21.7kw |
35.1kw |
Overall dimension (L × W × H) |
15000×4000×1500mm |
18000×5000×2000mm |
Total weight |
About 3 ton |
About 4ton |

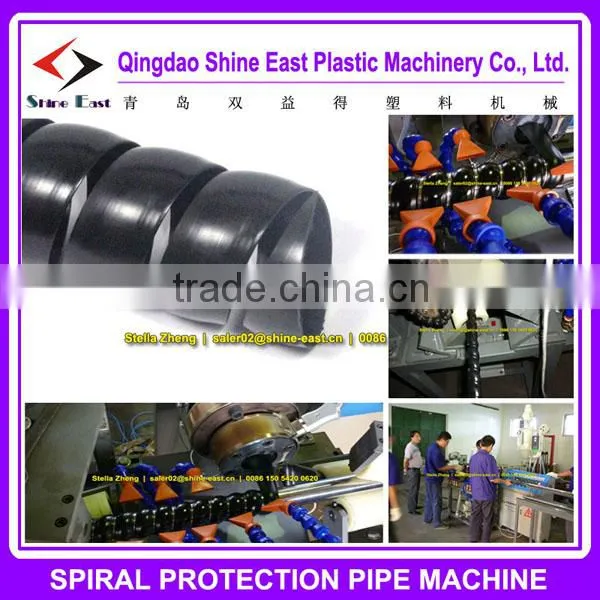

Products of spiral protecting pipe

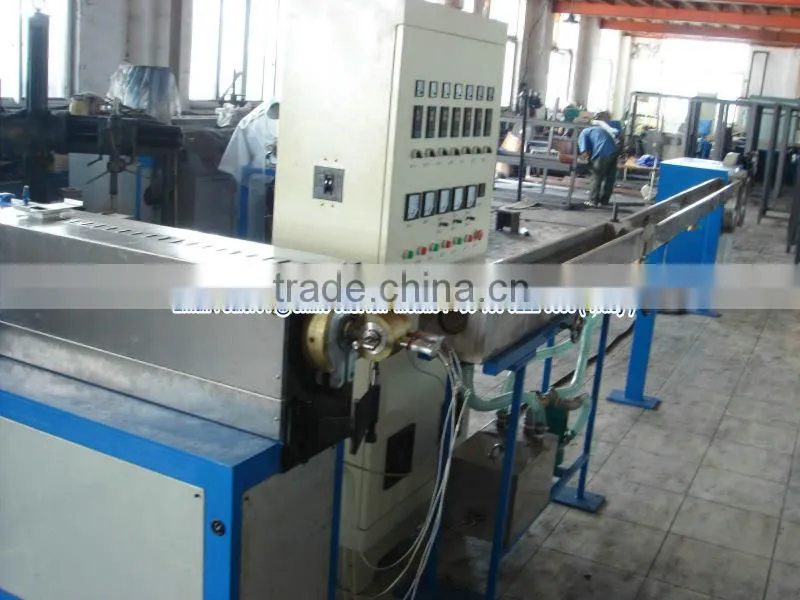

Production line of pp hdpe spiral protecting pipe
