Specifications
wood-plastic profile extrusion machine:1.anti-corrosion,anti-acid,anti-alkali
2.water proofed,moth proofed
3.qingdao port

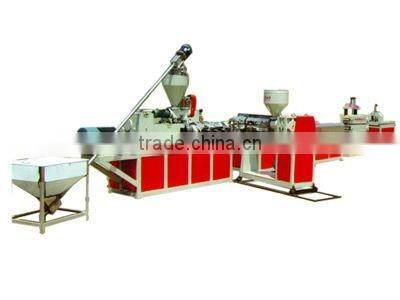

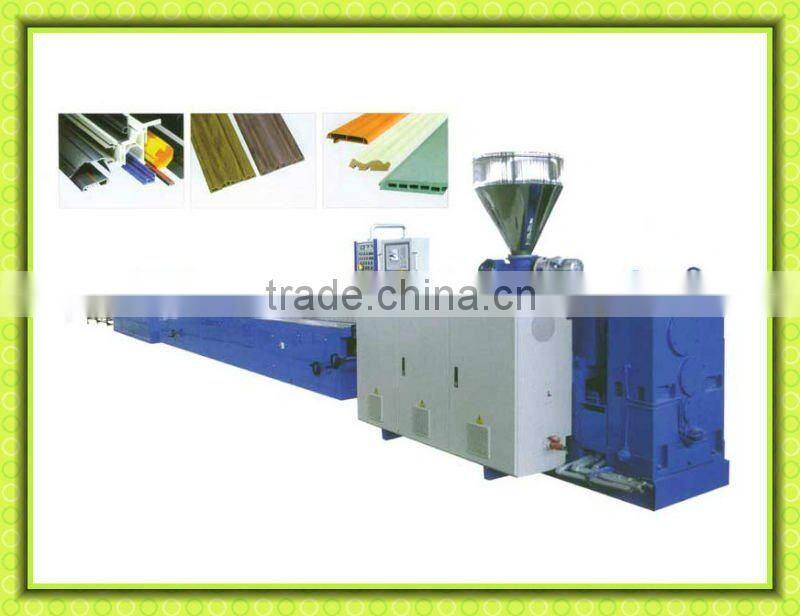

plastic wood plastic profile making machine / wpc machine
After mixing with powder,the material can be directly used to extrude plywood profile,
Suitable material:PE,PP+Wood powder,PVC+Wood powder.
Can be used to product salver ,packaging box boare and decorative floor,evt.
(1)Precise designed screw thread lines ensure material with multi profile in good flow melting condition and the PVC profile quality in smoothly ;

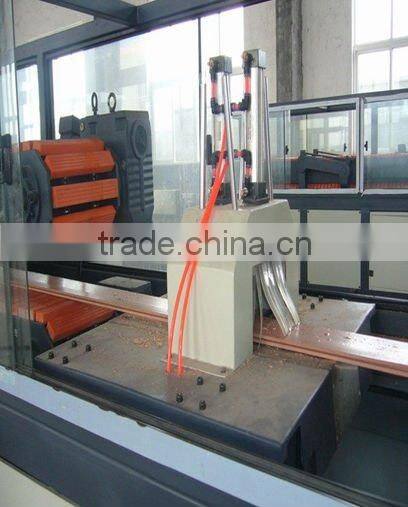

(2) Vacuum Calibrating table especial designed enlarged Centrifugal pump
cooling system and ensure the PVC profile in good smooth condition .
(3)The haul off unit adopted the unique lift technique by Friend Company. it work stable and reliable.
(4) Cutting the profile length by automatic counting for 4m.6m,8m 12m. etc.
with PVC powder and scraps suction collect device. ,
(5) Multi-holes profile and section profile available.
(6) PLC/ PCC electrical control system for the customer selection.
wood plastic profile machinery, processing material PVC, PP, PE with plant fibre. One of best plastic machine seller.

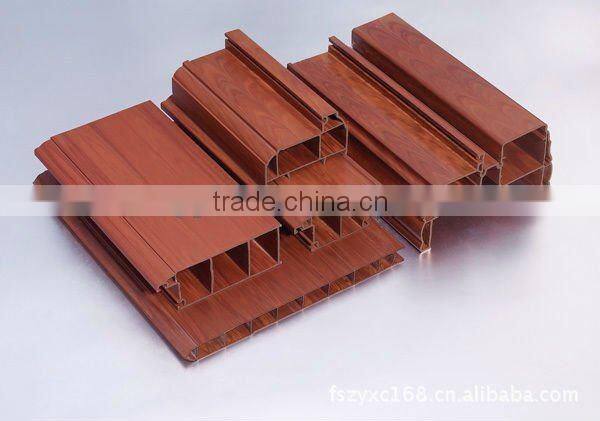

As one of the best wood plastic profile machinery (WPC machine) manufacturer in China, we've supplied to different countries. WPC profile from our machine has following features:
green environment protection, waterproof, dampproof, anti-corrosion, rot-resistence, ametabolic and good fire-retardant.
Meanwhile, it can be used after recycling, and has been widely used in fields of floor, guard bar, tray, packing cases, partition board, window and door sheath, skirting line, etc.
Main Technical Specification | |||
Model |
JG-MSX51/105 |
JG-MSX65/132 |
|
Screw dia. |
mm |
Φ51/105 |
Φ65/132 |
Screw quantity |
Piece |
2 |
2 |
Screw speed |
r/min |
1-40 |
1-38 |
Main extruder power |
KW |
15 |
37 |
Heating power(approx) |
KW |
8 |
24 |
Output(approx) |
Kg/h |
50-150 |
80-200 |
Main Technical Specification of | |||
Model |
YF180 |
YF240 |
|
duct side |
mm |
180 |
240 |
Draw-off height |
mm |
150 |
150 |
Draw-off force |
KN |
2 |
2 |
Draw-off speed |
m/s |
0-5 |
0-5 |
Total power of auxiliary machine |
KW |
35 |
35 |
Cooling water consumption |
m³/h |
6 |
6 |
Compressed air pressure |
Mpa |
0.6 |
0.6 |
