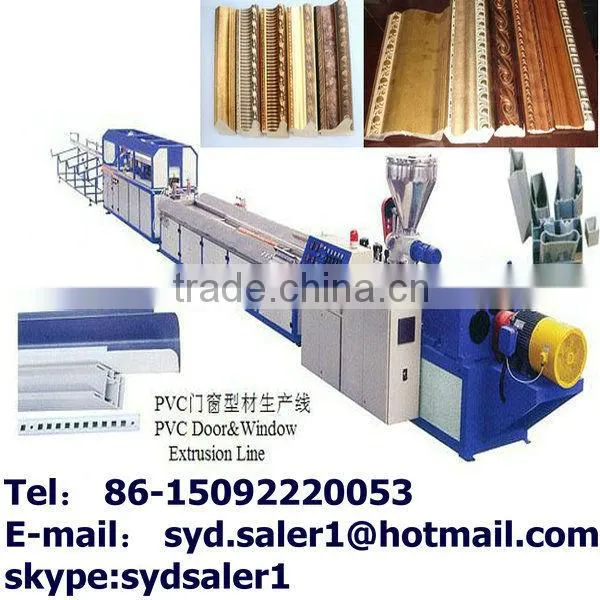

Wood Plastic foaming Photo Frame Production Line / wood frame making machine

Specifications

1, for WPC profile
2, Max.width 300mm
3, ISO9001 certified manufacturer
4, turn key project





PVC photo frame making machine







1. PVC decorative panel is made of polyvinyl-chloride,the process contain mix material,extrude,model,haul,printing and cut.







2 .it is primary used as decoration in ceiling,inner wall.







3 it possess advantages such as prevent moldy,spoil,moisty, burnt,paint free and easy to construct.







4. PVC siding wall decorative panel produced by the line is a new type decorative and fitment material







5.It can be used in hot or cold,dry or wet area, can bear long period irradiation of ultraviolet radiation and bad weather such as gale and rainstorm.







PVC photo frame making machine datas:







Main Material	PVC & Calcium
Certificates	ISO 9001:2008
PVC Ratio	35%---70%
Thickness	4.5mm, 5.5mm, 6mm, 6.5mm, 7mm, 7.5mm,8mm, 9mm, 10mm, 12mm
Width	180mm,200mm,250mm, 300mm
Length	As per customer’s requirements
Colors & Patterns	Diversified color and pattern
Surface Treatment	High Glossy Printing/Transfer Printing
Application	This kind of PVC panels was widely used in the indoor walls and ceiling decoration not only in the home but also any public places.
Features	1. anti-oxidation, anti-bacterial, anti-aging; 2. Waterproof, moisture-proof, fireproof; 3. High intensity, difficult to discolor; 4. Easy to install, maintenance, and clean; 5. Environmental and healthy; 6. Vivid surface patterns, which looks more elegant and style; 7. Various colors and patters provided, which can meet all the requirements of different customers.







PVC photo frame making machine datas lists:







Name	Quantity
Loader and dryer	1 set
SJSZ65/132 extruder	1 set
Mould and calibrating	1 set
Vacuum calibrating table	1 set
Haul off machine	1 set
cutter	1 set
stacker	1 set







































PS Foaming profile machine



Our Foam PS frame profile production lines can make plastic photo frame profiles which can replace the tradional wooden frame profiles, the costs are much lower and the quality is much better than wooden profiles. The main raw materials are recycled PS, mixing with little some other additives in different formulas, this can get different quality profiles for various application, adopting SJBZ low foam technology which can save more materials cost in production.

Mail technical parameters:

Production speed(m/min)	2-6
Power(kw)	~105
Dimension(m)	32×1×2



 You can choose single screw extruder:



Extruder	SJ45/25	SJ50/25	SJ65/25	SJ75/25	SJ90/25	SJ120/25
Main motor	5.5KW	7.5KW	11KW	22KW	37KW	55KW
Heating power	8KW	10KW	15KW	20KW	30KW	50KW
