Specifications
Roof Sheet / Plate / Tile Making Machine -- Plastic Machinepact struction
2.energy saving
3.esay operation
Contact: Stella
Skype: sydsaler2
Mobile: +86 15054200620
Email: saler02(at)shine-east(dot)cn
Plastic PVC Roof Tile Machine
Introduction:
The plastic machine is composed of SJSZ-65*22 conical double-screw extruder with corresponding forming machine,haul off,cutter as auxiliary machines, could continuously produce UPVC colorful weather-resistance and flame-retardance plastic corrugated sheet; if changing related parts,the line could produce plastic plain board and grid board, etc. The line is of great plasticization,stable performance, compact structure, high automation,easy operation and so on which is the ideal plastic machine of construction manufacturer.
The plastic machinery consists of:
1) Extruder: single-screw extruder PP / PE / PC, conical twin-screw extruder PVC.
2) T die head: The hanger-type flow structure, a suitable compression ratio to ensure the stability of material flow evenly.
3) Calibrating molds: rational design, the unique design of the cooling flow to ensure the accuracy of products,
4)Hauling machine: roller traction, using high quality NBR rubber roller, pneumatic adjustment, and frequency speed adjustment.
5) Cutting Machine: Knife cutting, fast, good accuracy.
The Main Technique Parameter
Host Model |
SJSZ-65 |
SJSZ-80 |
|||
The die shape |
Coat hanger style flat plate die |
Cooling die dimensions |
1300mm 600mm |
Hauling power |
1.5KW (frequency conversion)
|
The forming unit |
|
Cooling means |
water cooling |
Cutting means |
Shear style (pneumatic) |
Big wave |
R=15h=16.5 wave distance
63mm Wave distance |
Hauling velocity |
0.5-5m/min |
Cutting follow distance |
500mm
|
Small wave |
R=9h=8 wave distance 36mm Wave distance
|
Hauling roller length |
1300mm |
Work pressure |
0.4-0.6 MPa |

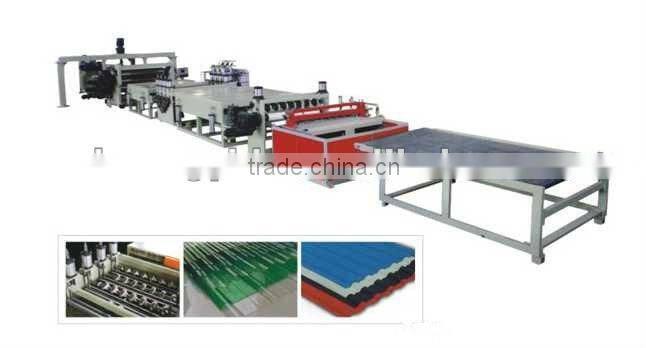

PVC Wave Plate Plastic Machine is comprised by a twin conical screw extruder and corresponding wave plate forming machine,etc
Qingdao Shine East Plastic Machinery Co., Ltd is a professional supplier of various plastic extrusion machines.
Our company is cooperating with many universities to develop the urgently needed plastic machine. It also absorbs advanced technology from abroad to achieve the purpose of supplying complete machine and technology.
PVC/PC Wave Plate And Glazed Wave Plate Trapezia-shaped Plate Production Line
The unit is comprised by a twin conical screw extruder and corresponding wave plate forming machine, tractor and cutting machine, can be used for continuously produce structural season resistance UPVC color block igniting plastic cement wave plate, if replacing the relevant component, the line can produce the chequer plank, possess steady molding performance, tight structure, high automation degree
