Specifications
eps foaming board machine1) Strict Quanlity Control
2) High price-performance
3) Easy to operate
EPS foam board machine production line - Foam Machine
A. Main features of eps block molding equipment.
1.It is welded by high-quality shape steel and treated in an effective way which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
2. The eps foam machine adopts PLC and touch screen for automatic mould opening ,mould closing ,material feeding, steaming, temperature keeping, air cooling, de-moulding and ejecting;
3. The surface of the mould is made of special aluminum ally which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.
4.Adopting advanced moulding technique, the machine is applicable to produce blocks of high-density and low-density and can ensure same quality of inside and outside block.
Technique Parameter:
Item |
Unit |
SYD-2000 |
SYD-3000 |
SYD-4000 |
SYD-6000 |
SYD-8000 |
Mould chamber internal size |
mm |
2040x1020x530 |
3060x1250x630 |
4080x1250x630 |
6100x1250x630 |
8160X1250X630 |
Mould chamber volume |
M3 |
1.10 |
2.41 |
3.21 |
4. 82 |
6.43 |
Product density |
Kg/m3 |
4-45 |
4-45 |
4-45 |
4-45 |
4-45 |
Product efficiency |
Piece/h |
2-9 |
2-9 |
2-9 |
2-9 |
2-9 |
Steam pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Compressed air inlet diameter |
mm |
80 |
80 |
80 |
80 |
80 |
Steam inlet diameter |
mm |
80 |
80 |
108 |
159 |
159 |
Power supply |
V |
380 |
380 |
380 |
380 |
380
|
Power |
Kw |
7 |
7 |
13 |
13 |
13 |
Dimension |
mm |
3600x2000x3000 |
4500x2150x2950 |
5500x2150x2950 |
7500x2150x2950 |
9500x2150x2950 |
Installed weight |
KG |
2800 |
4600 |
6000 |
9600 |
10600 |

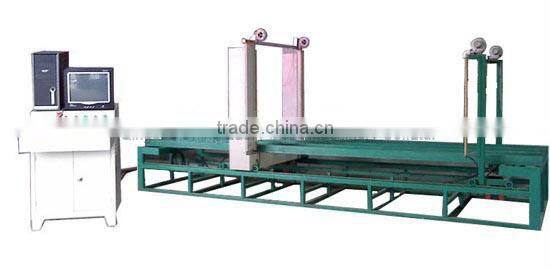

B. EPS Foam Cutting Machine
Adopts high quality rectangle steel pipe which features in reasonable structure, firm, high intension, without deformation. Equipped with horizontal, vertical and block cutting equipment. Stable movement, precise cutting size and adjustable. Realize three directions cutting.

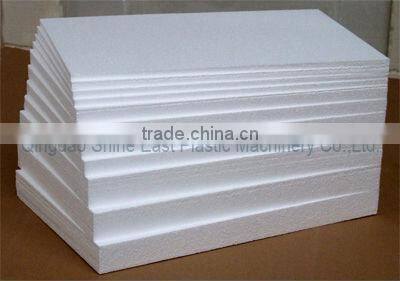

C. Samples showcase:
