PEX-AL-PEX Pipe Production Line, TIG Butt Welding / Mulit Layer Pipe Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, PEx-AL-PEX pipe
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Machine for Plastic Automatic Ball Pen Making Machine Barrel and Rifill ExtrusionUS$ 30,000 - 60,000MOQ: 1 Set -
Automatic Ball Pen Making Machine Made in ChinaUS$ 30,000 - 60,000MOQ: 1 Set
-
PEX-AL-PEX Pipe Production Line MachinNegotiableMOQ: 1 Set
-
PEX-AL-PEX Pipe Production Line, Ultrasonic Overlap Welding Multi Layered Pipe MachineNegotiableMOQ: 1 Set
-
Complete Line of PP Ball Pen Tube / Pen Refill Ball Pens Making MachinesNegotiableMOQ: 1 Set
Condition
New
Product Type
Other, PEx-AL-PEX pipe
Place of Origin
Shandong, China
Brand Name
Shine East
Model Number
multi layer pipe machine
Voltage
220-440V
Certification
CE ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Multi layer composite pipe with aluminum middle layer2.PEX-AL-PEX pipe machine
3.PERT-AL-PERT pipe machine
4.CE

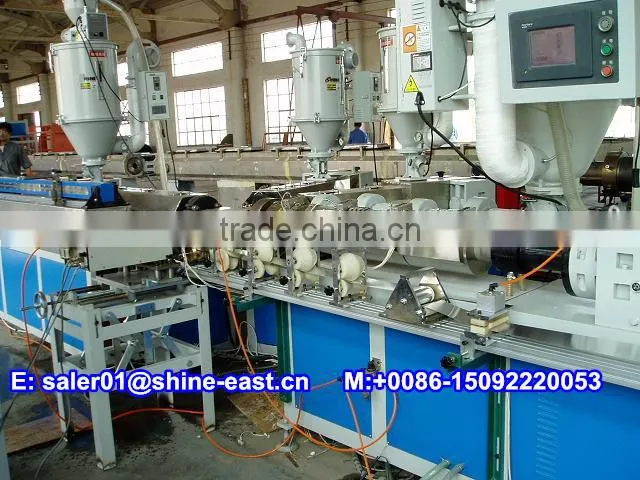

Shine East has placed great emphasis on its high speed butt welded PEX-Al-PEX multi-layer pipe technology.
Butt welded PEX-Al-PEX multi-layer pipe is a type of high performance pipe. Through advanced TIG welding, it has the most uniform and high strengh welding seams for the aluminum pipe. PEX-Al-PEX pipe share the benefit of both plastic and aluminum pipes, featuring corrosion-resistance, high temperature resistance, excellent barrier properties, easy installation, high reliability, and high pressure resistance. It is mainly used in transportation of hot and cold water, gas, as well as geothermal pipe layout. This kind of high performance pipe product has been recommended for use in European market for a long time.
Shine East, through years of research and refinement, has achieved the maximum stable yield in PEX-AL-PEX Pipe industry.
FEATURES
- Adopts high precision aluminum pipe passive forming molding method, to ensure stable pipe production and welding.
- Auto-synchronized control system to ensure the three haul-off machines running at same speed.
- Outer layer adhesive and plastic co-extrusion mould design to enhance the AL-PLAS adhesion.
- Include a cutting edge argon-arc butt-welding machine, a double welding gun, and a welding horn cooling device, which guarantee long-lasting performance.
- With only slight modification, this pipe extrusion line is also capable of producing PPR-AL-PPR Butt-welded pipes and RPAP5 pipes. This gave our clients great flexibility and increased their return from investment.
- Duraline’s Butt-Welded PEX-AL-PEX Pipe Production line incorporates a Programmable Logic Controller (PLC) system and a touch-screen based Human Machine Interface (HMI) for the entire pipe extrusion line, making it easier for our clients’ employees to operate. It also realize auto-synchronization across various functions, helping to streamline management tasks and ultimately realize our clients’ production goals through better management and quality control.
SPECIFICATIONS
| Type | Pipe Size (mm) |
Max. Speed (meter/min) |
Total Power (kw) |
Total Length (m) |
| DLAP-BW32 | 16~32 | 18 | 260 | 56 |
| DLAP-BW32H | 16~32 | 30 | 300 | 80 |
| DLAP-BW63 | 40~63 | 8 | 300 | 60 |
| DLAP-BW110 | 75~110 | 3 | 340 | 85 |
| DLAP-BWR63 | 20~63 | 15 | 300 | 65 |
| DLAP-BWR110 | 75~110 | 2 | 360 | 85 |
