Specifications
Hot Dip Galvanized cable basket tray Specifications1. All fixing available
2. Easy installation
3.UL,CE,CUL
INTRODUCTION OF VICHNET (wire mesh cable tray)
* Vichnet is a telecommunication product manufacturer specializing in producing wire mesh cable tray.
*We are based in Ningbo, China, and we have a professional team to devoted to designing and producing reliable wire mesh cable trays that meet the needs of our global customers. Wire mesh cable tray
*Our wire mesh cable trays are currently being used in over 100 countries.
*Our wire baskets products have passed various SGS and TUV tests, and hold UL,CUL and CE certifications, with our GMC certifications.
*Vichnet is a qualified wire mesh cable trays supplier for even the most rigorous projects. Our wire mesh cable tray are used by many international companies, including GOOGLE, MICROSOFT DCS, and SIEMENS and GE.
*At Vichnet, we do our best to win the satisfaction of our customers.
HIGHLIGHTS OF VICHNET for hot dip galvanized wire mesh cable trays
*Professional hot dip galvanized wire mesh cable tray manufacturer
*UL,CUL,CE certificated hot dip galvanized wire mesh cable trays
*ISO9001,GMC approved management system for hot dip galvanized wire mesh cable trays
*Monthly over 500k meters output hot dip galvanized wire mesh cable trays
*Customers spread over 100 countries
*7×24 services for hot dip galvanized wire mesh cable trays
*Ten years warranty for hot dip galvanized wire mesh cable trays
The most professional supplier of wire mesh cable tray
Material for hot dip galvanized wire mesh cable trays
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L wire mesh cable trays
Surface Finish hot dip galvanized wire mesh cable trays
1. Hot Dip galvanized: for indoor and outdoor use,60-100microns thickness of coating wire mesh cable trays
Dimensions: (wire mesh cable trays)
Height (H): 25mm, 50mm, 75mm, 100mm, 125mm, 150mm wire mesh cable trays
Width (W): 50mm-900mm wire mesh cable trays
Length (L): 300mm-3000mm wire mesh cable trays
Diameter (D): 3.00mm-6.00mm wire mesh cable trays
Installations (wire mesh cable trays)

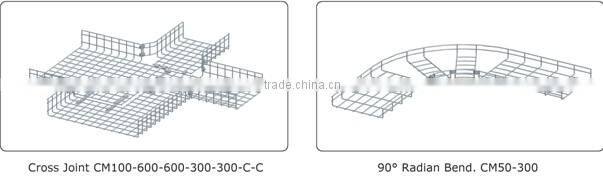

1.Bends, Risers, T-Junctions, Crosses and Reducers can be made from wire mesh cable tray straight sections flexibly in projects.
2. Wire mesh cable trays shall be supported at normally span 1.5m bracket (maximum span is 2.5m)
3. Wire mesh cable tray systems can be safety used in places where the temperature ranges between -40°and +150°without any change to their characteristics.
Technical parameters ( wire mesh cable trays)
Safe work loading test ( wire mesh cable trays)
wire mesh cable trays Test configuration is in compliance with standard IEC:61537-2007.
Right configure shows the safe work loading data. MAX loading data is 2-3 times to safe work loading data.
IF welding technology makes welding spot better strength.

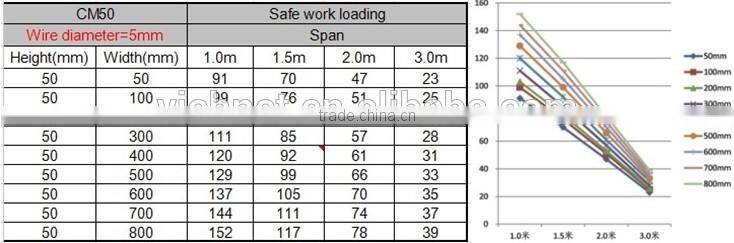

Loading Capability of Vichnet wire baskets(kg/meter)
Quality control for hot dip galvanized wire mesh cable trays

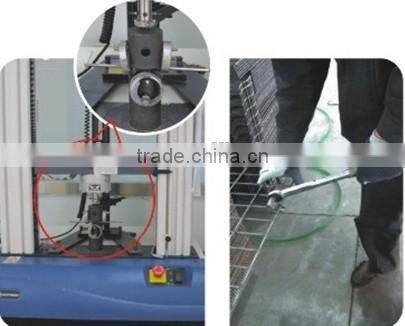

1. Welding strength tests for hot dip galvanized wire mesh cable trays
Description: Test welded segment, cut off from tested wire mesh cable tray, with hydraulic press.
Test condition: 23±2°C, 50±5%RH, hydraulic press speed: 5mm/min.
Result:Minimum breaking force=1166N
2.SWL( safe work loading) tests for hot dip galvanized wire mesh cable trays
Test standard: BS EN 61537:2007
Cable Management Clause 10.4

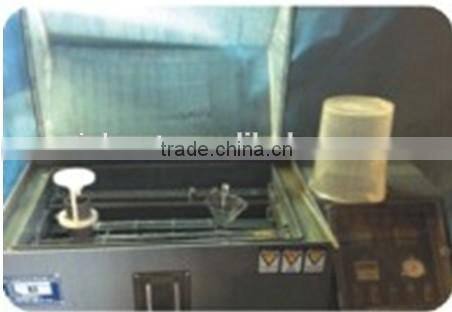

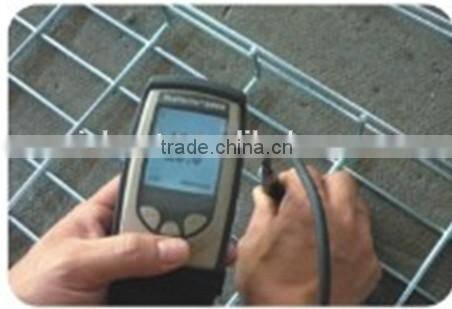

3.Thickness of finishing for hot dip galvanized wire mesh cable trays
Electro zinc: thickness more than 12μm
HDG: thickness more than 60μm
Powder coating: thickness more than 60μm
Electro zinc plated products more than 96hrs
HDG: thickness more than 720hrs
Powder coating: thickness more than 480hrs

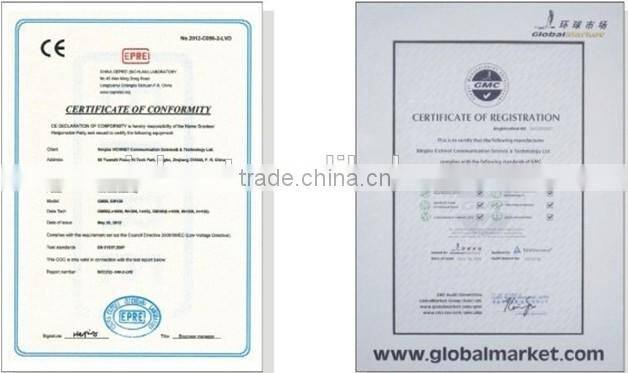

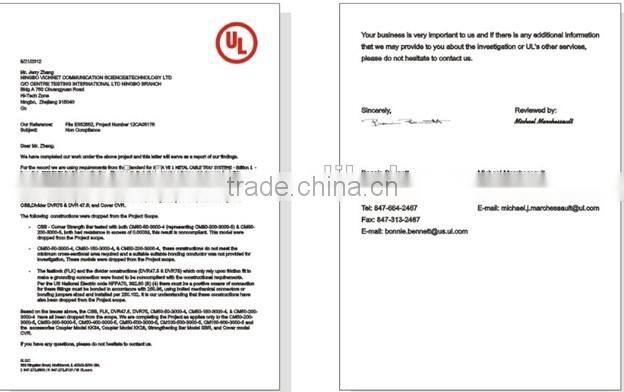

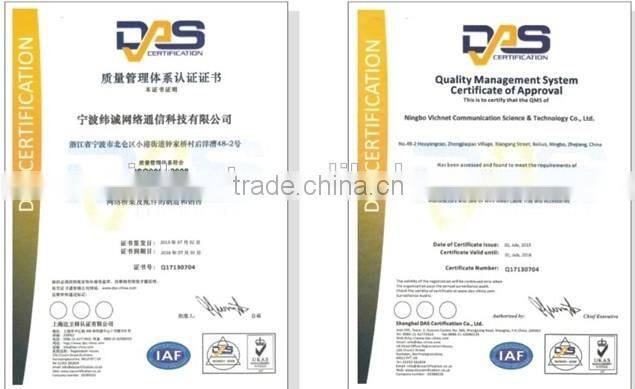

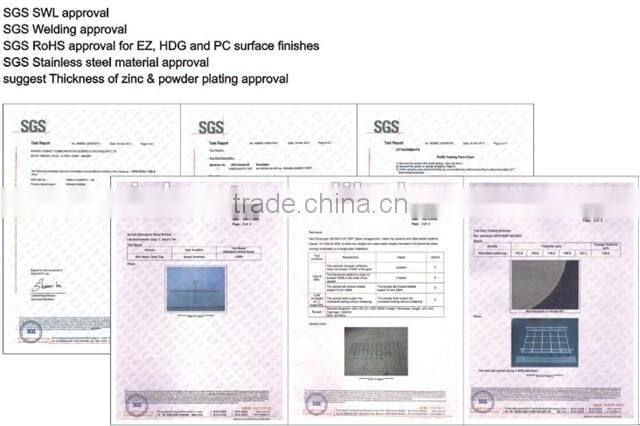

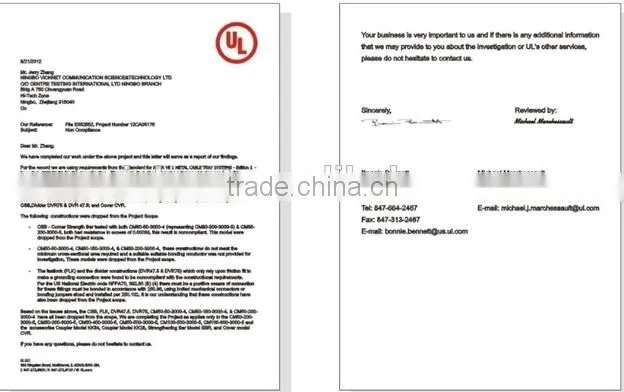

our certifications for wire mesh cable trays

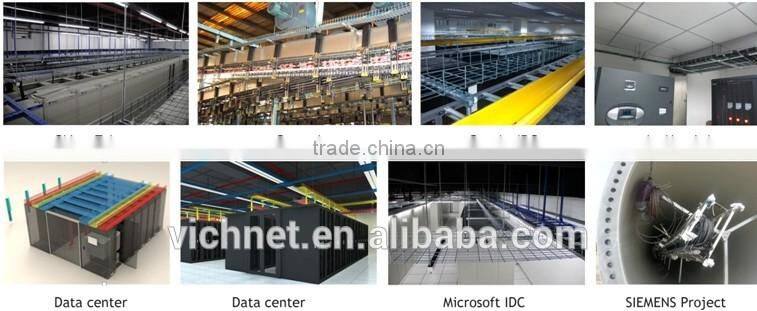

Our project photosfor wire mesh cable trays

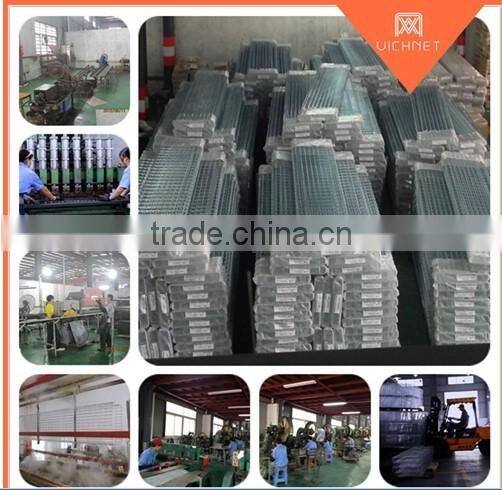

Workshop Photos for wire mesh cable trays

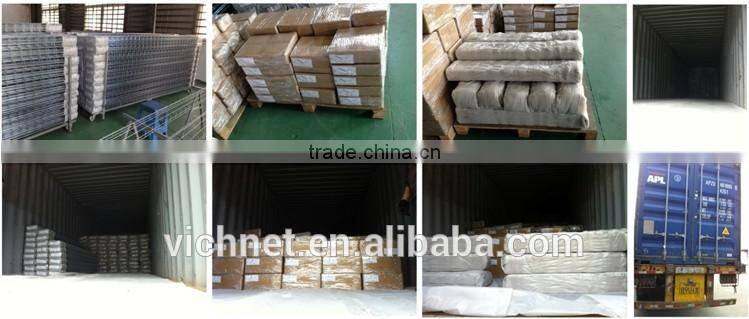

Loading Photos for wire mesh cable trays
