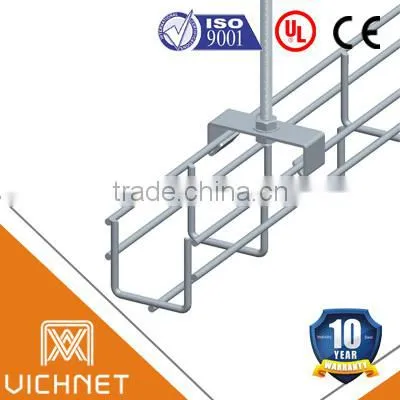

Help CenterCable Tray / Cable Basket Support(UL,CE)
Related Products
-
Wire Mesh Cable Tray / Wire Mesh Basket Tray Support( UL,CE,SGS,Rohs Passed)US$ 5 - 50MOQ: 1 Piece -
Wire Mesh Cable Tray /wire Basket Cable Tray/ VIchnet Support(UL.CE. SGS,Rohs Passed)US$ 5 - 50MOQ: 1 Piece
-
Factory Sales Direct 10 Years Warranty High Quality Wire Basket Grid TrayUS$ 1 - 5MOQ: 3 Meters
-
Flexible Installation Wire Mesh Cable TrayUS$ 1 - 5MOQ: 1 Meter
-
10 Years Warranty Factory Direct Sales Stainless Steel Pharmacy TrayUS$ 1 - 5MOQ: 1 Meter
Specifications
1.Wire mesh cable tray,EZ cable tray,hot dip galavized cable, stainless steel cable traywith UL,CE
2.Easying installation.
1.,Vichnet is a leading and professional cable tray support manufacturer in China, located in ningbo city, and have been exported to more than 100 countries.
2."VICHNET" is a super brand of our company.We have a professional team devoted to designing and producing reliable cable tray supports.
3. ISO9001:2008/UL/CUL/CE, passed Rohs test
4. Vichnet provides all solution for mesh cable tray systems, provide the technical guide movie.
5. Cable tray support EZ>12u, HDG>60u
6. Siemens and GE specified wire mesh cable tray support system supplier
7. Advance design team, OEM service accepted.
8.7x24 services
9.Ten years guarantee
Reliable wire mesh cable tray,flexible cable tray,cable trucking, cable basket, wire mesh cable t ray accessories Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L
Reliable wire mesh cable tray,flexible cable tray,cable trucking, cable basket, wire mesh cable t ray accessories Surface Finish:
1.Electro zinc plated cable tray support – for indoor use to BS EN 12329-2000, 12microns thick.
2.Powder coated cable tray support - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
3.Hot Dipped Galvanized cable tray support – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
4.Electrolytic Polishing cable tray support – for stainless steel use
Reliable wire mesh cable tray,flexible cable tray,cable trucking, cable basket, wire mesh cable t ray accessories Dimensions: (Available for customized)
1.Cable tray support dimensions are all internal size.
2.Cable tray supports are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...
Widths: 50~1000mm.
Length: Maxiun 3000mm
Wire Diameter: 3.5~ 6.0mm
Installation Notice:
1.Bends, Risers, T Junctions, Crosses and Reducers can be made from cable tray support straight sections flexibly in project site.
2 .Cable tray support should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).
3. Cable tray support can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.
| Item Names | Height | Width | Length | Diameter | Weight | ||
| CM50-Width-Length-Diameter-Finish | mm | inch | mm | inch | mm | mm | kg/each |
| CM50-50-3000-5-SS304/316/316L | 50 | 2 | 50 | 2 | 3000 | 5 | 3.14 |
| CM50-100-3000-5- SS304/316/316L | 50 | 2 | 100 | 4 | 3000 | 5 | 3.84 |
| CM50-150-3000-5- SS304/316/316L | 50 | 2 | 150 | 6 | 3000 | 5 | 4.54 |
| CM50-200-3000-5- SS304/316/316L | 50 | 2 | 200 | 8 | 3000 | 5 | 5.25 |
| CM50-300-3000-5- SS304/316/316L | 50 | 2 | 300 | 12 | 3000 | 5 | 6.65 |
| CM50-400-3000-5- SS304/316/316L | 50 | 2 | 400 | 16 | 3000 | 5 | 8.06 |
| CM50-450-3000-5- SS304/316/316L | 50 | 2 | 450 | 18 | 3000 | 5 | 8.76 |
| CM50-500-3000-5- SS304/316/316L | 50 | 2 | 500 | 20 | 3000 | 5 | 9.47 |
| CM50-600-3000-5- SS304/316/316L | 50 | 2 | 600 | 24 | 3000 | 5 | 10.88 |
| More | |||||||
| Material | Surface finishing | Thickness of coating | Application environment |
| Q235 Steel | Electro zinc plating | >=12um | Indoor |
| Q235 Steel | Hot dip galvanized | >60um | Indoor, Outdoor |
| Q235 Steel | Powder coating | >60um | Indoor, need colors |
| SS304 | acid washing | N/A | Indoor, Outdoor |
| SS316 | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
| SS316L | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
