Specifications
1.Focus on producing cable tray2.ISO9001:2008/UL/CUL/CE,passed Rohs test
3.wire mesh cable tray EZ>12u ,HDG>60u
1. Vichnet is a leading Cable tray/Cable basket manufacturer, located in China,ningbo City, and have been exported to more than 100 countires.
2. Focus on producing Cable tray/Cable basket.
3. ISO9001:2008/UL/CUL/CE Certificated, and passed Rohs, loading capacity, welding strength etc. tests.
4. 5. The welding strength of our Cable tray/Cable basket higher than industry standards, and the capacity of our Cable tray/Cable basket 27% greater than traditional cable rays and cable ladders.
7. Advance design team, OEM service accepted.
8. Siemens and GE specified Cable tray/Cable basket system supplier
Material for Cable tray/Cable basket :
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L
Surface Finish Cable tray/Cable basket :
Electro zinc plated Wire Mesh Cable Tray – for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated Wire Mesh Cable Tray - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
Hot Dipped Galvanized Wire Mesh Cable Tray – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing Wire Mesh Cable Tray – for stainless steel use
Dimensions for Cable tray/Cable basket : (Available for customized)
Wire Mesh Cable Tray dimensions are all internal size.

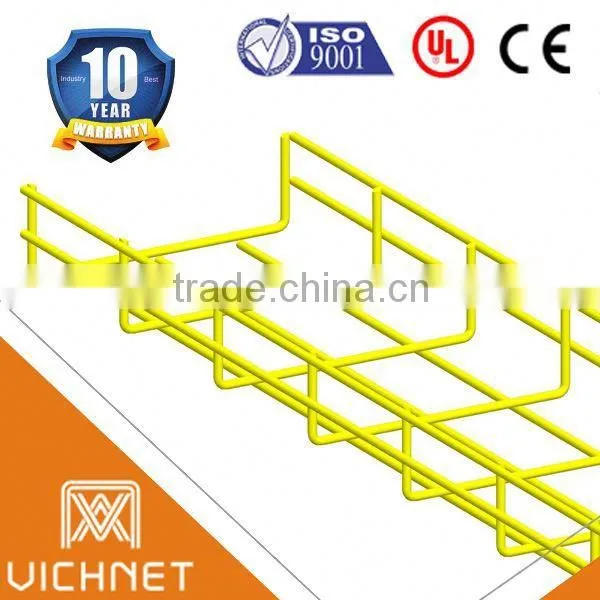

Wire Mesh Cable Trays are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...
Widths: 50~1000mm.
Length: Maxiun 3000mm
Wire Diameter: 3.5~ 6.0mm
Installation Notice for Cable tray/Cable basket :
Bends, Risers, T Junctions, Crosses and Reducers can be made from Wire Mesh Cable Tray straight sections flexibly in project site.
Wire Mesh Cable Tray should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).
Wire Mesh Cable Tray can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.
| Material | Surface finishing | Thickness of coating | Application environment |
| Q235 Steel | Electro zinc plating | >=12um | Indoor |
| Q235 Steel | Hot dip galvanized | >60um | Indoor, Outdoor |
| Q235 Steel | Powder coating | >60um | Indoor, need colors |
| SS304 | acid washing | N/A | Indoor, Outdoor |
| SS316 | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
| SS316L | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
