1 LSS Vertical Energy Conservation Fuel Gas Steam Boiler Introduction
LSS type fuel oil (gas) steam boiler for vertical fast loading internal combustion curved pipe steam boiler.
2 Characteristics
1) Compact and reasonable structure can meet the requirements of fast loading factory.
2) Convenient fuel storage and transportation safety.
3) Simple operation, quick installation, less pollution, low noise and high efficiency.
4) Boiler is configured with industrial burner of the good technological performance,
using the automatic adjustment of the burning proportion.
3. Usage:
The steam boiler can be used for producing desired hot water for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, plastic chemical, pharmaceutical, etc.
And for heating room, bath, air conditional, and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.
Technical Parameter
| Model | LSS0.03-0.4-Y.Q | LSS0.05-0.4-Y.Q | LSS0.1-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.3-0.7-Y.Q | |||
| Item | Unit | |||||||
| Rated Capacity | t/h | 0.03 | 0.05 | 0.1 | 0.2 | 0.3 | ||
| Rated Pressure | MPa | 0.4 | 0.4 | 0.7 | 0.7 | 0.7 | ||
| Saturated Steam Temperature | ℃ | 151 | 151 | 170 | 170 | 170 | ||
| Fuel Consumption | Light Diesel Oil | kg/h | 2 | 3.3 | 6.5 | 13 | 19.5 | |
| Gas | Nm3/h | 2.1 | 3.5 | 7 | 14 | 21 | ||
| Liquefide Petroleum Gas | Nm3/h | 0.9 | 1.5 | 3 | 6 | 9 | ||
| Town Gas | Nm3/h | 5.1 | 8.5 | 17 | 34 | 51 | ||
| Inlet Diameter | DN | 15 | 15 | 20 | 20 | 20 | ||
| The Main Steam Valve Diameter | DN | 15 | 15 | 20 | 32 | 32 | ||
| Safety Valve Diameter | DN | 20 | 20 | 25 | 40 | 40 | ||
| Blowoff Pipe Diameter | DN | 20 | 20 | 20 | 25 | 25 | ||
| Dimension | Length | mm | 830 | 880 | 950 | 1080 | 1350 | |
| Width | mm | 880 | 890 | 1020 | 1180 | 1450 | ||
| Height | mm | 1400 | 1600 | 1750 | 1900 | 2400 | ||
| Weight | kg | 200 | 240 | 380 | 650 | 730 | ||

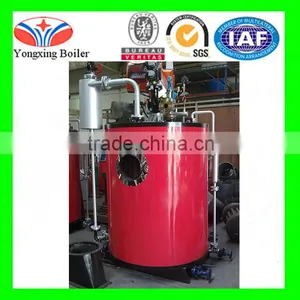

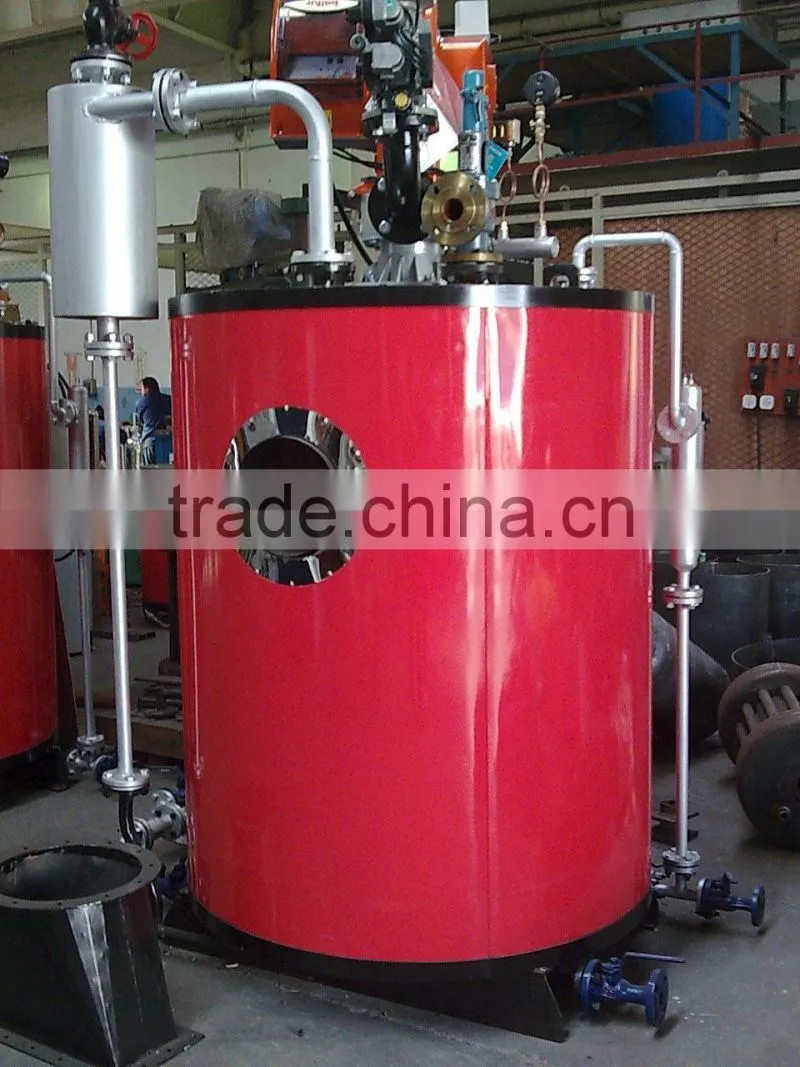

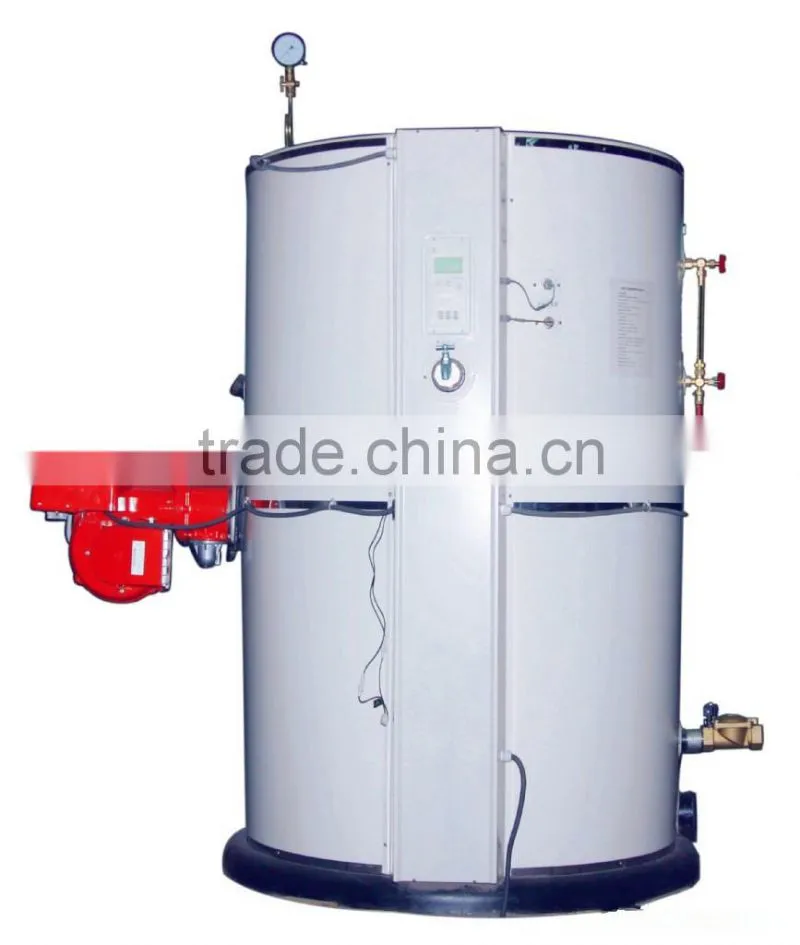

Pictures of Boiler

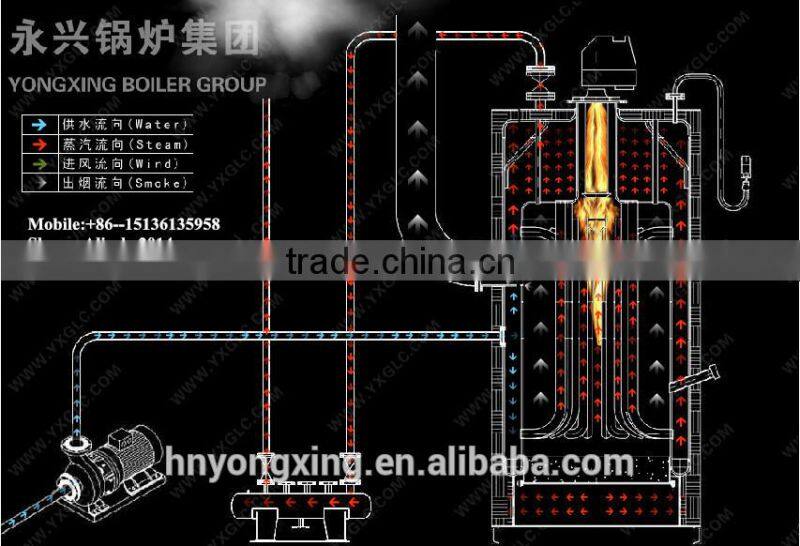

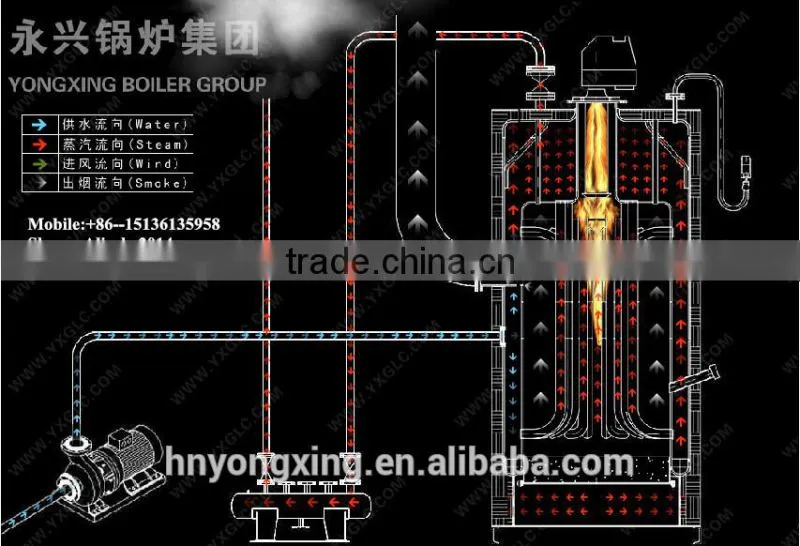

Boiler Working Principle Diagram

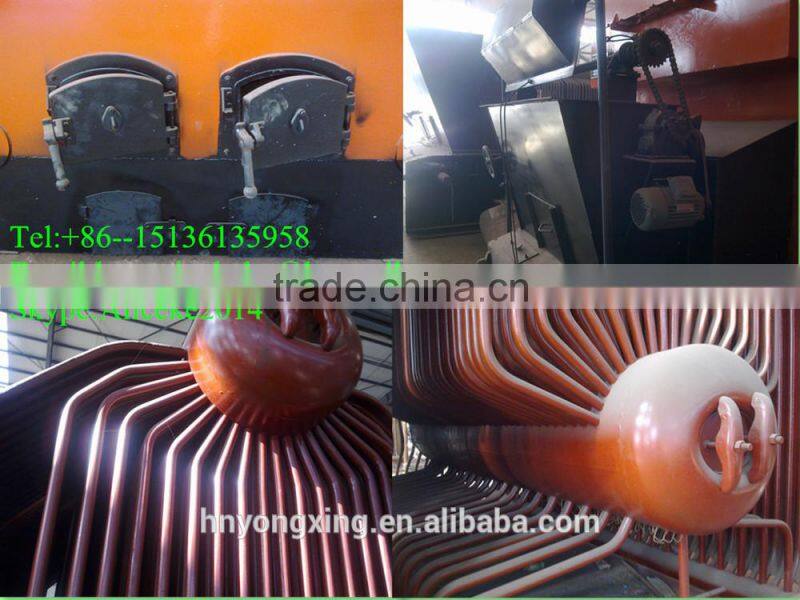

Boiler Details

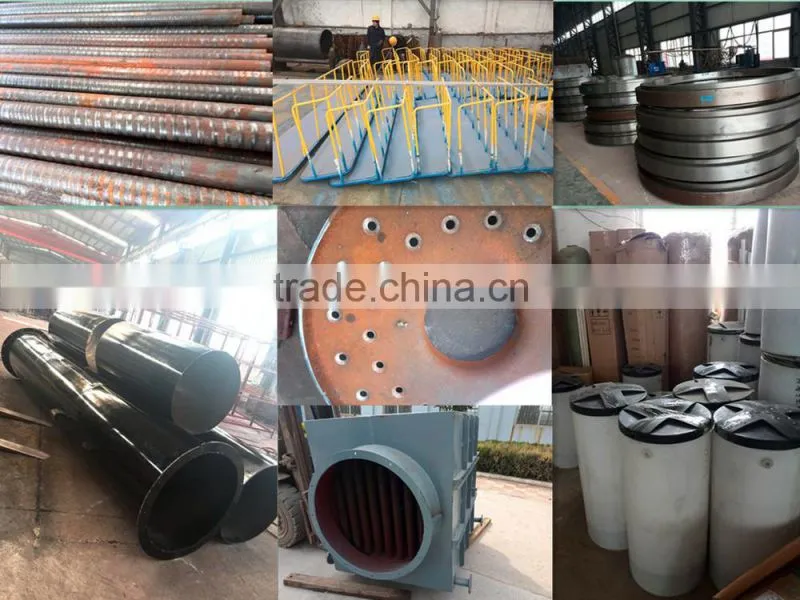

Boiler Accessory

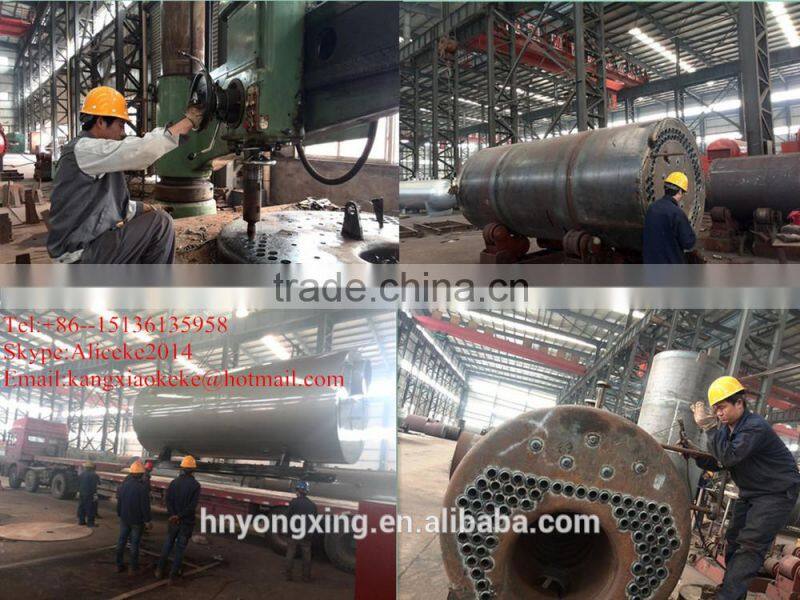

Boiler Manufacture Process

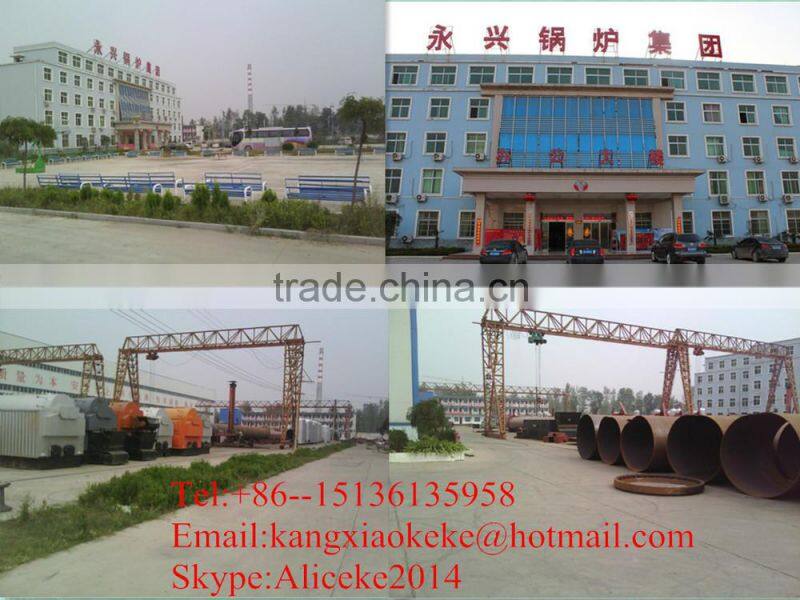

Factory

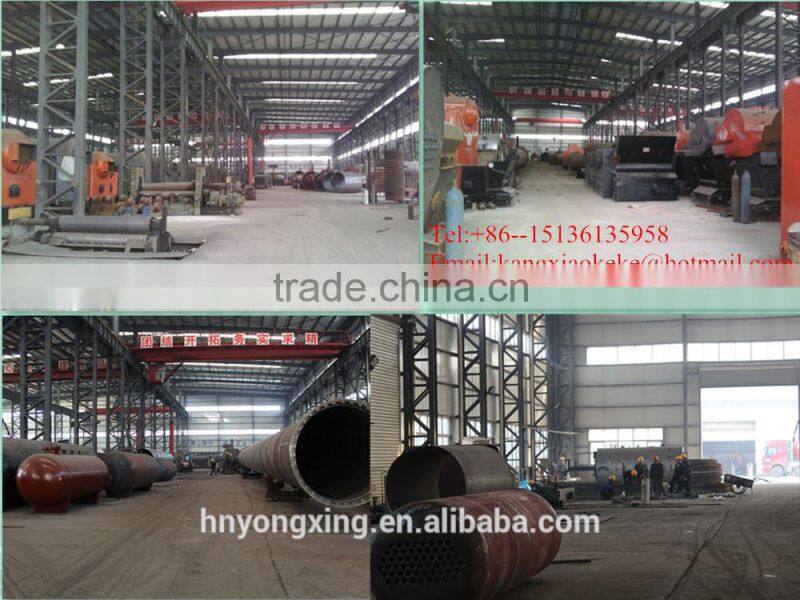

Boiler Workshop

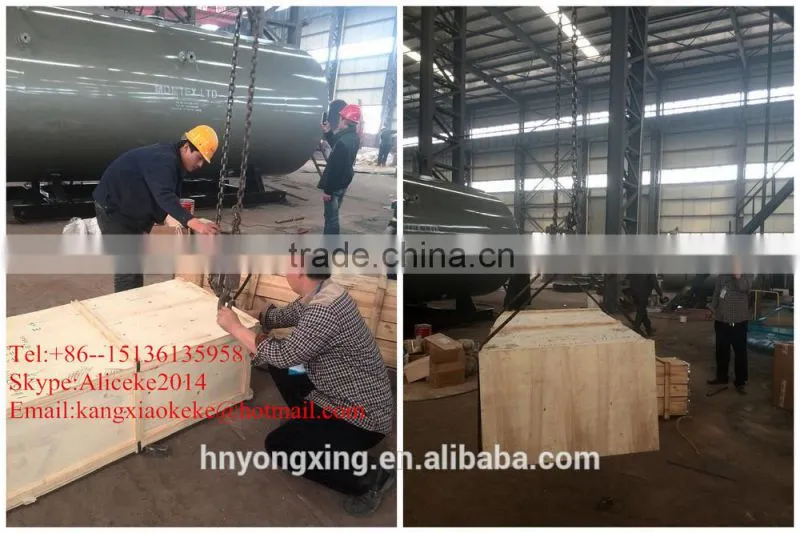

Boiler Packing
Foreign Customers

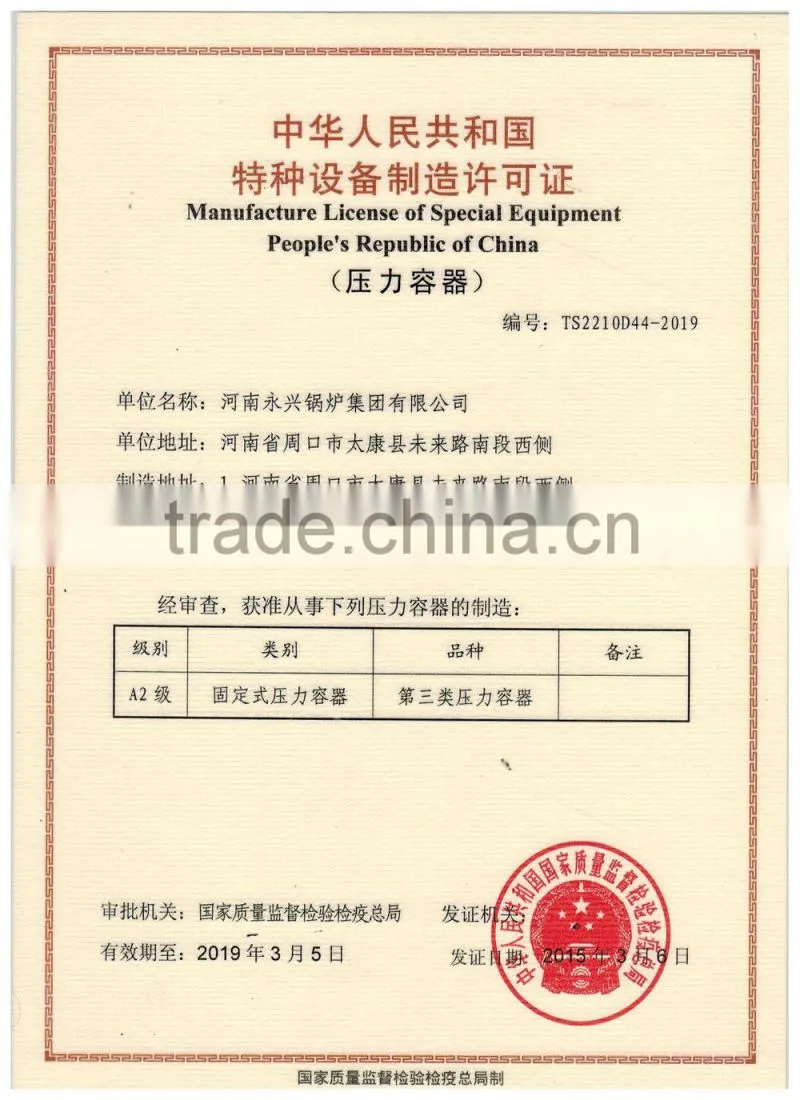

Manufacture License of Special Equipment People's Republic of China
Manufacture License of Special Equipment People's Republic of China
