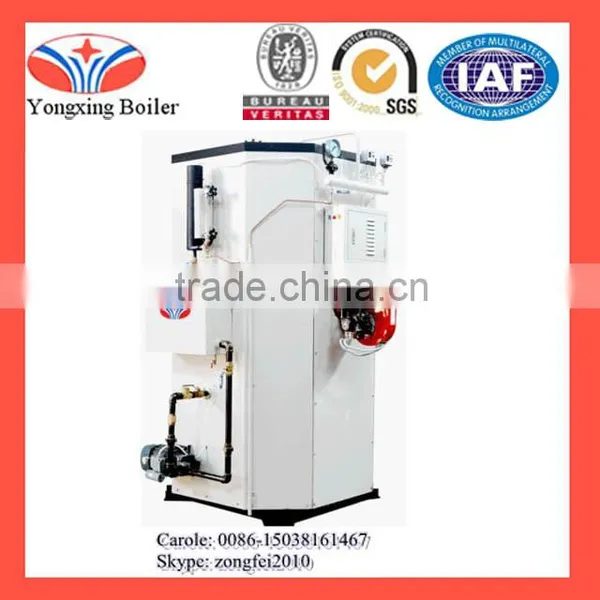

0.5t 7bar Gas/oil Fired LSS Series Verticalmini Steam Boiler

Specifications

1. Characters:

1100% corrugated furnace and spirally corrugated tube: have good thermal flexibility.

2) Scientific airflow design: the temperature of the furnace inside is uniformity and also can absorb flame heat effectively.

3) Excellent imported burner: the fuel can burn completely and meet the most stringent international environmental requirements.

4) The inside of the furnace body equipped with man hole, head pore and hand hole which make the repairmen and maintenance much simpler and convenient. Repair

5) Intelligent control: The boiler can work automatically according to the users setting program.

6) Spoiler in the smoke tube:  boiler has high thermal efficiency.

2.  LHS Series Steam Boiler Drawing

3. Usage

The steam boiler can be used for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, pharmaceutical, etc. And for heating room, bath, air conditional, and daily life water in the departments, hotels, schools, restaurants, services industries etc.

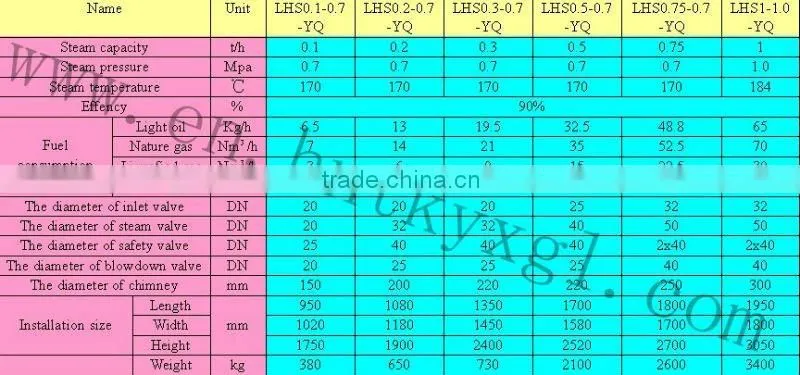

4. LHS-Gas/ Oil-fired boiler technology parameter:

1.Boiler Capacity: 0.08-2Ton/hr

2.Rated working pressure: 0.4-1.5Mpa (4-15kgf/cm2)

3.Fuel: Gas & Oil

4.Thermal Efficiency: ≥90%

5.Power Supply: Three phase 380V, 50Hz

 6.Saturated steam temperature: 1500-194°c

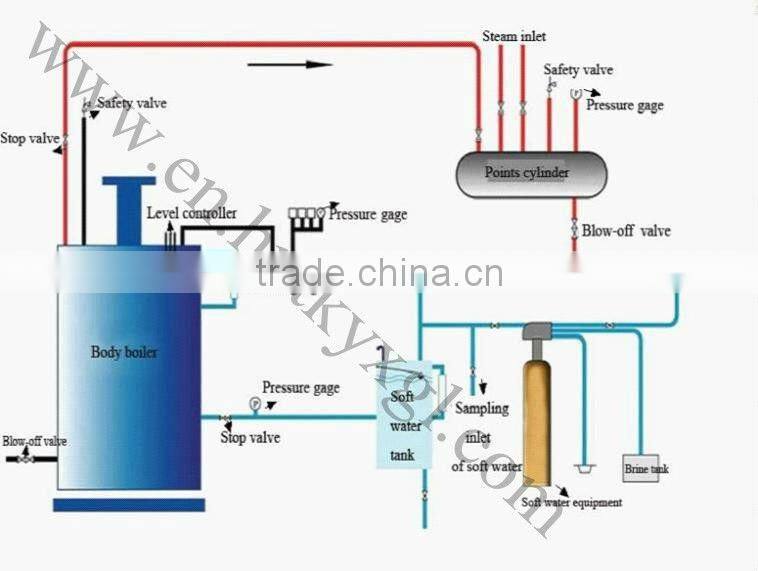

5. Boiler room arrangment:

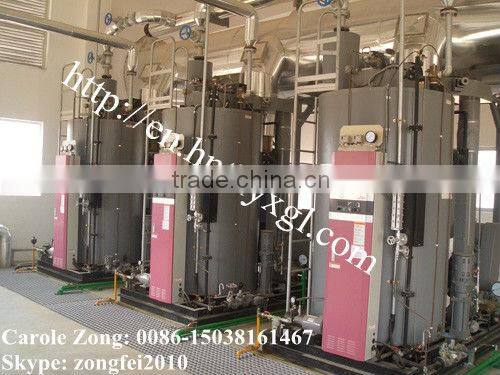

6. Boiler room:

8.  Yongxing Clients:

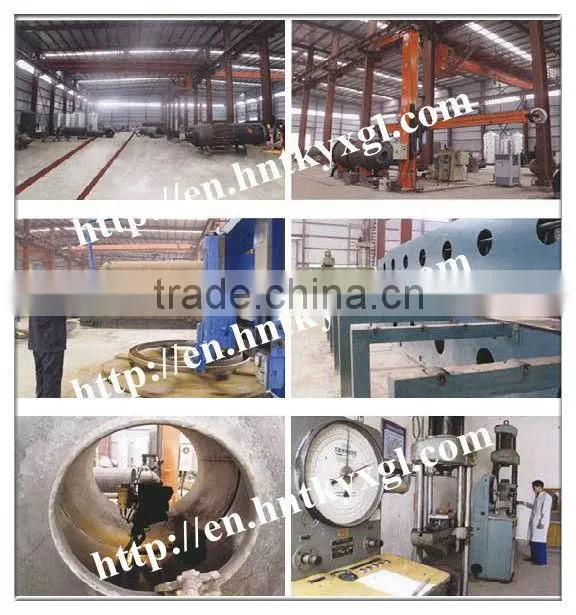

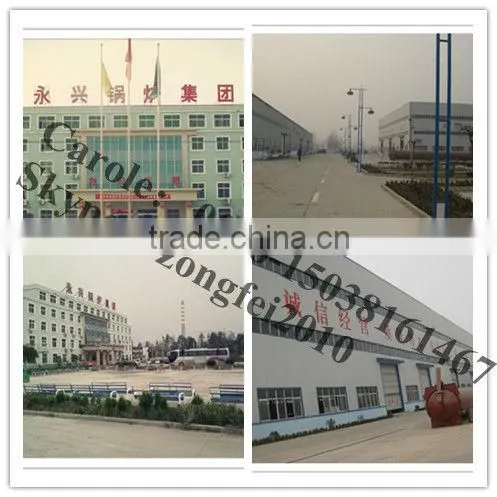

9. Factory:

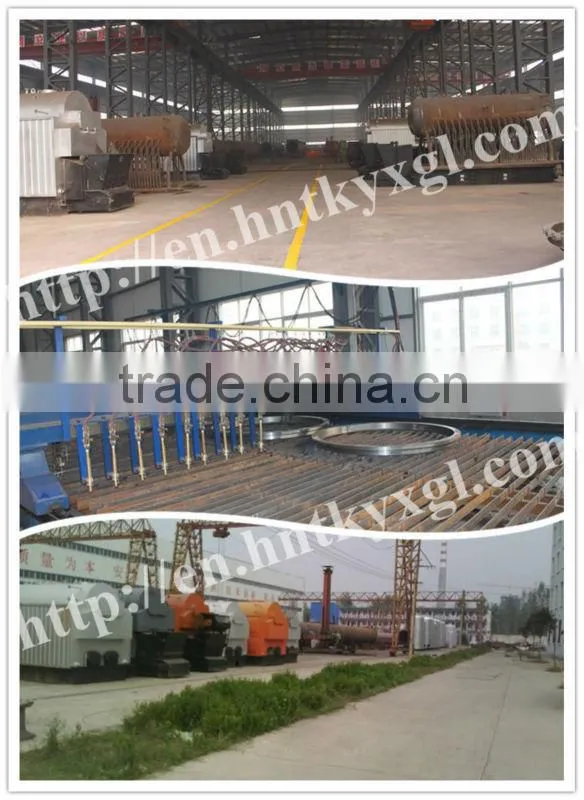

10. Workshop:

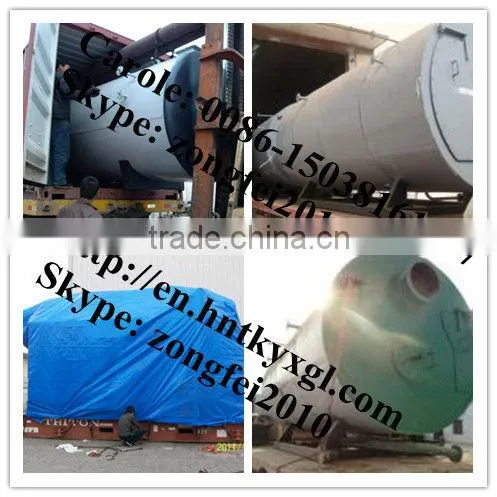

11. Boiler shipping:

12. Certificate:

1)A-Class boiler manufacture certificate

 2)The certificate of ISO9001:2008
