YLL Vertical Anthracite Coal Fired Thermal Conduction Oil Boiler China Boiler

YLL vertical anthracite coal fired thermal conduction oil boiler China boiler

The organic heat boiler is DC-type special industrial boiler which bases on coal, heavy oil, light oil, combustible gas and other combustible materials as fuel, high temperature oil as heat carrier and produces forced liquid circulation by using circulation oil pump to deliver heat energy to equipment to be heated. The heat transfer oil will return to heating chamber and be re-heated. It is a kind of new energy conversion devices. The most advantage is high-temperature low-pressure (atmospheric pressure or low pressure), smooth running and wide use.

Main features:

1.The heating surface adopts closely packed tubes, having adequate heating surface, reducing the heat load of the tube surface, high thermal efficiency, and more secure.

2.Adiabatic combustion of fuel in the combustion chamber, easier ignition and more complete combustion to improve the thermal efficiency of the boiler.

3.Reasonable medium flow, oil flows from low inlet to high outlet; gas produced during oil flow is difficult to keep in the boiler to avoid hidden danger.

4. Closely-packed coil tube on boiler roof to better protection boiler roof and void its burnout.

5. Easy installation, no foundation; just need to close the upper body and the lower grate, short installation period.

Application:

Mainly used in: chemical industry-polymerization industry, oil industry, asphalt melting, reaction tank, distillation, enrichment; plastic industry-plastic extrude to finalize the design; textile industry-resin stenters, dying machine and drying room, high temperature machine, roller; rubber industry-rubber vulcanization heating; food industry-cooking, drying, vegetable oil refining; wood industry-heating to finalize the design of chipboard, sandwich plate, wamu board, fiber; building material industry, air conditioning industry, electroplating, steel pickling and other surface treatment and various drying industry.

Specification:

Working principle:

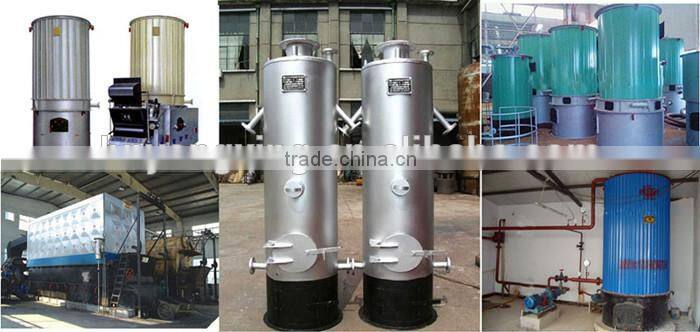

Product photo:

Workshop:

Packing & loading:

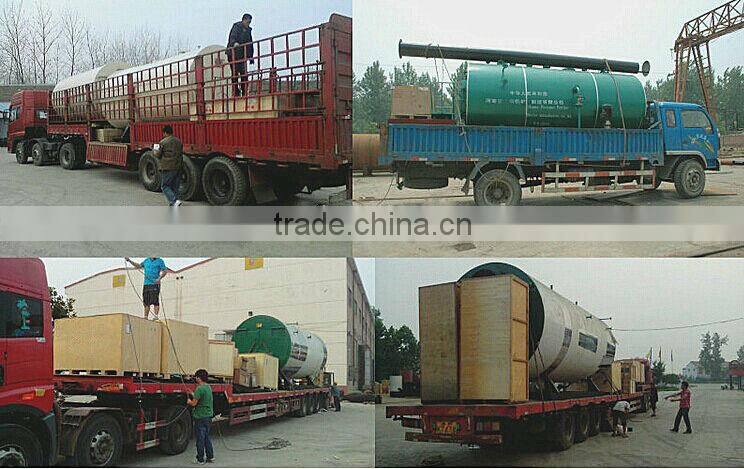

Inland delivery:

Customers:

---About us---

Henan Yongxing Boiler Group Co., Ltd., originating from Taikang County Yongxing Boiler Co., Ltd. which is established in 1990s, locates in Henan Province of China. The group company owns two production plants covering an area of about 40 acres, having national recognized qualification for design and manufacturing of A-class boiler, A1/A2-class pressure vessel and D-class pressure vessel. It has already developed into a large integration enterprise that undertakes design, manufacture and installation of kinds of boilers.

The company has completed production lines – more than 120 sets of large and medium-sized production equipments, more than 60 sets advanced equipment for product quality testing. The products includes 23 big series, 238 specifications with own trademark of Yongxing. The annual production capacity for boilers is up to more than 3000 steam tons and more than 800 sets of pressure tanks.

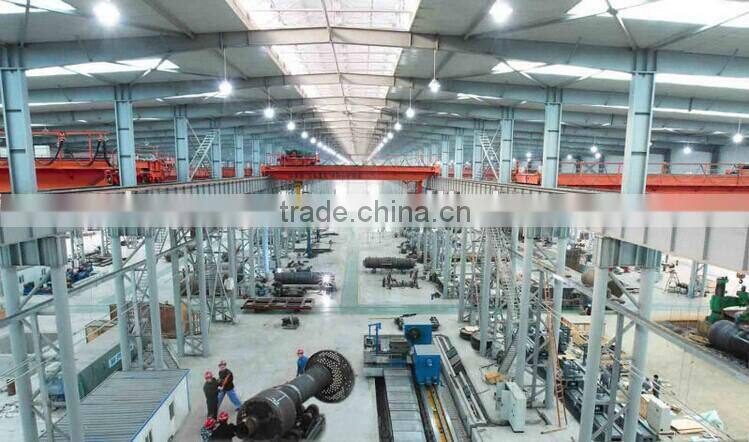

Factory photo:

---Why choose us?---

Our Services:

Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the installation site to help install the customers’ boilers. Necessary training about boiler operation and daily maintenance to local workers is provided also.

Our after-sales department is made of well-trained employees, and installation engineers. The installation technicians are special and professional team; they are now strategically located home and abroad, working for our customers.

Quality control:

From procurement of main raw material to delivery of finished products to after-sales service of terminal end-users, we adopt recorded quality inspection tracking. The advanced production assembly line ensures the normal operation of the quality system to ensure the overall quality of our products. High welding technology and advanced welding equipments can ensure the quality of each weld joints. Stable welding pool, weld accurate amount uniform on line, deposited stable metal chemical ingredients and perfect crystallized grain size are ensured during welding process. Probability of slag, undercut, crack defects is fundamentally eliminated and radiation detection examination is used to determine the immanent quality of products.
