Hot slae horizontal fuel coal heat only boiler

Application of YLW, YGL, YLL series organic heat transfer boiler:

(1). Chemical industry: polymerization industry, oil industry, asphalt melting, reaction tank, distillation, enrichment;

(2). Plastic industry: plastic extruded to finalize the design;

(3). Textile industry: resin stenters, dyeing machine and the dry room, high temperature machine, roller; rubber industry-rubber vulcanization heating;

(4). Food industry: cooking, dry, vegetable oil refining;

(5). Wood industry: heating to finalize the design of chipboard, sandwich plate, wamu board, fiber;

(6). Building materials industry: air conditioning industry, electroplating, steel pickling and other surface treatment and various drying industry.

Structure of  YLW, YGL, YLL series organic heat carrier furnace:

1. YLW, YGL, YLL series organic heat transfer material coal boilers are assembly type forced circulation vertical boilers.

2. The boiler body structure is compact, heating, surface is formed by the internal and external heating densely disc tube, inside pipe is for radiation heating, outside tube and outer surface of the inside tube form the convection heating surface.

3. Boiler is made of the upper body and the lower part combustion chamber, field assembly.

4. After fuel burn full in the combustion chamber, and radiation heating surface absorb most of the quantity of heat, flue gas of high tempreture enter into the fuel burn full in the combustion chamber, and radiation heating surface absorb most of the quantity of heat, flue gas of high temperature enter into the convection heating surface, the flue gas will be sent to chimney through the filter by induced draft fan and then will be discharged into the atmosphere.

Specification of YLW, YGL, YLL series organic heat carrier furnace:

  Range of the hot thermal oil heater :

(1). CAPACITY: 50,000 Kcal/Hr TO 12,000,000 Kcal/H

(2). FUEL : coal

(3). TEMPERATURE : 150 ° C to 350° C

(4). Thermal Efficiency: ≥90%  ° C

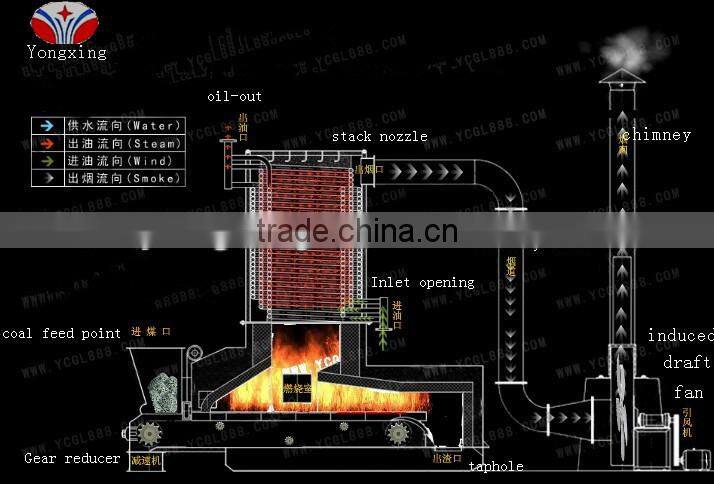

Working principle of hot thermal oil heater :

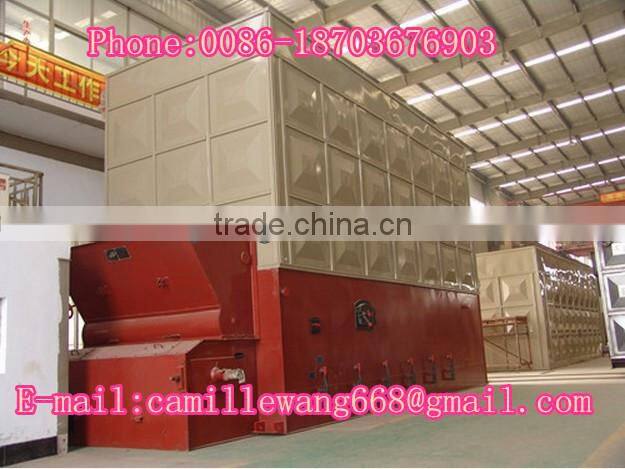

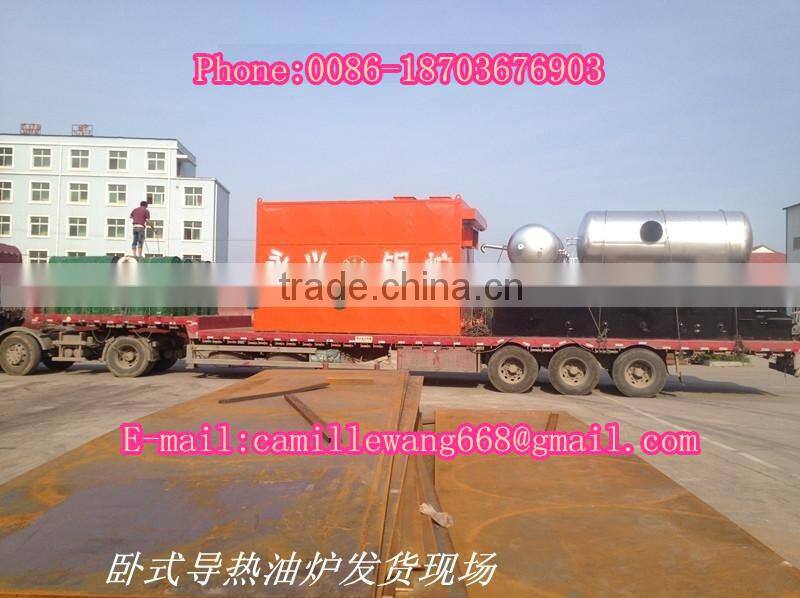

Photos of the hot thermal oil heater :

 Quality certificates:

 sales network:

Our clients:
