Specifications
High Quality and Horizontal Type Concrete Block Machine Autoclave1.Qualification:Class A manufacturer
2.Experience:> 30 years
Product Information

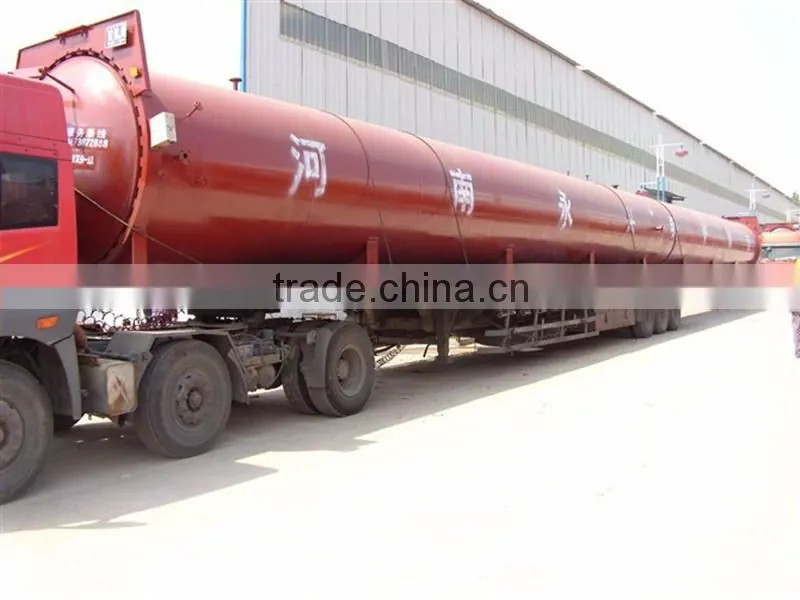

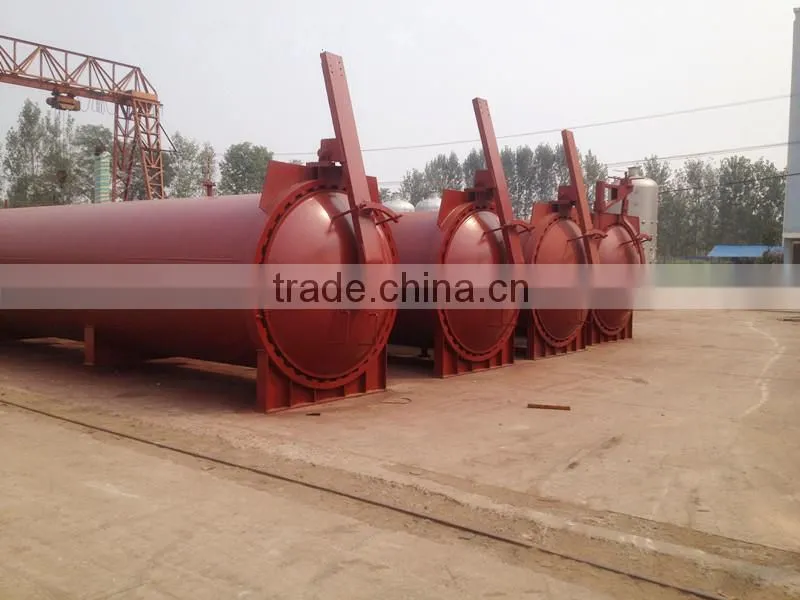

High Quality and Horizontal Type Concrete Block Machine Autoclave:
It is a large pressure vessel that can steam pressurized bricks and normal bircks which are made of aerated concrete blocks, sand, fly-ash etc, under great pressure. With wide applications, the autoclave reactor can also be used in other production projects which need pressure steam-curing, for instance, high strength gypsum,insulatio materials, rubber products, high strength glass, cement pipe pile and timber, wood, pharmaceutical, chemical and other industries.
- Steel horizontal cylinder-type device, kettle covers and cylinder made of Q345R steel plate;
- Kettle door is movable, and mode of opening: manual & automatic;
- Three forms of support: fixed, movable and special end support;
- Equipped with safty valves, pressure gauges, temperature elements, INTAKE. EXHAUST valves, seals valve,draining valve, etc.
| Model |
Inner Diameter (m) |
Effective Length L1(m) |
Max Working Temperature (°c) |
Max Working Pressure (Mpa) |
Designed Temperature (°c) |
Designed Pressure (Mpa) |
Working Medium |
Total Length L(m) |
Wide W(m) |
Height H(m) |
| FGZSS1.3-2.0xL | Φ2.0 |
Customized: designed as your requirements |
1.3 | 195 | 198 | 1.4 |
Saturated condensed water
|
L+1.32 | 2.965 | 3.225 |
| FGZSS1.5-2.0xL | Φ2.0 | 1.5 | 201 | 204 | 1.6 | L+1.32 | 2.965 | 3.225 | ||
| FGZSS1.3-2.2xL | Φ2.2 | 1.3 | 194 | 197 | 1.4 | L+1.48 | 3.288 | 3.43 | ||
| FGZSS1.5-2.2xL | Φ2.2 | 1.5 | 201 | 204 | 1.6 | L+1.48 | 3.288 | 3.43 | ||
| FGZSS1.3-2.5xL | Φ2.5 | 1.3 | 195 | 197 | 1.4 | L+1.56 | 3.254 | 4.017 | ||
| FGZSS1.5-2.5xL | Φ2.5 | 1.5 | 201 | 204 | 1.6 | L+1.56 | 3.254 | 4.017 | ||
| FGZSS1.3-2.68xL | Φ2.68 | 1.3 | 194 | 197 | 1.4 | L+1.75 | 3.28 | 4.143 | ||
| FGZSS1.5-2.68xL | Φ2.68 | 1.5 | 201 | 204 | 1.6 | L+1.75 | 3.28 | 4.143 | ||
| FGZSS1.3-2.85xL | Φ2.85 | 1.3 | 194 | 197 | 1.4 | L+1.81 | 3.58 | 4.493 | ||
| FGZSS1.5-2.85xL | Φ2.85 | 1.5 | 201 | 204 | 1.6 | L+1.81 | 3.58 | 4.493 | ||
| FGZSS1.3-3.0xL | Φ3.0 | 1.3 | 194 | 197 | 1.4 | L+1.85 | 4.537 | 4.66 | ||
| FGZSS1.5-3.0xL | Φ3.0 | 1.5 | 201 | 204 | 1.6 | L+1.85 | 4.537 | 4.66 | ||
| FGZSS1.3-3.2xL | Φ3.2 | 1.3 | 194 | 197 | 1.4 | L+1.9 | 4.74 | 5.131 | ||
| FGZSS1.5-3.2xL | Φ3.2 | 1.5 | 201 | 204 | 1.6 | L+1.9 | 4.74 | 5.131 |
Company Information
Henan Yongxing Boiler Group Co., Ltd, established in 1970s with the registered capital of more than RMB 100 million, is a professional manufacturer and exporter that specializes in the design, development and production of boilers and pressure vessels. All of our products comply strictly with the international quality standards and are quite appreciated in a varitey of different markets throughout the world. Our company occupies an area of 230 arces, with thress factories and six subsidiaries.
Our company is bounded by Beijing-Kowloon Railway on the east, and close to 106 country road. Very convenient for transportation!
Factory View
Main Certifications Yongxing Has Gotten
In 2000, Yongxing passed the accreditation of ISO9001:2000 International Management System and continues to carry it on and keeps it run well. On April 1st, 2011, we passed a new edition of this certification---ISO9001:2008, and on the same day, another ISO14001:2004 was passed as well. In May, 2011, our company was awarded as a Class A Manufacturer of Henan province.
Our Services
Before the products leave our factories, all the matters relevant to boilers will be undertaken by our company, such as equipment decoration in boiler room and also satisfactory, free-charge service will be offered by us until the turn-key project. The replacement is guaranteed if any problem concerning the product quality arises within a year.
In the manufacturing process, clients are quite welcome to our factory to examine the product quality and to carry out the follow-up inspections.
