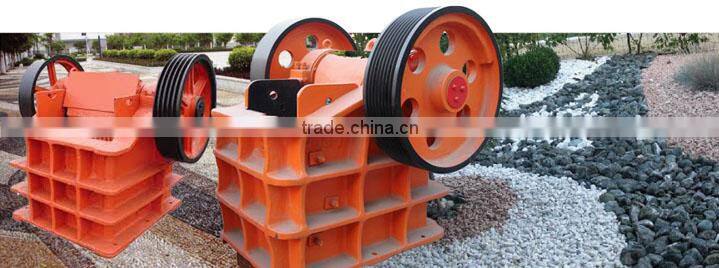

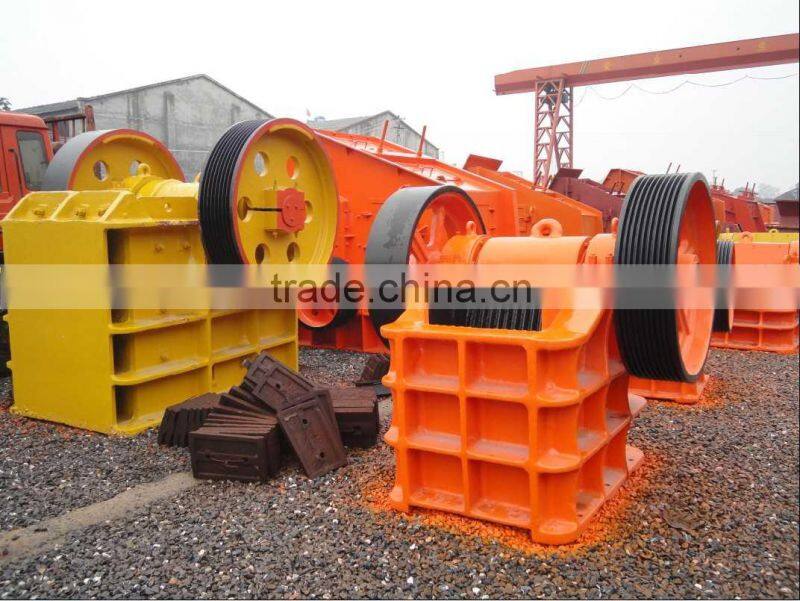

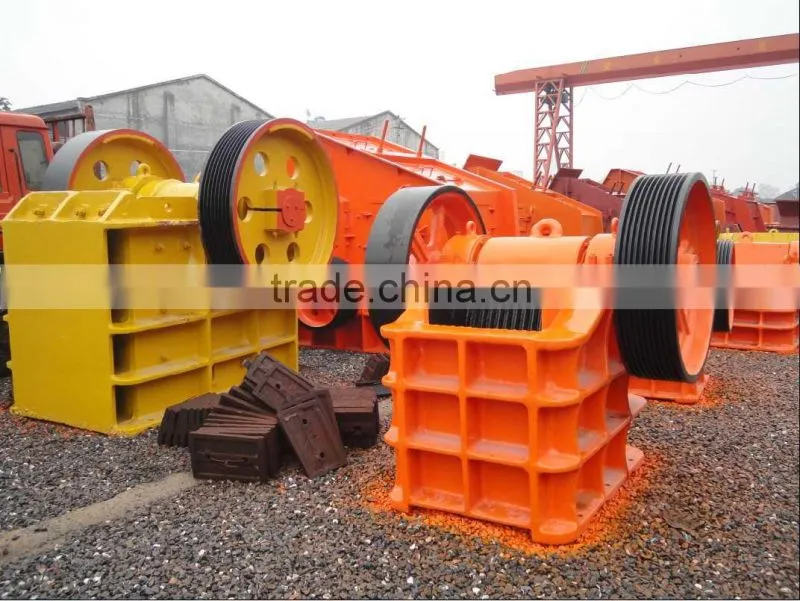

Small Stone Powder Jaw Crusher
Application of Jaw Crusher:
The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 245Mpa.
Structure of Jaw Crusher: The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
Operating principle of Jaw crusher: Jaw crusher uses motor as its power. Through the motor’s wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Model | Feed Opening (mm) | Max. Feed Size (mm) | Capacity (t/h) | Power Consumption (kw) | Discharge Opening (mm) | Overall Dimension (L x W x H) (mm) |
PE-150×250 | 150×250 | 125 | 1-5 | 5.5 | 10-40 | 758×758×794 |
PE-250×400 | 250×400 | 210 | 5-20 | 15 | 20-60 | 1500×1400×900 |
PE-400×600 | 400×600 | 340 | 16-65 | 30 | 40-100 | 1700×1800×1600 |
PE-500×750 | 500×750 | 425 | 50-100 | 55 | 50-100 | 1890×1940×1870 |
PE-600×900 | 600×900 | 500 | 50-120 | 55 | 65-160 | 2395×1843×2230 |
PE-750 ×1060 | 750×1060 | 630 | 52-180 | 110 | 80-140 | 2775×2426×2840 |
PE-800×1060 | 800×1060 | 640 | 136-230 | 110 | 100-200 | 2500×2472×2810 |
PE-900×1200 | 900×1200 | 750 | 140-260 | 110 | 95-165 | 3400×3200×3500 |
PE-1000×1200 | 1000×1200 | 850 | 315-342 | 110 | 195-265 | 3335×3182×3430 |
PE-1200×1500 | 1200×1500 | 1020 | 400-800 | 160 | 150-300 | 4200×3732×4620 |
PE-250 ×750 | 250×750 | 210 | 15-30 | 22 | 15-70 | 1400×1300×1350 |
PE-250×1000 | 250×1000 | 210 | 16-52 | 30 | 25-60 | 1600×2000×1500 |
PE-250 ×1200 | 250×1200 | 210 | 20-60 | 37 | 25-60 | 1900×2200×1500 |
PE-300×1300 | 300×1300 | 260 | 30-70 | 55 | 30-90 | 1800×2300×1700 |
