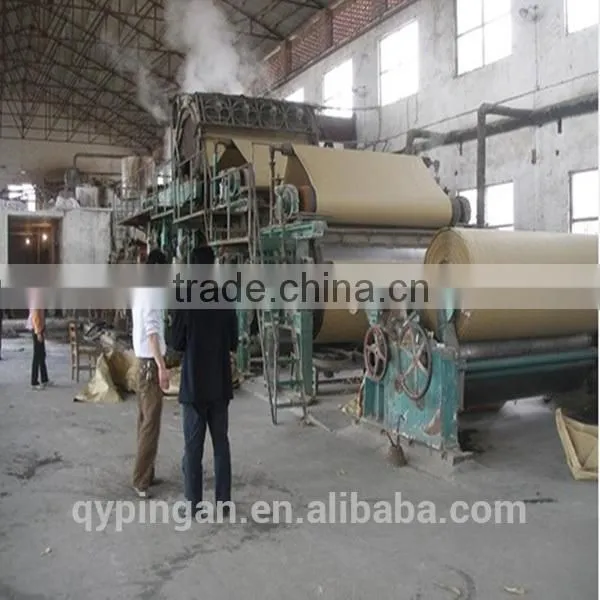

New type 1575mm Cardboard Grey board paper machine price/paper making machine on sale
- 50 Set / Sets per Month
- any port of China
- T/T Credit Card
- Hot sale multi dryer and cylinder kraft and corrugated paper making machine price with the whole product line
- New Condition Kraft Paper / Box Paper Making Machine/ Office Paper/Waste Recycle/Kraft Liner Paper Sheet Machine
- 2360mm 25t/d Fourdrinier Multi Dryer Can Kraft Paper Production Line
- Excellent Performance Paper Making Machine for Cardboard (website:hwasong03)
- 3200mm Three-wire Fourdrinier High Speed Kraft Test Liner Board Paper Machine
- Less Maintenance Fluting Paper Making Machinery Equipment(website:hwasong03)
Product Details
Condition: | New | Product Type: | Other, cardboard grey board paper | Processing Type: | Paper Slitting and Rewinding Machine |
Place of Origin: | Henan, China | Brand Name: | Pingan | Model Number: | 1575 |
Voltage: | 380v 220v | Power(W): | 414kw | Dimension(L*W*H): | option |
Weight: | option | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard package
Product Description
New type 1575mm Cardboard Grey board paper machine/paper making machine on sale
technical parameter
1. Paper output:grey board
2. Paper weight: 320-800g/m2
3. Paper width:1575mm
4. Wire width:1950mm
5. Design speed:100m/min
6. Working speed:30-60m/min
7. capacity:5-7T/D
8. gauge:2400mm
9. pressure type:pneumatic pressure
10. driving type:AC frequency speed,driving by step
11. machine design:square box,right hand
The process flowing chart:
All the equipment list
NO. | Item | Qty(set) |
1 | 1575mm four cylinder mould and double dryer | 1 |
2 | dryer gas hood | 1 |
3 | exhaust fan | 1 |
4 | 15type vacuum pump | 2 |
5 | suction box | 6 |
6 | air compressor | 1 |
7 | air flitter | 1 |
8 | cylinder vat | 4 |
9 | 1575mm double roll calender | 1 |
10 | 1575mm reeling machine | 1 |
11 | 1575mm cutter machine | 1 |
12 | 1575mm rewinding machine | 1 |
13 | frequency cabinet | 1 |
14 | Digital signal controller | 1 |
15 | all the work table | 1 |
16 | 5m³ pulper | 1 |
17 | 2m2vibrating screen | 1 |
18 | fibre sepatator | 1 |
19 | slag remover | 1 |
20 | 8m³ thickener | 1 |
21 | 380 double disc refiner | 1 |
22 | 700 impeller | 4 |
23 | 100 type pressure screen | 1 |
24 | double entry pump-150 | 1 |
25 | pulp pump-100 | 4 |
26 | pulp pump-150 | 4 |
27 | pulp pump-200 | 4 |
28 | high pressure pump-100 | 1 |
29 | chemical box | 4 |

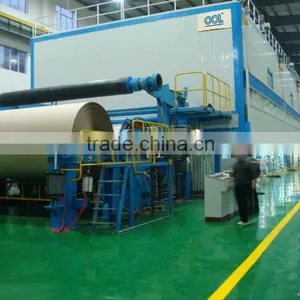

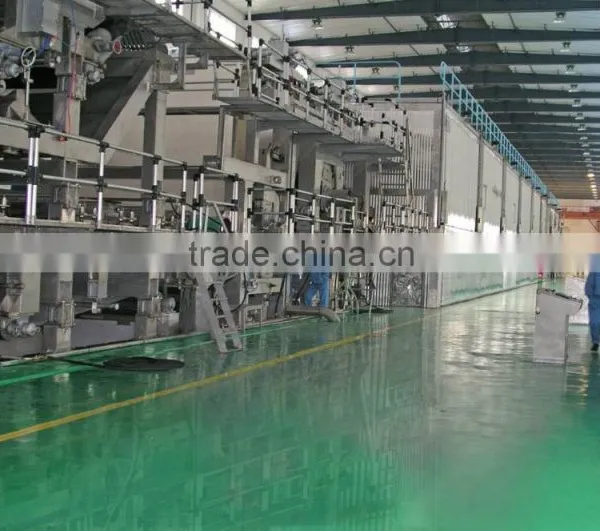

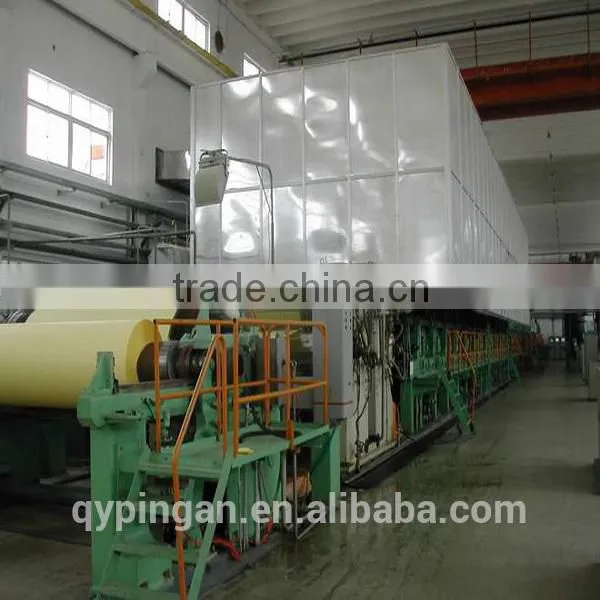

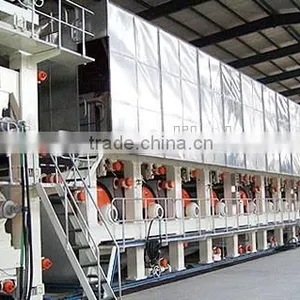

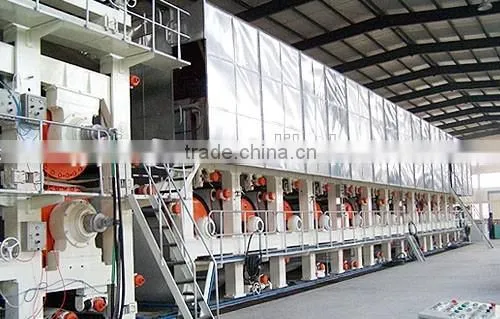

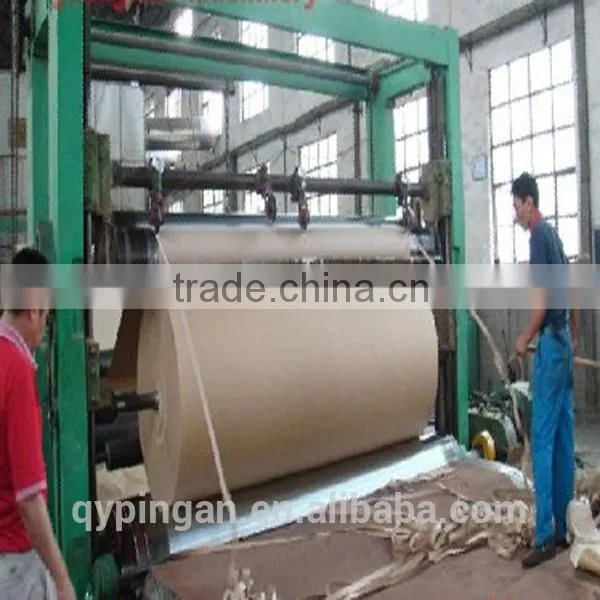

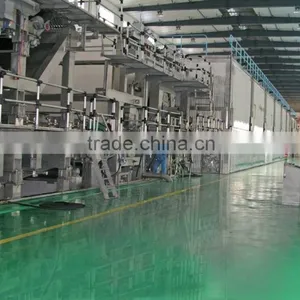

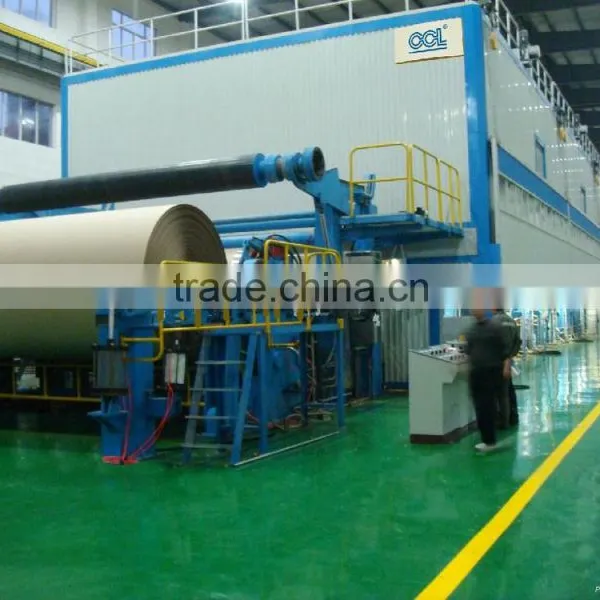

The processing equipment

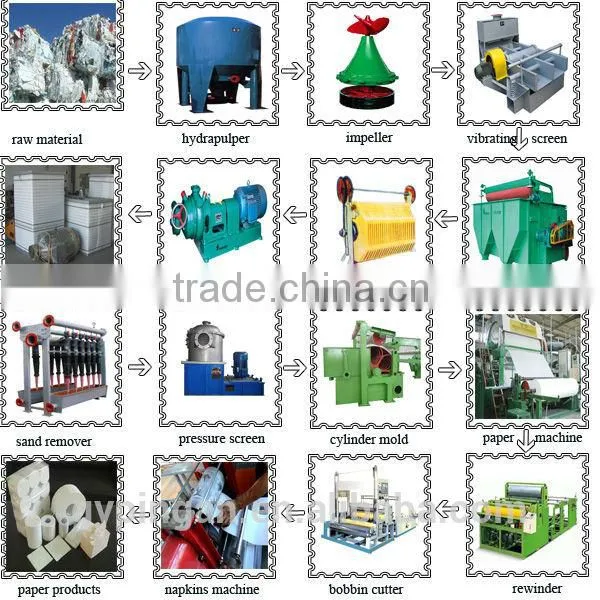

The pulp equipment flowing chart
The material of paper making

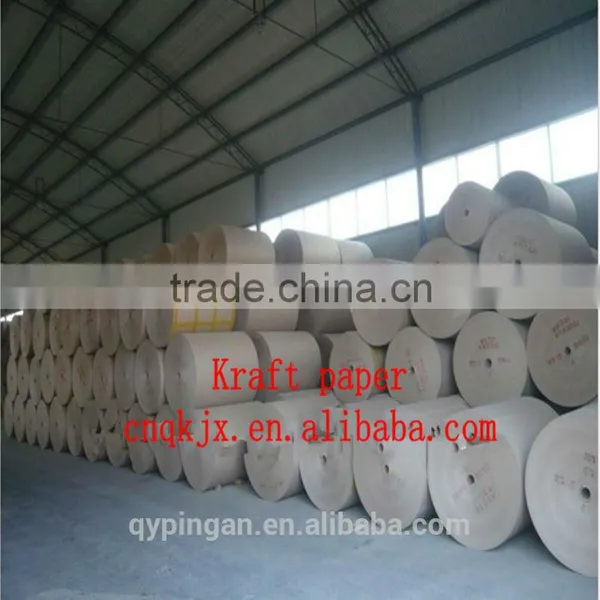

The cardboard paper
The package and shipment
Our company has 27 years experience since 1987,we passed the international quality authentication of ISO9001 system in 2004,we offer high quality products and promise a good after sale service:
1. The seller will be responsible for the installation,debugging,and production, they need to ensure it can reach the economic plan goal within planning period and offer the spare parts in time.
2. The technical training of personnel concerned: the seller will be responsible for the training on the spot of operation technical backbone from buyer. The personnel of buyer will master the related operation and repair skills after being trained. They can adjust the technical craft and deal with the fault in time.
3. We promise, after receiving the notice of quality problem from buyer, we will reply within 12 hours for common problem, and will reply within 24 hours for the important problems and will appoint the specially-assigned person to settle the problem with customer. We will offer the spare parts with discount price and faster time.
4. We promise that we will offer the lifelong tracking service.
Company Profile
Qinyang City Pingan Light Industrial Machinery Co., Ltd. is a large- scale enterprise specialized in papermaking machinery field, covering the scientific research, design, manufacturing, installation and commissioning. Established in 1968, our company covers an area of 57000m2, in which the occupation of manufacturing workshop is 16000m2 and the occupation of office and living rooms is 3500m2. We have fixed assets of 5 million USD and eight large-scale production workshops. The annual gross product of our company is 110 million dollars under the concerted effort of 160 staff on duty. In 2004, we passed the international quality authentication of ISO9001 system.
The main products of our company are multi-series cylinder mould paper machine, short fourdrinier paper machine, fourdrinier paper machine and multi-layer fourdrinier paper machine based on the paper width of 787mm, 1092mm, 1575mm, 1760mm, 1880mm, 2100mm, 2400mm, 2640mm, 2800mm, 3200mm, 3600mm, 3800mm, 4600mm. And we are also devoted to the manufacturing of pulp making equipment and paper converting equipment.
Since the reform and opening-up policy of our state, we have exported our machines and equipment in due succession to many foreign countries like Indonesia, UZ, Russia, Kyrgyzstan, KZ, Turkmenistan, Surinam, Syria, Mongolia, Mali, Uganda and Venezuela so forth, and also send to all parts of our country. The high quality of our products and our after-sales service bring us the terrific reputation and high praise from the clients at home and abroad!
Contact Us
- Qinyang City Pingan Light Industrial Machinery Co., Ltd.
- Contact nameCHENG WEI
- Phone0086-0371-86636319
- AddressLizhang Village, Wangqu Township, Qinyang
