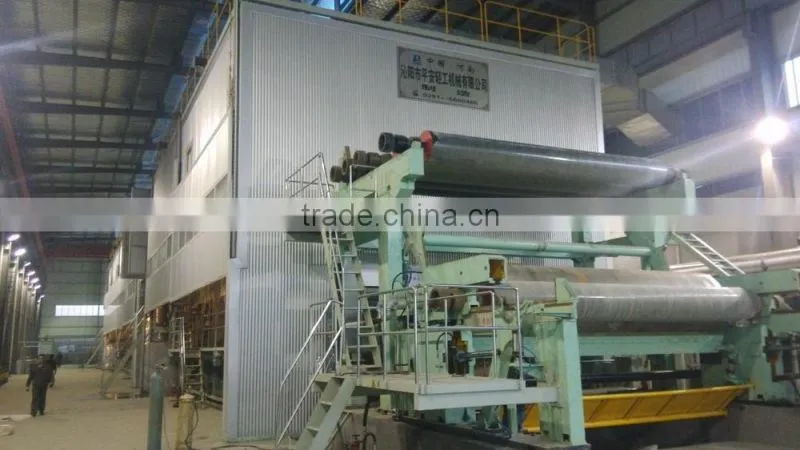

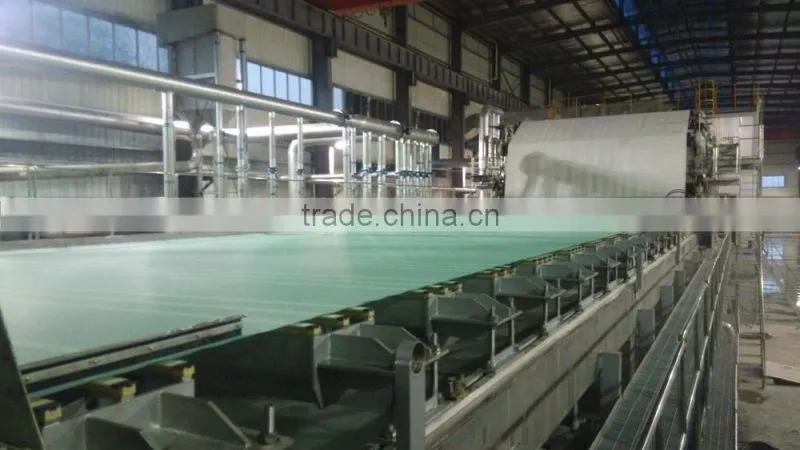

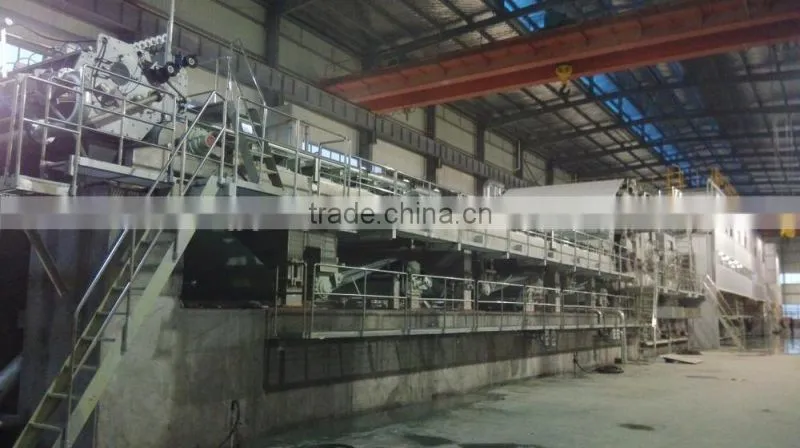

3200mm newest design copy paper production line/ writing paper/office paper production line
Output: Med-quality Culture paper, Writing Paper, Printing Paper, Newspaper
Paper weight: 30-120g/m2
Net paper width: 3200mm
Cylinder mould width: 3650mm
Design speed: 300m/min
Working speed: 250m/min
Capacity: 100T/D
Gauge: 4300mm
Pressure type: Pneumatic pressure
Drive type: Section drive with AC variable frequency
Machine Design: Square box, right hand operating machine
Raw material: wheat straw, rice straw, reed (Reference: 3T rice straw can produce 1T culture paper, 2.5T wheat straw can produce 1T culture paper, 2T reed can produce 1T culture paper)
Technical Design and Demands of Water, Electrical, Vapor
1. Technical Design:
Pulping paper making adopt a coordinated process technical proposal. It is advanced with convenient operation and management of production. Highly automatic and convenient repair. It is stable and high yield.
2. Demands of Water, Electrical and Vapor
2.1.Demands of power source
High voltage: AC1000V±10%
Low voltage: AC380V±10%
Frequency: 50HZ±1%
2.2.Compressed air for operation
Medium pressure: 0.6-0.7Mpa
The highest temperature:35℃
Quality: filtration needed
Working air pressure: above 0.6Mpa
2.3.Compressed air for instrument
Medium pressure: 0.5-0.6Mpa
The highest temperture:35℃
Quality: filtration, oil removal, dehydration needed
Working air pressure: above 0.5Mpa
3. Clear water and clarified water: purely clear and colorless water without sand, neutral PH scale.4. Vapor:
4.1.Working pressure:0.3-0.4Mpa
4.2.Testing pressure:0.8Mpa
This paper machine mainly include the air cushion head box, press section, dryer section, size press section, pope section, sole plate, mechanical drive, and electrical control etc.
1. Air cushion type head box 1 set, the slice lips width is 3500mm, step diffuser, double evener roll rectification, automatic controlling air cushion point pressure and liquid pressure difference controlling device, and the slice lips with up-right lips. Air cushion pressure and liquid level device both adopt the meter automatic controlling system.
2. Press section: three press, one is the jumbo roll balance hole press, one vacuum press, one glazing press.
3. dryer section: φ1500mm×3650mm 36 Nos, arrangement (12+12+sizing presss+12), the dryer group is equipped with up and down drying wire arrangement, pneumatic corrector, motor-driven tensioner, automatic controlling arrangement, rope feeding system .
4. size press section: 3200mm double roll sizing machine
5. Pope section: 3200mm horizontal type pope machine
6. Drive and control section: use the AC frequency converter, section drive, full figure closed loop controlling system.
Brief Introduction
Henan Qinyang city Pingan Light Industrial Machinery Co. Ltd is a large- scale enterprise specialized in papermaking machinery field, covering the scientific research, design, manufacturing, installation and commissioning. In 2004, we passed the international quality authentication of ISO9001 system.
The main products of our company are multi-series cylinder mould paper machine, short fourdrinier paper machine, fourdrinier paper machine and multi-layer fourdrinier paper machine based on the paper width of 787mm, 1092mm, 1575mm, 1760mm, 1880mm, 2100mm, 2400mm, 2640mm, 2800mm, 3200mm, 3600mm, 3800mm, 4600mm; and we are also devoted to the manufacturing of pulp making equipment and paper converting equipment.
high quality of our products and our after-sales service bring us the terrific reputation and high praise from the clients at home and abroad!
1, What kind of paper machines your factory produce?
We produce different kinds of paper machine. such as:
Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc.
Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and news printing paper etc.
Kraft paper machine which can produce Kraft paper, fluting paper, corrugated paper, Kraft liner paper, carton box paper and packing paper etc.
Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc.
2, Can you make paper mill design for us?
Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension; we will make your future paper mill design.
3, How about your machine’s quality, we worry about the quality?
We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to ISO9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on Alibaba. Our guarantee period is 1 year. If there have any quality problems, We will help you at any time.
4, What should I have to know if I want to get the quotation?
What kind of paper you want to produce(Important)
What kind of raw material you will use(Important)
The capacity you want produce per day(Important)
The paper weight you require.
The paper width you require.
5, Why your price is so high, is there any discount?
The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly. However, if you want a low quality paper machine. I tell you, we don’t produce. Our company’s principle is client first, reputation premier.
6, Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.
7, How long will it take to get the quotation?
We usually give reply within 24 hours after getting your inquiry. If you are urgent to get the quotation, please tell us by email, then we can reply you as the first priority.
8, How we visit your factory and what will be the procedure?
Our company located in Zhengzhou city, Henan province, if you take plane, it will need about 2 hours from Guangzhou city, 1.5 hours from Shanghai city and 1 hour from Beijing city. We will pick you up from Zhengzhou airport or the train station. We will take you to see our machine running in our Chinese clients' paper mill. Welcome you and your team to visit us at any time!
We will provide you all technical consultation, design the drawing and give you constructive proposal. |
We will send technicians to install and test the machine for you. |
We will train skilled workers for you. |
We will supply best after-sale service. |
1. The seller should ensure that the products they offer are brand-new and unused. The equipment should be the latest design and made of suitable material. They should design and manufacture the machine strictly abided by the technical requirements signed by two sides and national and industry standards of paper machine.
2. After the production line is installed and debugged under correct guidance of the seller, they should assure that the whole line will produce qualified products 7days after smooth operation and reach the requirements specified by technical standards within 30 days
3. The supplier will appoint 1~2 technicians to install at the spot and ensure the installation safely and duly. The buyer will be responsible for the salary and accommodation of the technicians.
4. The seller should ensure the equipment they offer are safe to use and no hidden dangerous.
5. Quality assurance date: the quality assurance will be carried out based on the contract.
6. The seller need to ensure that they will be responsible for any fault, breakdown, damage of the production line caused by the seller's responsibility of the design, technical craft, manufacturing, installation, debugging, or the fault of material during the quality assurance period set in the contract.
7. During the quality assurance period, the buyer can make request to change the goods once they find that the goods are inconsistent with what described in the contract or they have got the proof of goods’ fault.
8. The seller should ensure that the spare parts of paper machine can be replaced universally and meet the requirements of systematization, standardization, generalization.
