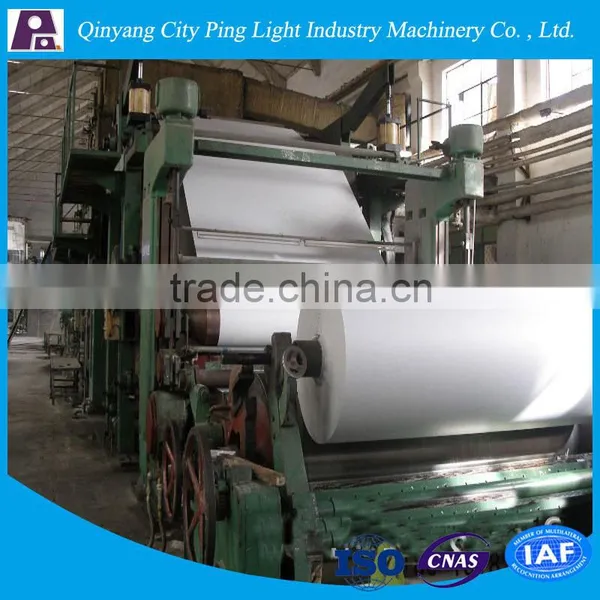

Fordrinier Wire High Speed Newspaper Making Machine With Reasonable Price
Skype:hwasong03
Whatsapp: +0086 18336357892
Output: Newsprint paper
Raw material: ONP,OINP,OMG,Printed book etc.
Paper weight: 42-65gsm
Trim paper width: 1760mm
Capacity: 10T/D
Design speed: 150m/min
Working speed: 80-120m/min
Wire width: 2150mm
Gauge: 2600mm
Drive way: section drive with AC variable frequency
1. Cylinder part: 2pcs cylinder mould: φ1500mm×2150mm, 3pcs couch roll: φ400mm×2300mm ( including 1pcs return roll). Rubber hardness is SHD38±2. Pneumatic pressure device. Equipped with 2set new type spray pressure forming machine, there is return device.
2. Press part: 1pcs stone roll: φ600mm×2300mm, 1pcs rubber roll: φ550mm×2300mm. Rubber hardness is SHD90°±2, pneumatic pressure device.
3. Dryer part: 1pcs dryer cylinder: φ2500mm×2150mm and 3pcs dryer cylinder: φ1500mm×2150mm, arrangement is (1+3). 2pcs rubber roll: φ500mm×2300mm. Rubber hardness is SHD 90±2, with pneumatic pressure device. The multi-dryer part set dryer screen device for up and down.
4. Reeling part: Cylinder paper reeling machine
5. Drive and control part: Section drive with AC variable frequency device. Full digital closed loop control system.
Equipment List with Pictures
Number |
Name of Equipment |
Power |
Quantity |
1 |
First dryer part |
18.5KW/4 |
1pcs |
2 |
Second dryer part |
10KW/4 |
1pcs |
3 |
Press part |
45KW/4 |
1pcs |
4 |
Reeling machine |
4.5KW/4 |
1pcs |
5 |
Rewinding machine |
11KW/ regulation speed |
1pcs |
6 |
Exhaust fan |
7.5kw/4 |
1pcs |
7 |
Vacuum pump |
11KW/4 |
1pcs |
8 |
Desander pump |
45KW/2 |
1pcs |
9 |
Pressure screen |
22KW/4 |
1pcs |
10 |
Pulper |
90KW/6 |
1pcs |
11 |
Vibrating screen |
5.5KW/4 |
1pcs |
12 |
Potcher |
11KW/6 |
2pcs |
13 |
Wash drum |
4KW/4 |
2pcs |
14 |
Refiner |
37KW/6 |
2pcs |
15 |
Pulper |
4KW/4 |
6pcs |
16 |
Pulper |
11KW/4 |
4pcs |
17 |
Impeller |
11KW/6 |
3pcs |
Total |
|
467KW |
30pcs |
Mainly Paper Making Machine We Can Produce:
Toilet Tissue Paper Making Machine
Technical Specification:
Output: Toilet tissue paper
Sizing forms: Vacuum mould/crescent forming device
Paper width: 1092-3600mm
Paper weight: 13-30gsm
Nominal output: 1-50T/D
Design speed: 800m/min (max)
Working speed: 700-750m/min (max)
The center distance: 1900-4800mm
Drive mode: Frequency control
Layout: Single floor
Auxiliary equipment: Breathing steam hood
A4 Paper Making Machine
Technical Specification:
Output: A4 paper
Paper width: 1760-3600mm
Paper weight: 50-80gsm
Capacity: 5-120T/D
Design speed: 450m/min (max)
Working speed: 350-420m/min(max)
The center distance: 1900-4800mm
Drive mode: Frequency control
Layout: Double layout
Auxiliary equipment: Closed steam hood
Newsprint Paper Making Machine
Technical Specification:
Output: Newsprint paper
Paper width: 2400-3880mm
Paper weight: 50-80gsm
Production: 10-150T/D
Design Speed: 400m/min (max)
Working Speed: 350-400m/min(max)
Transmission form: Frequency control
Layout: Single arrangement
High-strength Corrugated Paper Making Machine
Output: High-strength corrugated paper
Paper width: 1575-5600mm
Paper weight: 80-130gsm
Production: 10-400T/D
Design speed: 500m/min (max)
Work speed: 450-500m/min
Drive way: Frequency control
Layout: Single arrangement
Auxiliary equipment: Closed hood
Board Paper Making Machine
Output: Bobbin paper/ board paper
Paper width: 1575-4800mm
Paper weight: 450-800gsm
Production: 400T/D
Design speed: 150m/min
Working speed: 80-130m/min
Drive way: Frequency control
Layout: Single floor
Factory information:
Raw Material:
1. We will send technicians to installand test the machine for you.
2. We will train skilled workers for you.
3. We will supply best after-sale service.
We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time.
| FAQ: | ||||||||
| 1. What kind of paper machine your factory produce? | ||||||||
| We produce different kinds of paper machine. such as: | ||||||||
| a.Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc. | ||||||||
| b.Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and newsprinting paper etc. | ||||||||
| c.Packing paper machine which can produce kraft paper, fluting paper, corrugated paper, kraft liner paper, carton box paper and packing paper etc | ||||||||
| d.Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc. | ||||||||
| 2. Can you make paper mill design for us? | ||||||||
| Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension, we will make your future paper mill design. | ||||||||
| 3. How about your machine’s quality, we worry about the quality? | ||||||||
| We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time. | ||||||||
| 4. What should I have to know if I want to get the quotation? | ||||||||
| 1.What kind of paper you want to produce(main important) | ||||||||
| 2.What kind of raw material you will use(main important) | ||||||||
| 3.The capacity you want produce per day(main important) | ||||||||
| 4.The paper weight you require. | ||||||||
| 5.The paper width you require. | ||||||||
| 5. Why your price is so high, is there any discount? | ||||||||
The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly. However, if you want a low quality paper machine. I tell you, we don’t produce. Our company’principle is client first, reputation premier. | ||||||||
| 6.Could your engineer can teach and train our workers and stay in our factory for long time? | ||||||||
| Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary. | ||||||||
| 7.How long will it take to get the quotation? | ||||||||
| We usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation, please tell us by email, then we can reply you as the first priority. | ||||||||
| 8.How we visit your fatory and what will be the proedure? | ||||||||
| Our company located in Zhengzhou city, henan province, if you take plane, it will need about 2 hours from Guangzhou city, 1.5 hours from Shanghai city and 1 hour from Beijing city. We will pick you up from Zhengzhou airport or the train station. We will take you to see our machine running in our chinese clients' paper mill. Welcome you and your team to visit us at any time! |
