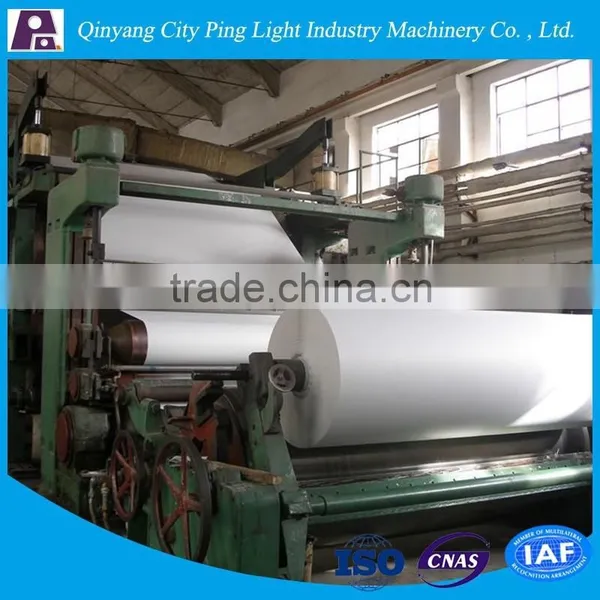

Printing Copy Paper Making Machine from Wood Pulp and Waste Old Book Paper
Skype:hwasong03
Chapter 1 Technical Parameter
Output: Writing paper, Copy Paper
Raw material: Waste old books, Wood pulp.
Paper width: 1092mm
Cylinder width: 1450mm
Design speed: 150m/min
Working speed: 60-100m/min
Capacity: 3-4TPD
Guage: 1800mm
Pressure type: Pneumatic pressure
Drive type: Section drive with AC variable frequency
Machine design: Square box, right hand operating machine
Chapter 2 Technical Design and Demands of Water, Electrical, Vapor
- 1. Technical Design:
Pulping paper making adopt a coordinated process technical proposal. It is advanced with convenient operation and management of production. Highly automatic and convenient repair. It is stable and high yield.
- 2. Demands of Water, Electrical and Vapor
2.1.Demands of power source
High voltage: AC1000V±10%
Low voltage: AC380V±10%
Frequency: 50HZ±1%
2.2.Compressed air for operation
Medium pressure: 0.6-0.7Mpa
The highest temperature:35℃
Quality: filtration needed
Working air pressure: above 0.6Mpa
2.3.Compressed air for instrument
Medium pressure: 0.5-0.6Mpa
The highest temperture:35℃
Quality: filtration, oil removal, dehydration needed
Working air pressure: above 0.5Mpa
- 3. Clear water and clarified water: purely clear and colorless water without sand, neutral PH scale.
- 4. Vapor:
4.1.Working pressure:0.3-0.4Mpa
4.2.Testing pressure:0.8Mpa
Chapter3 Main Structure of Equipment
- Cylinder Part: 2pcs cylinder: φ1000mm×1450mm, 2pcs couch roll: φ380mm×1500mm, Rubber hardness: HSD 30±2°, 1pcs return roll: Φ380mm×1000mm. Rubber hardness: HSD 90±2°. There are two set cylinder vat.
- Press Part: 1pcs stone roll: :φ400mm×1500mm, 1pcs rubber roll: φ350mm×1500mm, Rubber hardness: SHD 90±2 °. Pneumatic pressure type.
- Dryer Part: 2pcs dryer: φ1500mm×1450mm, 2pcs rubber roll: φ350mm×1500mm, Rubber hardness: SHD: 90±2°, Pneumatic pressure type. Second cylinder part have dry vat device.
- Press Polish Part: 1092mm three-roller press polish machine
- Reeling Part: 1092mm cylinder-type reeling machine
- Drive and Control Part: Adopting AC frequency conversion speed, drive step by step, digital closed loop control system.
Chapter4 Configurations of drive part, frequency converter and power distribution cabinet
1.Technical parameter of drive part:
1 |
First dryer part |
350-speed reducer |
10KW/4 |
2 |
Press part |
400-speed reducer |
22KW/4 |
3 |
Multi cylinder part |
350-speed reducer |
7.5KW/4 |
4 |
Press polish part |
350-speed reducer |
5.5KW/4 |
5 |
Reeling part |
250-speed reducer |
3KW/4 |
2. Technical parameter of frequency converter
2.1. Apply standard GGD control cabinet, Japanese SAMCO frequency converter and
High - quality and low-voltage apparatus.
2.2.Dynamo distribution point:10KW, 22KW,7.5KW,5.5KW, 3KW, Five point, total 48KW
3. Configuration of Eletric Cabinet
1.electric cabinet for potcher | ||
7.5KW 1set |
4KW 2set |
|
2. electric cabinet for double entry pump | ||
22KW 1set |
7.5KW 1set |
|
3. electric cabinet for impeller | ||
7.5KW 4set |
3KW 4set |
|
4. electric cabinet for pulp pump | ||
3KW 2set |
11KW 3set |
|
5. electric cabinet for vacuum pump | ||
5.5KW 1set |
4KW 2set |
|
6. electric cabinet for double disk refiner | ||
37KW 1set |
||
7. electric cabinet for paper cutter | ||
4KW 1set |
||
Chapter 5 Quality Promise
1. The seller should ensure that the products they offer are brand-new and unused. The equipment should be the latest design and made of suitable material. They should design and manufacture the machine strictly abided by the technical requirements signed by two sides and national and industry standards of paper machine.
2. After the production line is installed and debugged under correct guidance of the seller, they should assure that the whole line will produce qualified products 7days after smooth operation and reach the requirements specified by technical standards within 30 days
3. The supplier will appoint 1~2 technicians to install at the spot and ensure the installation safely and duly. The buyer will be responsible for the salary and accommodation of the technicians.
4. The seller should ensure the equipment they offer are safe to use and no hidden dangerous.
5. Quality assurance date: the quality assurance will be carried out based on the contract.
6. The seller need to ensure that they will be responsible for any fault, breakdown, damage of the production line caused by the seller's responsibility of the design, technical craft, manufacturing, installation, debugging, or the fault of material during the quality assurance period set in the contract.
7. During the quality assurance period, the buyer can make request to change the goods once they find that the goods are inconsistent with what described in the contract or they have got the proof of goods’ fault.
8. The seller should ensure that the spare parts of paper machine can be replaced universally and meet the requirements of systematization, standardization, generalization.
Factory information:
Raw Material:
Certification:
1. We will send technicians to installand test the machine for you.
2. We will train skilled workers for you.
3. We will supply best after-sale service.
We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time.
| FAQ: | ||||||||
| 1. What kind of paper machine your factory produce? | ||||||||
| We produce different kinds of paper machine. such as: | ||||||||
| a.Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc. | ||||||||
| b.Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and newsprinting paper etc. | ||||||||
| c.Packing paper machine which can produce kraft paper, fluting paper, corrugated paper, kraft liner paper, carton box paper and packing paper etc | ||||||||
| d.Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc. | ||||||||
| 2. Can you make paper mill design for us? | ||||||||
| Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension, we will make your future paper mill design. | ||||||||
| 3. How about your machine’s quality, we worry about the quality? | ||||||||
| We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time. | ||||||||
| 4. What should I have to know if I want to get the quotation? | ||||||||
| 1.What kind of paper you want to produce(main important) | ||||||||
| 2.What kind of raw material you will use(main important) | ||||||||
| 3.The capacity you want produce per day(main important) | ||||||||
| 4.The paper weight you require. | ||||||||
| 5.The paper width you require. | ||||||||
| 5. Why your price is so high, is there any discount? | ||||||||
The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly. However, if you want a low quality paper machine. I tell you, we don’t produce. Our company’principle is client first, reputation premier. | ||||||||
| 6.Could your engineer can teach and train our workers and stay in our factory for long time? | ||||||||
| Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary. | ||||||||
| 7.How long will it take to get the quotation? | ||||||||
| We usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation, please tell us by email, then we can reply you as the first priority. | ||||||||
| 8.How we visit your fatory and what will be the proedure? | ||||||||
| Our company located in Zhengzhou city, henan province, if you take plane, it will need about 2 hours from Guangzhou city, 1.5 hours from Shanghai city and 1 hour from Beijing city. We will pick you up from Zhengzhou airport or the train station. We will take you to see our machine running in our chinese clients' paper mill. Welcome you and your team to visit us at any time! |
