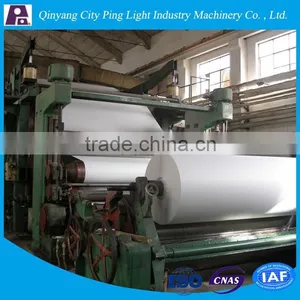

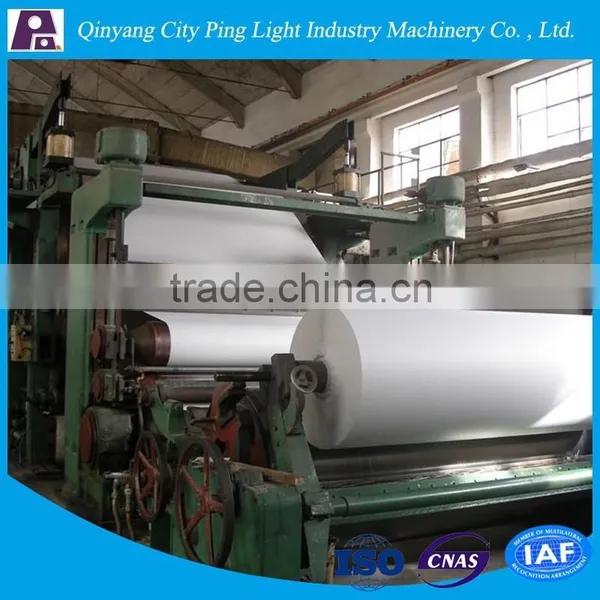

Qinyang Pingan Cellulose Paper Making Machine Waste Paper Making Machine

Name: Qinyang Pingan Cellulose Paper Making Machine Waste Paper Making Machine
Brand: Pingan
Price: USD $280,000 - 380,000 / Set

FOB Price

USD $280,000 - $380,000 / Set

1 Set(Min.Order)

Supply Ability 0 per Month
Port Tianjin Qingdao Shanghai Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Product Type:	Toilet Tissue	Processing Type:	Other, paper making machine
Place of Origin:	Henan, China	Brand Name:	Pingan	Model Number:	1880mm
Voltage:	can be specified	Power(W):	380V	Dimension(LWH):	According to each type
Weight:	According to each type	Certification:	Other, ISO9001:2008	Warranty:	12 months
After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

Standard Export Packing

Product Description

Qinyang Pingan Cellulose Paper Making Machine Waste Paper Making Machine

Skype:hwasong03

Product Description

Technical Parameter

Output: Writing and printing paper machine

Raw Material: Recycled white paper( with ink ) mixed with original wood pulp

Paper Weight: 40-80gsm

Net Paper Width: 2000mm

Cylinder Width: 2300mm

Design Speed: 150m/min

Working Speed: 60-120m/min

Capacity: 15T/D

Gauge: 2800mm

Pressure type: pneumatic pressure

Coating Properties: Pressure type forming cylinder machine

Drive type: section drive with AC variable frequency

Machine design: square box type, right-side operation machine

Technical Design and Demands of Water, Electrical, Vapor

1.Technical Design:

Pulping paper making adopt a coordinated process technical proposal. It is advanced with convenient operation and management of production. Highly automatic and convenient repair. It is stable and high yield

2. Demands of Water, Electrical and Vapor

2.1.Demands of power source

High voltage: AC1000V±10%

Low voltage: AC380V±10%

Frequency: 50HZ±1%

2.2.Compressed air for operation

Medium pressure: 0.6-0.7Mpa

The highest temperature:35℃

Quality: filtration needed

Working air pressure: above 0.6Mpa

2.3.Compressed air for instrument

Medium pressure: 0.5-0.6Mpa

The highest temperture:35℃

Quality: filtration, oil removal, dehydration needed

Working air pressure: above 0.5Mpa

3.Clear water and clarified water: purely clear and colorless water without sand, neutral PH scale.

4.Vapor:

4.1.Working pressure:0.3-0.4Mpa

4.2.Testing pressure:0.8MPa

Configurations of drive part, frequency converter and power distribution cabinet

Technical parameter of drive part:

1	First dryer part	400-speed reducer	18.5KW/4
2	Press part	500-speed reducer	40 KW/4
3	Multi cylinder part	400-speed reducer	11 KW/4
4	Press polish part	350-speed reducer	10 KW/4
5	Reeling part	350-speed reducer	5.5 KW/4

2. Technical parameter of frequency converter

2.1.Apply standard GGD control cabinet, Japanese SAMCO frequency converter and

high-quality and low-voltage apparatus.

2.2.Dynamo distribution point:18.5KW, 40KW, 11KW, 10KW, 5.5KW,total five point:84KW.

2.3.Digital signal control director:Completely digital display based on data, synchronous change and fine adjustment of speed and automatic memory.

3.Configuration of Eletric Cabinet

1. Eletric cabinet for pulper
90KW 1set	22KW1 set
2. Eletric cabinet for separator
22KW 1set, 4KW 1set	7.5KW 1set
3. Eletric cabinet for potcher
11KW 4 set	4KW 4 set
4. Eletric cabinet for Impeller
11KW 6 set	4KW 6 set
5. Eletric cabinet for Pulp pump
22KW 3 set
6. Eletric cabinet for Vacuum pump
22KW 1set	5.5KW2set
7. Eletric cabinet for double entry-pump
30KW 1set	11KW 1set
8.Eletric cabinet for rewinding machine
22KW 1set	4KW 1set

Full Set Motor Equipment

Number	Equipment	Power	Quantity/pcs
1	First dryer part	18.5KW/4	1set
2	Press part	40KW/4	1set
3	Multi-dryer part	11KW/4	1set
4	Calendering	10KW/4	1set
5	Reeling machine	5.5KW/4	1set
6	Rewinding machine	22KW/speed regulation	1set
7	Cutter machine	4KW/4	1set
8	Exhaust fan	5.5KW/4	1set
9	Vacuum pump	22KW/4	1set
10	Air compressor	5KW/4	1set
11	Pulper	90KW/6	1set
12	Vibrating screen	4KW/4	1set
13	Defibrator	22KW/4	1set
14	Thickner	7.5KW/4	1set
15	Potcher	11KW/6	4set
16	Washer	4KW/4	4set
17	Impeller	11KW/6	6set
18	Double-entry pump	30KW/2	1set
19	Pressurized screen	11KW/4	1set
20	Pulp pump	4KW/4	6set
21	Pulp pump	22KW/4	4set
22	Double disk refiner	37KW/6	1set
		583KW	41set

All the Equipment with Picture and Price for Reference

Number	Equipment	Quantity/set
1	1880mm double cylinder multi wire paper making machine	1set
2	Steam hood for dry	1set
3	Exhaust fan	1set
4	16-vacuum pump	1set
5	Suction box	3set
6	Air compressor	1set
7	Pressure cylinder former	2set
8	1880mm three-roller calendering machine	1set
9	1880mm cylinder type reeling machine	1set
10	1880mm rewinding machine	1set
11	1880mm single cutter	1set
12	Reeling roll	10set
13	mechanical transmission part	Full set
14	Basic part	Full set
15	electric control part	Full set
16	All the working platform, staircases and handrails	Full set
17	8m³Hi-con hydropulper	1set
18	2gsm vibrating screen	1set
19	ZPFF defibering machine	1set
20	14gsm cylinder thickener	1set
21	35m³potcher	4set
22	Φ750 impeller	6set
23	SH-150 double entry pump	1set
24	606 sand separator	1set
25	50 pressurized screen	1set
26	KS-100 pulp pump	6set
27	KS-200 pulp pump	4set
28	380 double disk refiner	1set

Factory information:

Raw Material:

Certification:

Our Services

1. We will send technicians to installand test the machine for you.

2. We will train skilled workers for you.

3. We will supply best after-sale service.

Company Information

We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time.

FAQ:
1. What kind of paper machine your factory produce?
We produce different kinds of paper machine. such as:
a.Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc.
b.Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and newsprinting paper etc.
c.Packing paper machine which can produce kraft paper, fluting paper, corrugated paper, kraft liner paper, carton box paper and packing paper etc
d.Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc.

2. Can you make paper mill design for us?
Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension, we will make your future paper mill design.

3. How about your machine’s quality, we worry about the quality?
We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time.

4. What should I have to know if I want to get the quotation?
1.What kind of paper you want to produce(main important)
2.What kind of raw material you will use(main important)
3.The capacity you want produce per day(main important)
4.The paper weight you require.
5.The paper width you require.

5. Why your price is so high, is there any discount?
The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly. However, if you want a low quality paper machine. I tell you, we don’t produce. Our company’principle is client first, reputation premier.

6.Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.

7.How long will it take to get the quotation?
We usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation, please tell us by email, then we can reply you as the first priority.

8.How we visit your fatory and what will be the proedure?
Our company located in Zhengzhou city, henan province, if you take plane, it will need about 2 hours from Guangzhou city, 1.5 hours from Shanghai city and 1 hour from Beijing city. We will pick you up from Zhengzhou airport or the train station. We will take you to see our machine running in our chinese clients' paper mill. Welcome you and your team to visit us at any time!

Company Profile

Qinyang City Pingan Light Industrial Machinery Co., Ltd.

Qinyang City Pingan Light Industrial Machinery Co., Ltd. is a large- scale enterprise specialized in papermaking machinery field, covering the scientific research, design, manufacturing, installation and commissioning. Established in 1968, our company covers an area of 57000m2, in which the occupation of manufacturing workshop is 16000m2 and the occupation of office and living rooms is 3500m2. We have fixed assets of 5 million USD and eight large-scale production workshops. The annual gross product of our company is 110 million dollars under the concerted effort of 160 staff on duty. In 2004, we passed the international quality authentication of ISO9001 system.

The main products of our company are multi-series cylinder mould paper machine, short fourdrinier paper machine, fourdrinier paper machine and multi-layer fourdrinier paper machine based on the paper width of 787mm, 1092mm, 1575mm, 1760mm, 1880mm, 2100mm, 2400mm, 2640mm, 2800mm, 3200mm, 3600mm, 3800mm, 4600mm. And we are also devoted to the manufacturing of pulp making equipment and paper converting equipment.

Since the reform and opening-up policy of our state, we have exported our machines and equipment in due succession to many foreign countries like Indonesia, UZ, Russia, Kyrgyzstan, KZ, Turkmenistan, Surinam, Syria, Mongolia, Mali, Uganda and Venezuela so forth, and also send to all parts of our country. The high quality of our products and our after-sales service bring us the terrific reputation and high praise from the clients at home and abroad!
