Jiaozhou pe pipe extrusion line /pe pipe extruder machine
- 30 Set / Sets per Month
- qingdao port
- T/T Credit Card
You May Like
-
Qingdao HDPE PE pipe production line for water supply
-
Drinking straw production line /Drinking straw extrusion line
-
full automatic drinking straw making machine/drinking straw production line
-
PPR Pipe Production Line/Water Pipe Making Machine
-
CE&ISO Certification PVC Pipe Making Machine/ 100-250mm Water Pipe Extruder Machinery
-
Single-screw Screw Design and New Condition PP PE Drinking Straw /Plastic Drinking Straw Extruder Machinery
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | automatic | Place of Origin | Shandong, China | |
| Brand Name | ASUN | Model Number | AS | |
| Voltage | 220/380V | Power(W) | 90KW | |
| Dimension(L*W*H) | 20M | Weight | 5T | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Application of hdpe plastic pipe making machine

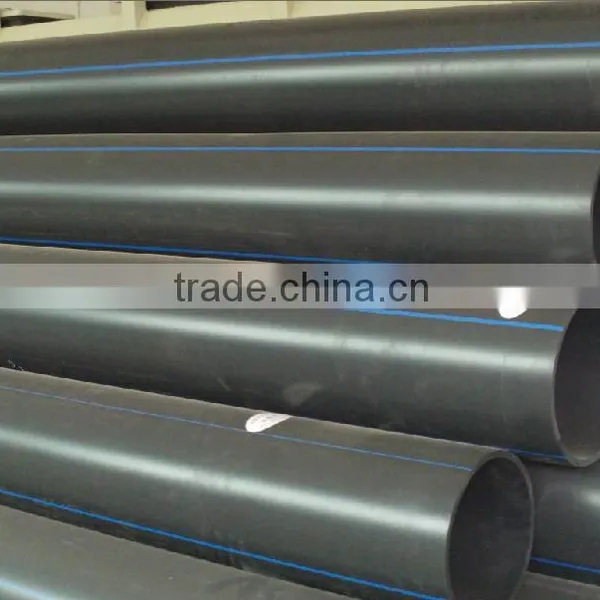

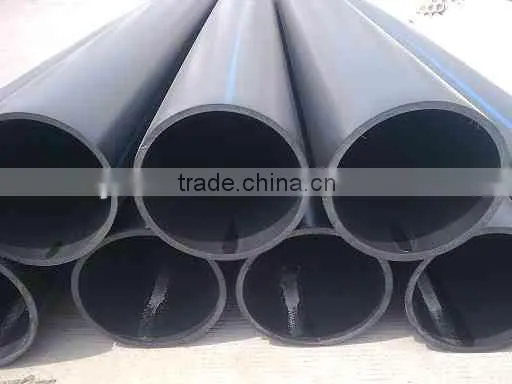

PPR/PP/PE pipe extrusion line is capable of manufacturing different sorts of pipes such as PPR cold/hot water pipes, PE pipes, silicone pipes.
This production line can also produce mono-color pipe with one extruder and multi-color pipe with co-extrusion die head and more extruders.
No | item | parameter |
1.2.1 | Suitable resin | PP PE PPR material |
1.2.2 | Pipe diameter scope | 16-630mm |
1.2.3 | Line speed | 1.5-10 m/min |
1.2.4 | Max output | 150-300 kg/h (PE100) |
1.2.5 | Outer dimension | 49 *2.6 *3 m |
1.2.6 | Weight | 8.6 T |
1.2.7 | Total power | 167 kW-350kw |
1.2.8 | Used power | 117kW |
1.2.9 | Air consumption | 0.6m3/min, voltage:0.2-0.7 MPa |
1.2.10 | Volume of water cycling | 0.8m3/min |
1.2.11 | Needed workshop | 400 m2 |
1.2.12 | Power supply | 380V±10%,50Hz; controlling power supply: 220V±10% |
Advantage of hdpe plastic pipe making machine
The main machine adopts screws specially used for polyolefin. It possesses features of high production, good plasticization and stable extruding.
It is equipped with automatic vacuum appending machines and automatic constant temperature drying hopper.

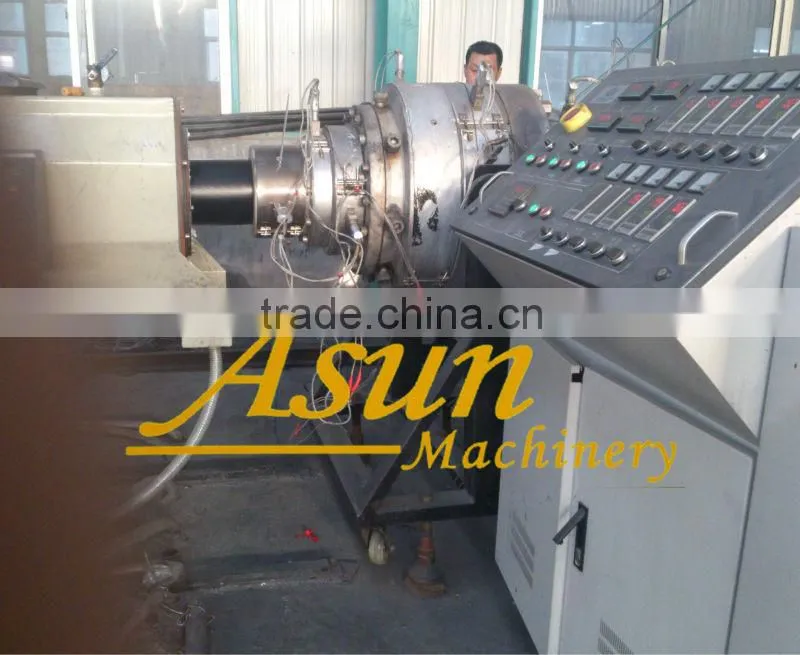

Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

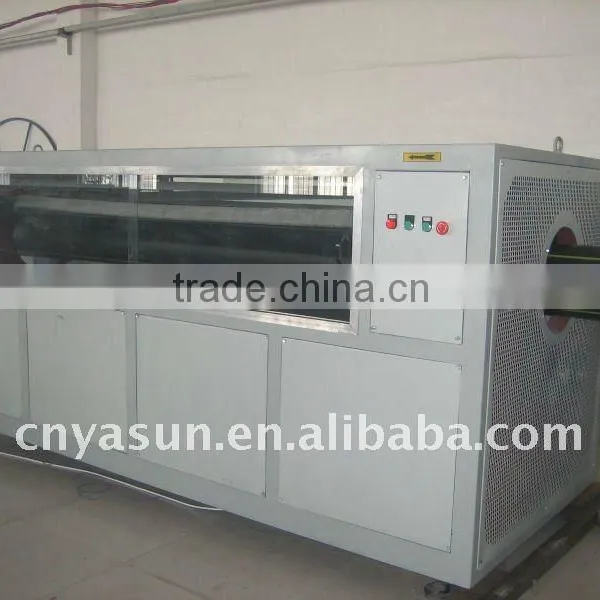

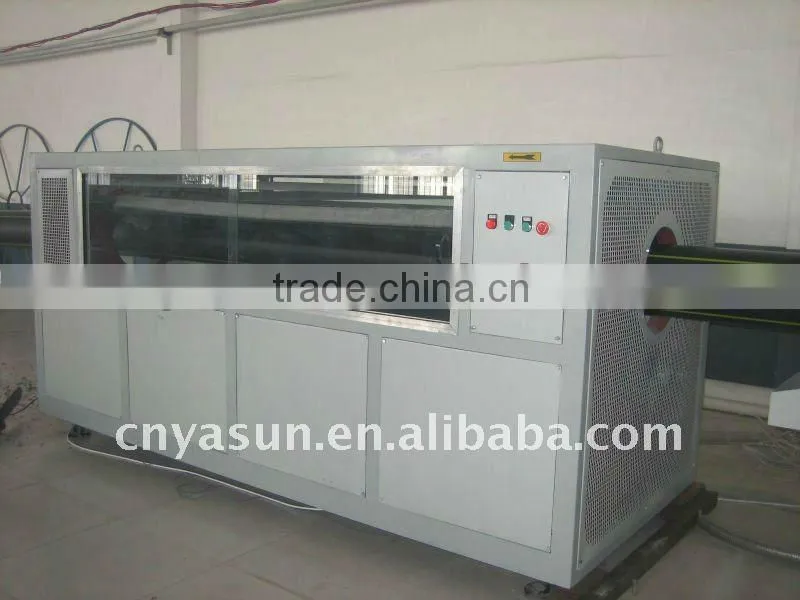

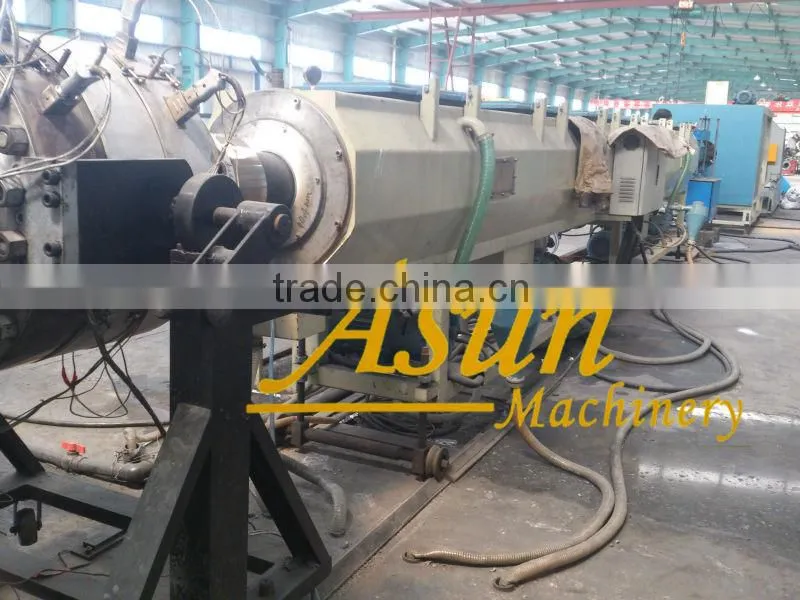

Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.
Caterpillar of the hauling machine adopts anti-abrasion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

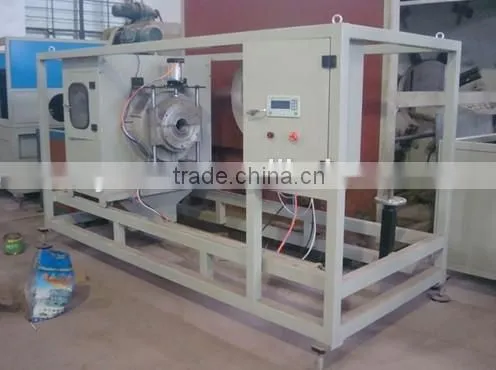

New generation auto dust-free cutting blade realizes smooth cutting surface, high precision and low noise
Technical parameter of hdpe plastic pipe making machine
model | SJ65B | SJ90B |
Production speed(m/min) | 4-12 | 2-8 |
Screw speed(n/min) | 40-90 | 30-90 |
Production capacity (kg/h) | 120 | 200 |
Pipe range(mm) | 20-63 | 63-110 |
Main parts of hdpe plastic pipe making machine

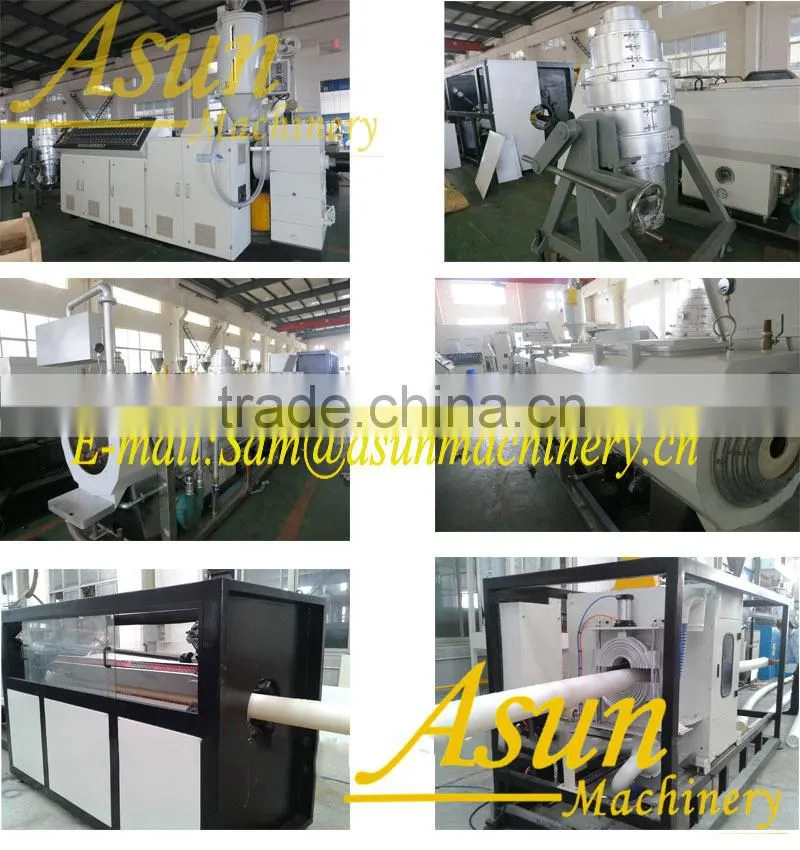

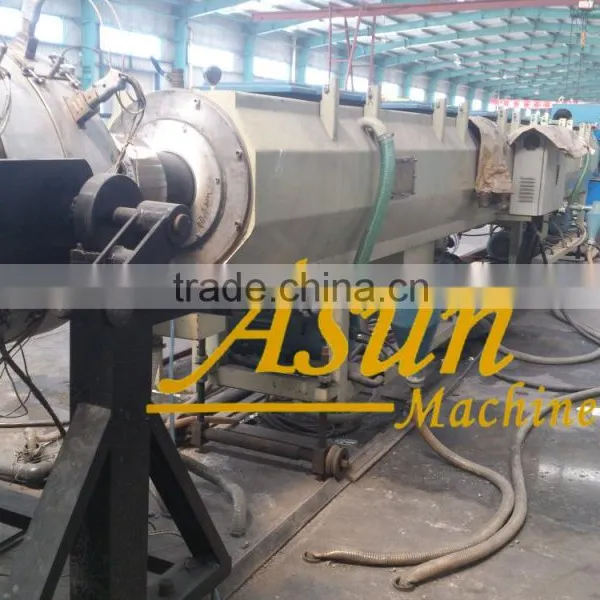

The production line consists of control system, single or multi-extruder, mould, calibration unit,
haul-off unit, planetary cutter and stacker.
