Qingdao HDPE PE Pipe Production Line for Water Supply
US$ 30,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Drinking Straw Production Line /Drinking Straw Extrusion LineUS$ 12,000 - 60,000MOQ: 1 Set -
Full Automatic Drinking Straw Making Machine/drinking Straw Production LineUS$ 12,000 - 60,000MOQ: 1 Set
-
PPR Pipe Production Line/Water Pipe Making MachineUS$ 30,000 - 45,000MOQ: 1 Set
-
CE&ISO Certification PVC Pipe Making Machine/ 100-250mm Water Pipe Extruder MachineryUS$ 50,000 - 70,000MOQ: 1 Set
-
Single-screw Screw Design and New Condition PP PE Drinking Straw /Plastic Drinking Straw Extruder MachineryUS$ 10,000 - 20,000MOQ: 1 Set
Condition
New
Application
Pipe
Plastic Processed
PE
Screw Design
Single-screw
Automatic Grade
automatic
Place of Origin
Shandong, China
Brand Name
ASUN
Model Number
AS
Voltage
220/380V
Power(W)
90KW
Dimension(L*W*H)
20M
Weight
5T
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
HDPE pipe machine for water supply
Introduction
The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new style grooves. All of these offer good plastification and mixing effect. Special design of basket die head of for HDPE(PP,ABS) large diameter pipe with thick wall offer lower melting temperature, good mixing, lower pressure of cavity ,and stable production.
Special design for sizing and cooling system by using film and water ring to cool HDPE(PP,ABS)material, which can fit for the requirement of HDPE(PP,ABS).And the design can ensure the stability of diameter and roundness when producing the pipe with thick wall.

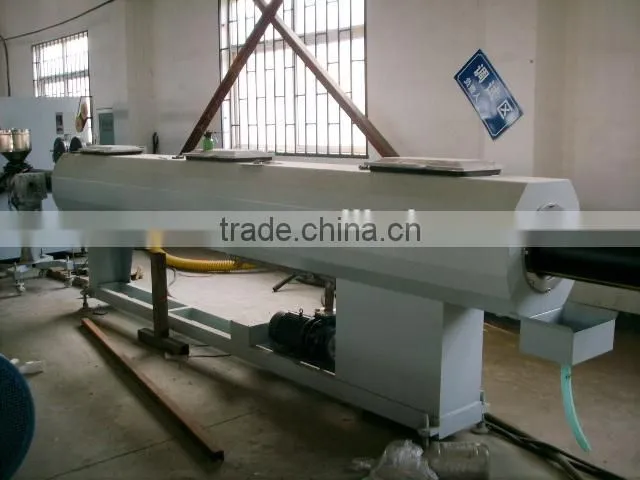

Special design vacuum sizing tank can ensure the stability of size and roundness, Speed controllers are used in extruder, haul-off to offer stability and precision.
The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.
Detailed Product Description
1.single screw extruder, very suitable to process PE resin with high capacity, max capacity 1000kg/h
2.The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
3.Diameter range is 16mm-800mm, which can be changed into inch standard to meet clients special requirement.
Technical data
Pipe range |
16-63mm |
20-110mm |
75-160mm |
90-250mm |
110-315mm |
160-450mm |
315-630mm |
500-800mm |
Extruder |
¢45mm |
¢60mm |
¢75mm |
¢75mm |
¢90mm |
¢90mm |
¢120mm |
¢150mm |
Extruder power |
AC30kw |
DC75kw |
DC110kw |
DC110kw |
DC160kw |
DC160kw |
DC280kw |
DC335kw |
Extrusion capacity |
60-100kg |
100-150kg |
250-300kg |
250-300kg |
350-400kg |
350-400kg |
650-700kg |
850-900kg |
Max. Production speed |
10m/min |
6m/min |
6 m/min |
6 m/min |
3 m/min |
1.2m/min |
0.9m/min |
0.7m/min |
