Specifications

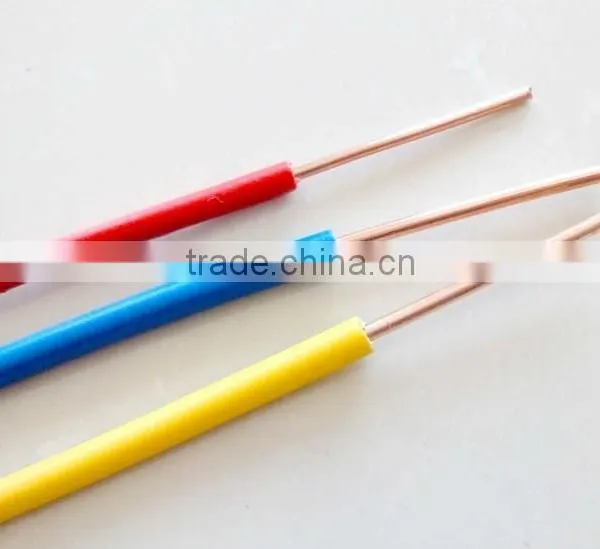

copper core electric power cable
1.cable size:2.5mm
re :3pcs
3.anti wear
4. insulate material:PVC

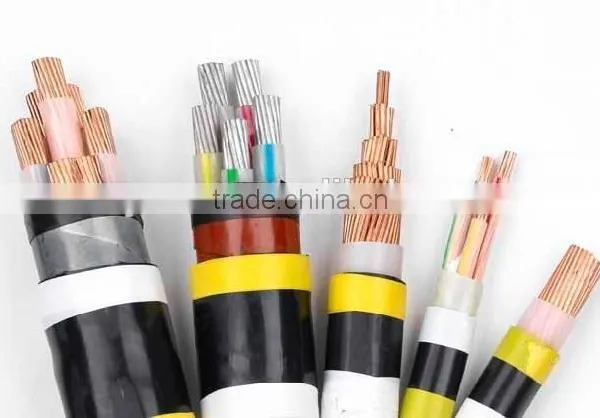

copper/aluminum core electric power cable





Specification: Solid or stranded Copper Conductor PVC Insulated and PVC Sheathed Cables. (two cores or three cores)

Standard: 227 IEC, BS6004, AS/NZS5000.2,BS 60502

Conductor: Copper Conductor

Rated Voltage: 300/500V, 450/750V

Color: Different Color Available

Package: Coils, Plywood reel

Application: The PVC-Insulated PVC-Sheathed Electric Cables are mainly used for fixed installation of electric instruments, building wirings and electric power and lighting devices for A. C. Rated voltage up to and including 450/750V

Flat Cables Based on Standard IEC
re	Normal area mm2	Conductor Structure mm	Aver.Thickness of insulation mm	Aver.Thickness of sheath mm	Approx. overall diameter mm
2 cores	1.0	1x1.13	0.60	0.90	4.1x6.5
	1.5	1x1.38	0.70	0.90	4.6x7.4
	2.5	1x1.78	0.80	1.00	5.4x8.8
	4.0	7x0.83	0.80	1.00	6.1x10.2
		1x2.25	0.80	1.00	5.9x9.7
3 cores	1.0	1x1.13	0.60	0.90	4.1x8.8
	1.5	1*1.38	0.70	0.90	4.6x10.1
	2.5	1x1.78	0.80	1.00	5.4x12.1
	4.0	7x0.83	0.80	1.10	6.3x14.5
		1*2.25	0.80	1.10	6.1x13.8

Flat Cables Based on Standard AS/NZS5000.2
Number of  cores &  Normal area  mm2	Conductor Structure (main core) mm	Earth core structure mm	Aver.Thickness of insulation mm	Aver.Thickness of sheath mm	Approx.  overall diameter mm
2x1.0+E	1x1.13	1x0.85	0.60	0.90	4.1x7.3
2x1.5+E	1x1.38	1x1.13	0.70	0.90	4.6x8.5
2x2.5+E	1x1.78	1x1.38	0.80	1.00	5.4x10.1
2x4.0+E	1x2.25	1x1.78	0.80	1.00	5.9x11.5
2x6.0+E	1x2.76	1x1.78	0.80	1.10	6.6x12.7

Double Core Flat Cables Based on Standard BS6004
SPEC.		Normal area mm2	Conductor Structure mm	Aver.Thickness of insulation mm	Aver.Thickness of sheath mm	Approx.  overall dlameter mm
2 cores	H07V-R	1.50	7x0.52	0.70	1.30	5.6x8.5
		2.50	7x0.68	0.80	1.00	5.6x9.3
		4.00	7x0.83	0.80	1.50	7.1x11.2
		6.00	7x1.04	0.80	1.20	7.1x11.8
		10.00	7x1.35	1.00	1.20	8.5x14.5
	Size30/29	0.21	3x0.30	0.70	1.00	4.0x6.1
	Size70/29	0.50	7x0.30	1.30	0.90	5.3x8.8

packing in rolls or in reels
