Heat Shrinkable Terminations,Cross-linked Cable Indoor and Outdoor Termination
US$ 100 - 200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
ASUN
Model Number:
QS-1
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heat Shrink Tube Cable Splice Kit and Cable JointUS$ 100 - 200MOQ: 1 Set -
Heat Shrink Tube for Cable TerminationUS$ 100 - 200MOQ: 1 Set
-
Silicon Rubber Cold Shrink Tube Cable TerminationUS$ 10 - 400MOQ: 1 Set
-
64/110kv,76/132kv Premolded Cold-shrinkable Outdoor Cable TerminationUS$ 10 - 400MOQ: 1 Set
-
8.7/15kv 70-120mm2/ 3core Indoor Heat Shrinkable Termination KitUS$ 100 - 200MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
ASUN
Model Number
QS-1
Conductor Material
Copper
Insulation Material
Rubber
Jacket
Rubber
Number of Conductors
3
Application
1KV
Specifications
heat shrinkable termination1. 3 cores of cable
2. good insulation
3. antiproof
4. anti high temperture

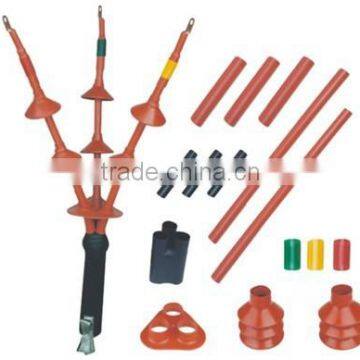

Heat Shrinkable Terminations,Cross-linked Cable Indoor and outdoor Termination
The thermal shrinkable cable accessory uses three seals and two earthings,which is strongly recommended by cable network experts.
Product features:
- The cross-linked cable thermal shrinkable termination uses the double-earthing technology,in which the steel armour earthing separates from the copper shield earthing,so that the cable trial is ore reasonable.
- Test the steel armour earthing and earth resistance,if ti conducted,it means cable protection surface is damaged.
- Test the resistance between two earthings,if it conducted,it means the external sheath is damaged;test the earth resistance of copper shield earthing,if it is conducted,it means both the internal and external protection surfaces are damaged.
- The phase will never fade.
- The triangular prick is developed for the purpose of convenient operation.
- The taper-shaped fingertip will never be cracked.
- Cross-linked cable thermal shrinkable intermediary connection uses the new technology(three-seal technology).
- The breakdown of cable intermediary joint is caused by poor seal,so our company adopts the new technology to make the cable operate more safely and conveniently.The three-seal refers to the external protection seal,internal protection seal,and the seal between two ends of insulation tube.
- The insulation tube is prolonged to solve the problem of power seize.
- The protection tube is very soft and flame retardant.
| Model | Name | Applicable cable section |
| 10kv HRYN-1/1 | 10kv cross-linked cable thermal indoor termination(single-conductor) | 25-50 |
| 10kv HRYN-1/2 | 70-120 | |
| 10kv HRYN-1/3 | 150-240 | |
| 10kv HRYW-1/1 | 10kv cross-linked cable thermal outdoor termination(single-conductor) | 25-50 |
| 10kv HRYW-1/2 | 70-120 | |
| 10kv HRYW-1/3 | 150-240 | |
| 10kv HRYN-3/1 | 10kv cross-linked cable thermal indoor termination(three-conductor) | 25-50 |
| 10kv HRYN-3/2 | 70-120 | |
| 10kv HRYN-3/3 | 150-240 | |
| 10kv HRYW-3/1 | 10kv cross-linked cable thermal outdoor termination(three-conductor) | 25-50 |
| 10kv HRYW-3/2 | 70-120 | |
| 10kv HRYW-3/3 | 150-240 | |
| 10kv HRYJ-3/1 | 10kv cross-linked cable thermal intermediary connection(three-conductor) | 25-50 |
| 10kv HRYJ-3/2 | 70-120 | |
| 10kv HRYJ-3/3 | 150-240 | |
| 10kv HRZN-3/1 | 10kv cross-linked oil impregnated cable indoor termination(three-conductor) | 25-50 |
| 10kv HRZN-3/2 | 70-120 | |
| 10kv HRZN-3/3 | 150-240 | |
| 10kv HRZW-3/1 | 10kv cross-linked oil impregnated cable outdoortermination(three-conductor) | 25-50 |
| 10kv HRZW-3/2 | 70-120 | |
| 10kv HRZW-3/3 | 150-240 | |
| 10kv HRZJ-3/1 | 10kv cross-linked oil impregnated cable intermediary termination(three-conductor) | 25-50 |
| 10kv HRZJ-3/2 | 70-120 | |
| 10kv HRZJ-3/3 | 150-240 | |
| 35kv HRYN-3/1 | 35kv cross-linked cable thermal indoor termination(three-conductor) | 25-50 |
| 35kv HRYN-3/2 | 70-120 | |
| 35kv HRYN-3/3 | 150-240 | |
| 35kv HRYN-3/1 | 35kv cross-linked cable thermal outdoor termination(three-conductor) | 25-50 |
| 35kv HRYN-3/2 | 70-120 | |
| 35kv HRYN-3/3 | 150-240 | |
| 35kv HRYN-1/1 | 35kv cross-linked cable thermal indoor termination(single-conductor) | 25-50 |
| 35kv HRYN-1/2 | 70-120 | |
| 35kv HRYN-1/3 | 150-240 | |
| 35kv HRYW-1/1 | 35kv cross-linked cable thermal outdoor termination(single-conductor) | 25-50 |
| 35kv HRYW-1/2 | 70-120 | |
| 35kv HRYW-1/3 |
150-240 |
