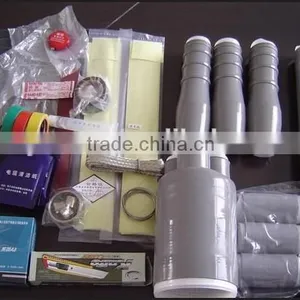

64/110kv,76/132kv Premolded Cold-shrinkable Outdoor Cable Termination
US$ 10 - 400
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
ASUNT
Model Number:
QX-NL
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8.7/15kv 70-120mm2/ 3core Indoor Heat Shrinkable Termination KitUS$ 100 - 200MOQ: 1 Set -
PE Heat Shrink Tubes,Heat Shrinkable Tubes for Electric CableUS$ 100 - 200MOQ: 1 Set
-
Polyethylene Heat Shrinkable High Insulation Tube/tube for Cable Termination and JointUS$ 100 - 200MOQ: 1 Set
-
High Voltage Heat Shrinkable Type Tube/cable AccesoriesUS$ 100 - 200MOQ: 1 Set
-
1/10/24/36kv Heat Shrink Tube /Heat Shrink Joints/Heat Shrinkable Cable End CapsUS$ 100 - 200MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
ASUNT
Model Number
QX-NL
Conductor Material
Copper
Insulation Material
Rubber
Jacket
Rubber
Number of Conductors
3
Application
1KV
Specifications
outdoor cable termination1.perfect protection and insulation
2.anti-tracking
3. easy and fast installation

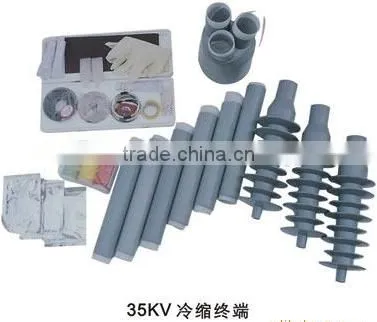

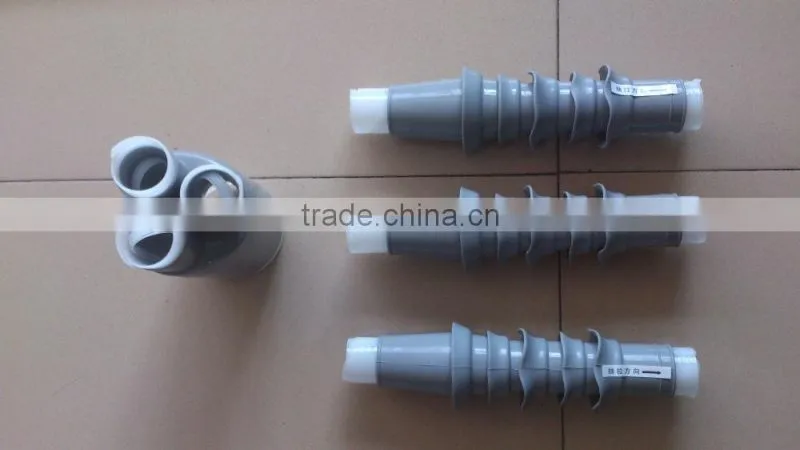

Premolded cold-shrinkable outdoor cable termination
Description:
Cold shrink tubing is a fast and easy way to weatherproof a connection. Simply position the pre-expanded tubing over the connection that you are protecting and
pull the rip cord. The tubing compresses to form a weatherproof seal.
Type and Specification:
Product type |
Suitable cable section mm2 |
Product type |
Suitable cable section mm2 |
10KV single core indoor use |
20-50 |
35KV single core indoor use |
50-95 |
70-150 |
120-185 |
||
185-400 |
240-400 |
||
10KV single core outdoor use |
20-50 |
35KV single core outdoor use |
50-95 |
70-150 |
120-185 |
||
185-400 |
240-400 |
||
10KV three core indoor use |
20-50 |
10KV three core indoor use |
50-95 |
70-150 |
120-185 |
||
185-400 |
240-400 |
||
10KV three core outdoor use |
20-50 |
10KV three core outdoor use |
50-95 |
70-150 |
120-185 |
||
185-400 |
240-400 |
Tech Data:
| No. | Test Project | Standard Requirements | Conclusion |
| 1 | Power Frequency Voltage | 39KV 5min No Flashover and No Breakdown | pass |
| 2 | Partial Discharge | Under 15KV, Discharge volume≤10pc | pass |
| 3 | Impulse Voltage Test | Under 95KV, ±10times | No flashover and No Breakdown |
| 4 | Constant Voltage load Cycle(in air) | The conductor applied voltage 23KV, and heated to (95-100°C). In which the temperature stability 2h,cooling 3h, a total of 3cycles. | Not flashover and assessed by the following test result |
| 5 | Constant load Cycle test | The conductor applied voltage 23KV, and heated to (95-100°C). In which the temperature stability 2h,cooling 3h, a total of 6cycles. | Not flashover and assessed by the following test result |
| 6 | Thermal Stability Test | Under 23KA, Short circuit 2 times, No visible damage. | pass |
| 7 | Dynamic Stability Test | Under 81KA, Short circuit 1 time, No visible damage | pass |
| 8 | AC Withstand Voltage | 23KV, 15min | No flashover and No Breakdown |
| 9 | Tide Temperature Test | 11KV, 300h | pass |
| 10 | Salt Spray Test | 11KV, 1000h |
pass |
