On Sale!!! TH1300 Vinyl cutting plotter
1.Ordinary just cutting function series:
TH330mm/TH740mm/TH1180mm/TH1300mm
2.Contour function Model(must work with Pro flexisign software)
1.L series contour function series:
TH330L/TH740L/TH1300L
2.T series New Model fashion white color contour cutting model
T24L(740mm)/T48L(1300mm)/T59L(1350mm)
Usage
can cut 1mm maximum thickness(like vinyl ,stickers ,even some reflective sticker)
1.use our machine to get logos, labels, stickers, transfers, POP signs, shop signs, window signs
and other graphics
Compatible Software and computer system
It supports Flexisign,Artcut,coreldraw,CAD,CDR,Adobe illustrator CS5 softwares working in Windows 7/Windows 8/ Windows XP/Vista/Mac OS system
Contour function operation Process:
Contour function(with optical eye) easy to operate under control of flexsign software
1)design picutre in ths photoshop or Coreldraw
2)input picture into flexisign software and it will automatically make 4 contour mark points
3)print the marked point picture in any printer
4)put printed picture on our cutting plotter and locate 4 mark points with laser eye
5)do contour cutting in flexsign software and Sign graphics perfectly get
Sales Points:
1. More Interface: USB, SD card, serial Port,(WIFI Blue tooth Optional)
2.CE Certification,ISO9001 Quality Certification.
3.High-precision Steel Axes: Guarantee the tolerances
4. 32-bit ARM7 CUP,4MB, High-speed CACHE memory.:can repeat the words or images for 0-500 times(Repeat Function)
5.Noise less than 60DB(low Noise, smooth cutting)
6.Our control panel: 11 membrane and 3.0 LCD touching screen,and have 5 kinds of backlight for select.
7.Supper cutting pressure: 0-1000G,can cut supper thickness materials,like reflective film
8. our machine can cut 2mm words and have the function of contour cut
9. Support Mac OS/Windows Windows XP/Vista.10. Support Artcut,coreldraw Flexi Sign 10.0,signcut,CAD,CDR,Adobe Illustrator etc
Specifications:
Type |
TH1300 |
TH740 |
Stand |
Vertical feeding paper Stand |
none |
Mainboard |
32-bit CPU,4MB high speed CACHE |
|
Control panel |
Large touching screen and 11 Membrane Buttons plus 3.0 LED touching screen |
|
Driver |
leading shaft, high torque motor and micro-step driver |
|
locating system |
Precise electronic limited interface system and arbitrary original setting system |
|
Max paper feed width |
1300MM |
740 |
Maximum cutting width |
1205MM |
630 |
Maximum cutting speed |
500mm/s |
|
Maximum cutting length |
unlimited |
|
Knife press |
0-1000g(Digital adjustment) |
|
Mechanical rssolution |
0.05mm |
|
Repeatablity |
<+-0.1mm |
|
Knife(blade) |
Mimaki Imported alloy blade |
|
Drawing pen |
11.4mm diameter, all kinds of water, oil, atomic paint pens, poster pen |
|
Drawing instruction |
DM-PL/HP-GL Automatic Identification |
|
Interface |
USB/ SDcard/ serial port |
|
Power supply |
AC110V /220V±10%,50Hz/60Hz |
|
Power consumption |
<120W |
|
working environment |
temperature:+5-+35,humidity:30%-70% |
|
Package dimension |
1592×330×440mm |
1045*330*335mm |
Package Weight |
55kg |
35kg |
Pictures Show for Vinyl cutting plotter:

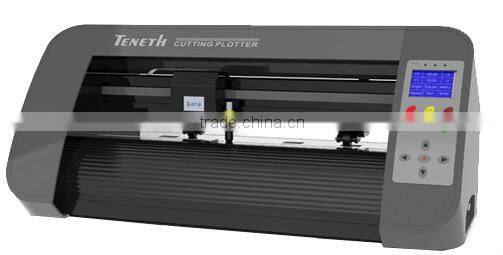

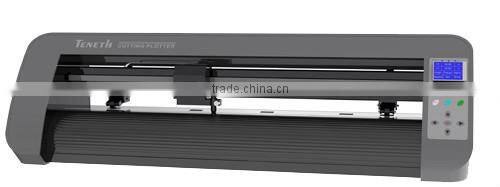

TH740mm Model

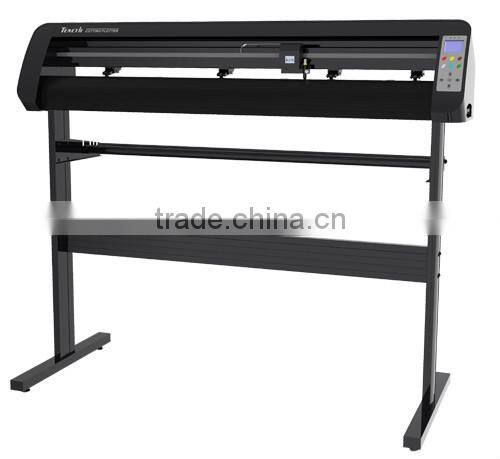

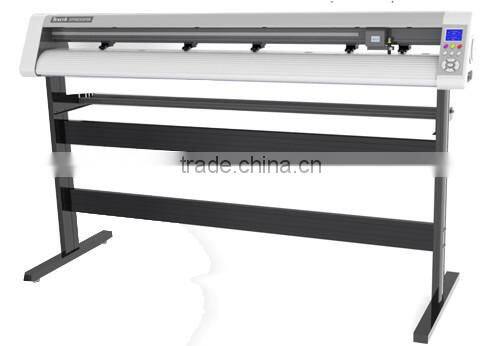

TH1300mm Model
New Model Fashion T series T48L contour function Model
Gurantee mainboard for 1 year,if any problems for mainboard within 1 year,send it back to me,I will change new one for you
Payment:
1.We accept Alipay here, all the major Credit Card, Master Card, Western Union, Money Gram, Moneybooker, Bank Transfer is accepted through secure payment processor by ESCROW.
2. Payment trough ESCROW, Money is deposited securely to Alipay, only released to us after confirm delivery.
3. Please complete the full payment including Final price with bank service fee and postage. Transaction with insufficient payment will not be handled.
Package:
with export standard carton box
Shipment:
1.Shipping on Weekdays, usually via FedEx/UPS/DHL express for options, delivery time 3-5 working days. For accurate freight cost,please tell your city name and postcode
2.if send it by sea shipping way,please tell me your sea port name
3.if have Chinese sea shipping company,please tell your agent contacts,so we can contact,if your shipping agent in Guangzhou city,can send cutting plotter to his warehouse freely
1.normally, All the products will deliver to you in 1-2 workdays after confirm the payment(if not have special case).
2. We will use appropriate materials for a reasonable, secure packing of your goods. If goods are damaged during the transport, please inform our service department within 3 days after goods are received.
Shipping advantages:
1.My company has our own FedEx, and UPS account, will have 20% DISCOUNT for FedEx and UPS shipping cost.
2. All the goods delivery by FedEx or DHL express from Guangzhou,fast delivery save your time.
3. we can declare low value on the shipping invoice and bill,in case you pay less custom tax.
4. If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou City.
Thanks for your reading & Welcome your inquiry!
