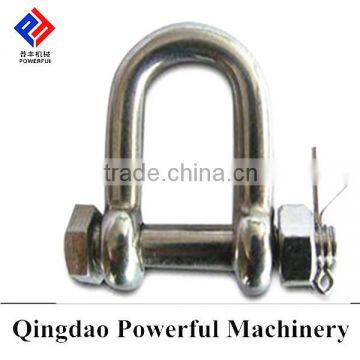

U.S. TYPE g2150 DROP FORGED BOLT TYPE CHAIN DEE SHACKLE
- 100 Ton / Tons per Month
- QINGDAO PORT OR ANY CHINA MAIN PORT
- T/T
You May Like
-
AS2741 AUSTRILIAN STANDARD ALLOY STEEL GRADE S BOW SHACKLE
-
AS2741 AUSTRILIAN STANDARD ALLOY STEEL GRADE S DEE SHACKLE
-
AS2741 AUSTRILIAN STANDARD HIGH TENSILE STEEL GRADE M LARGE DEE SHACKLE
-
AS2741 AUSTRILIAN STANDARD HIGH TENSILE STEEL GRADE M LARGE BOW SHACKLE
-
BS3032 LARGE DEE SHACKLE
-
BS3032 LARGE BOW SHACKLE
Product Details
| Place of Origin | Shandong, China | Brand Name | POERFUL | |
| Model Number | US TYPE g2130 |
Product Description
Specifications
g2150 DROP FORGED BOLT TYPE SHACKLEMaterial:carbon steel
Surface: galv or others
Size: 1/2"-4"
technology:drop forged
U.S. TYPE g2150 DROP FORGED BOLT TYPE CHAIN DEE SHACKLE
available for stainless steel 304 or 316
| 1.Commodity description | U.S. TYPE g2150 DROP FORGED BOLT TYPE CHAIN DEE SHACKLE |
| 2.Category | Rigging hardware, Rigging |
| 3.Standard | us type G2150 |
| 4.Material of body | high carbon steel |
| 5.Material of pin | alloy steel |
| 6.Surface treatment | electric galvanized, hot dip galvanized |
| 7.Technology | drop forged |
| 8.Size | 1/2"-4" |
| 9.MOQ | 0.5Ton |
| 10.Supply ability | 100Ton per month |
| 11.Packing | packed in gunny bags or pp bags or cartons then on pallet / at request of client |
| 12.Delivery time | as the quantity in order.20-30days |
| 13.Payment term | 30% deposit prepaid after onfirmed PI, the balance against copy of BL before cargo arrival |
| 14.Main products | anchor chains, NACM standard chains, DIN5685 /DIN766/DIN763 chains decoretive chains shackles , turnbuckles, wire rope clips, pulley blocks, load binders, bolts and nuts, quick links , snap hooks, swivels, wire rope thimbles, ferrules and sleeves |
| 15.Company name | QINGDAO POWERFUL MACHINERY CO.,LTD |
| 16.Experience | 17years experience in the area of chains and rigging hardware |
| 17.Main market | the United States, Europe, Mid East, Southeast Asia |
| 18.our advantage | 1)more than 15 years experience in the area of chains and rigging hardware |
| 2)quick react to your email at the first time | |
| 3)provide best price, good quality and my team will supply best seivice |
| NOMINAL | WLL | WEIGHT EACH(KGS) | A | B | P |
| SIZE(IN.) | (TON) | G2150 | |||
| 1/2 | 2 | 0.34 | 13/16 | 5/8 | 1/2 |
| 5/8 | 3-1/4 | 0.67 | 1-1/16 | 3/4 | 5/8 |
| 3/4 | 4-3/4 | 1.14 | 1-1/4 | 7/8 | 3/4 |
| 7/8 | 6-1/2 | 1.75 | 1-7/16 | 1 | 7/8 |
| 1 | 8-1/2 | 2.52 | 1-11/16 | 1-1/8 | 1 |
| 1-1/8 | 9-1/2 | 3.45 | 1-13/16 | 1-1/4 | 1-1/8 |
| 1-1/4 | 12 | 4.90 | 2-1/32 | 1-3/8 | 1-1/4 |
| 1-3/8 | 13-1/2 | 6.24 | 2-1/4 | 1-1/2 | 1-3/8 |
| 1-1/2 | 17 | 8.39 | 2-3/8 | 1-5/8 | 1-1/2 |
| 1-3/4 | 25 | 14.24 | 2-7/8 | 2 | 1-3/4 |
| 2 | 35 | 21.21 | 3-1/4 | 2-1/4 | 2 |
| 2-1/2 | 55 | 38.56 | 4-1/8 | 2-3/4 | 2-1/2 |
| 3 | 85 | 56.36 | 5 | 3-1/4 | 3 |
| 3-1/2 | 120 | 5-1/4 | 3-3/4 | 3-1/2 | |
| 4 | 150 | 5-1/2 | 4-1/4 | 4 |
PACKING : packed in gunny bags or pp bags or cartons then on pallet / at request of client
SHIPPING: as the quantity in order.20-30days
WHAT CAN WE DO FOR YOU ?
Quick response within 24 hours
Meet requests of clients
Strict quality control and detailed test report supplied
Professional suggestions
Tight and strong packing
Delivery in time
Best service , best price !
Qingdao Powerful Machinery Co.,Ltd is located in Qingdao city, Shandong province of China, where is very close to the Qingdao port and international airport with 15years experience of exporting.We specializeing in producing and exporting rigging hardware, chains, shackles, blocks&pulleys, stainles steel products.
Our products are all designed, manufactured and assembled under strict quality control.We have the professional QC team to do inspections. And we can offer favorable prices, good quality and on-stop souring service.
We are ready for every customer and be the pionner is our mission. All members of our company will be very honored if you contact us ! We are looking forward to cooperating with you in the near future.
I'm Eileen Wang, I will be always on line, please contact me any time!
I must supply best price to you , and my team will supply best service !
Chose us, we will never let you down!
BEST PRICE, BEST SERVICE !
