Help CenterU.S. Bolt Type G-2150 Chain Shackle
Related Products
-
European Type Large Dee ShackleUS$ 0.4 - 8MOQ: 200 Pieces -
Adjustable Marine Kenter ShackleUS$ 20 - 40MOQ: 1 Piece
-
GALVANIZED G2150 U-BOLT SHACKLEUS$ 0.1 - 15MOQ: 100 Pieces
-
Marine Bending Anchor Chain ShackleUS$ 5 - 100MOQ: 20 Pieces
-
Marine Bending Anchor Joining ShackleUS$ 5 - 100MOQ: 20 Pieces
Powerful Machinery |
U.S. Bolt Type G-2150 Chain Shackle |
| Features | |
|
• High Strength US Bolt Type • Standard: G-2150 • Technology: Drop Forged • Surface: Galvanized, Spray • Size: From 3/16'' to 4'' • WLL: From 1/3 ton to 150 Ton | |
| Brief Info | |
|

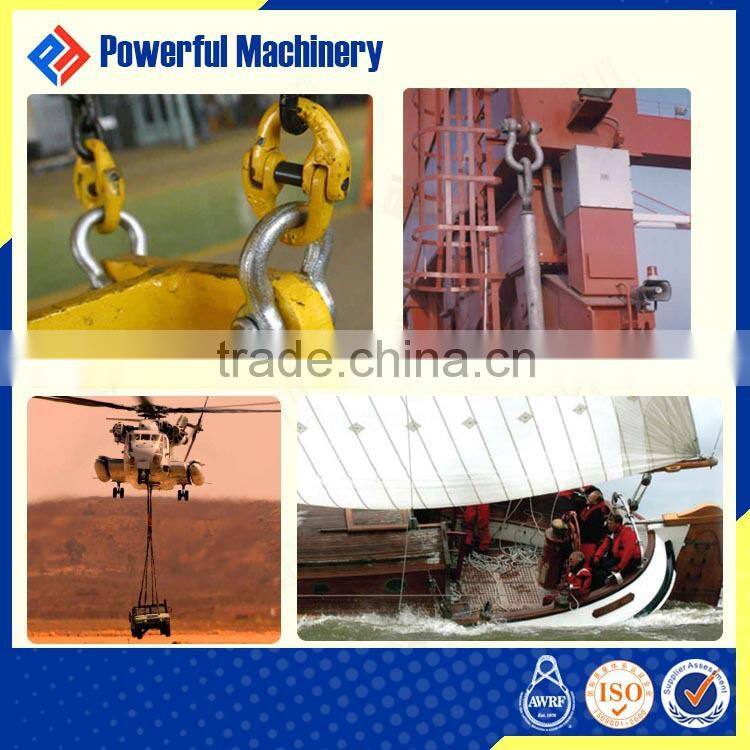

Shackle is widely used in machinery, metalurgy, electric power, railway, water conservancy, port, mining, construction, port, paper making, chemical industry, etc. |
Powerful Machinery |
Specifications |
U.S. Bolt Type G-2150 Anchor Chain |
|
|
Nominal Size |
Working Load Limit |
Dimensions (in.) |
2150 Weight Each |
|||||||||||||
| in. | Tons | A | B | C | D | E | F | G | H | K | L | M | N | P | R | LBS. |
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | -- | 1.47 | -- | 0.98 | -- | 0.19 | 1.29 | -- | 0.06 |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | -- | 1.84 | -- | 1.28 | -- | 0.25 | 1.56 | -- | 0.17 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | -- | 2.09 | -- | 1.47 | -- | 0.31 | 1.82 | -- | 0.22 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | -- | 2.49 | -- | 1.78 | -- | 0.38 | 2.17 | -- | 0.33 |
| 7/16 | 1 1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | -- | 2.91 | -- | 2.03 | -- | 0.44 | 2.51 | -- | 0.49 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 1.63 | 3.28 | 3.03 | 2.31 | 1.81 | 0.5 | 2.8 | 0.5 | 0.79 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2 | 4.19 | 3.75 | 2.94 | 2.31 | 0.69 | 3.53 | 0.63 | 1.68 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 2.38 | 4.97 | 4.53 | 3.5 | 2.75 | 0.81 | 4.07 | 0.81 | 2.72 |
| 7/8 | 6 1/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 2.81 | 5.83 | 5.33 | 4.03 | 3.19 | 0.97 | 4.71 | 0.97 | 3.95 |
| 1 | 8 1/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 3.19 | 6.56 | 5.94 | 4.96 | 3.69 | 1.06 | 5.31 | 1 | 6.12 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 3.58 | 7.47 | 6.78 | 5.16 | 4.06 | 1.25 | 5.09 | 1.25 | 8.27 |
| 1 1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.25 | 3.25 | 3 | 3.94 | 8.25 | 7.5 | 5.75 | 4.53 | 1.38 | 6.51 | 1.38 | 11.71 |
| 1 3/8 | 13 1/2 | 2.25 | 1.5 | 5.25 | 1.38 | 3.63 | 3.31 | 4.38 | 9.16 | 8.28 | 6.38 | 5 | 1.5 | 7.21 | 1.5 | 15.83 |
| 1 1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.5 | 3.88 | 3.63 | 4.81 | 10 | 9.06 | 6.88 | 5.38 | 1.62 | 7.73 | 1.62 | 20.8 |
| 1 3/4 | 25 | 2.88 | 2 | 7 | 1.75 | 5 | 4.19 | 5.75 | 12.34 | 10.97 | 8.86 | 6.38 | 2.25 | 9.05 | 2.12 | 33.91 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2 | 5.75 | 4.85 | 6.75 | 13.68 | 12.28/ | 9.97 | 7.25 | 2.4 | 10.41 | 2 | 52.25 |
| 2 1/2 | 55 | 4.13 | 2.75 | 10.5 | 2.62 | 7.25 | 5.69 | 8 | 17.84 | 14.84 | 12.87 | 9.38 | 3.13 | 13.56 | 2.62 | 98.25 |
| 3 | 85 | 5 | 3.25 | 13 | 3 | 7.88 | 6.5 | 8.5 | 21.5 | 16.88 | 14.36 | 11 | 3.62 | 16.5 | 3.5 | 154 |
| 3 1/2 | 120 | 5.25 | 3.75 | 14.63 | 3.62 | 9 | 8 | -- | 24.63 | -- | 16.5 | -- | 4.12 | 19 | -- | 265 |
| 4 | 150 | 5.5 | 4.25 | 14.5 | 4.1 | 10 | 9 | -- | 25.69 | -- | 18.12 | -- | 4.56 | 19.75 | -- | 338 |
Powerful Machinery |

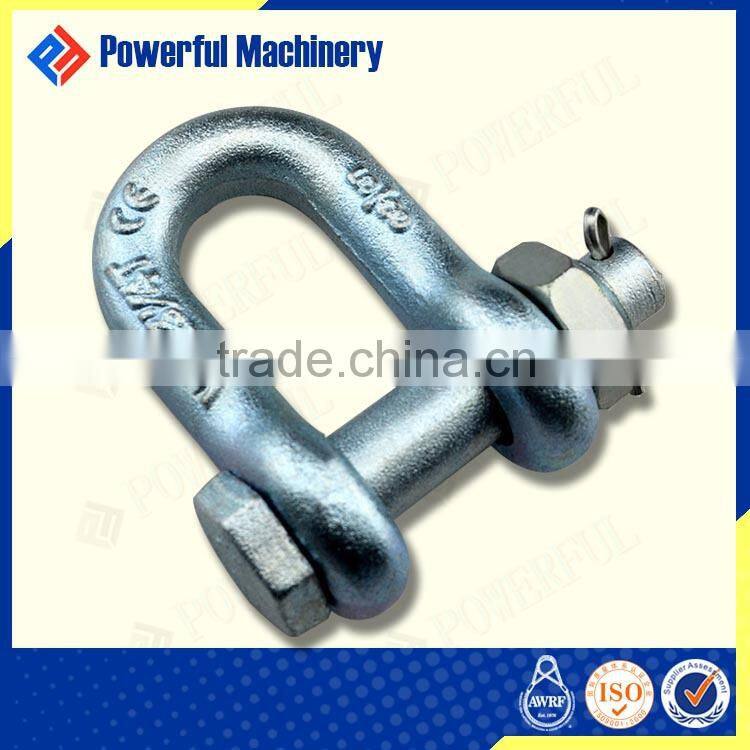

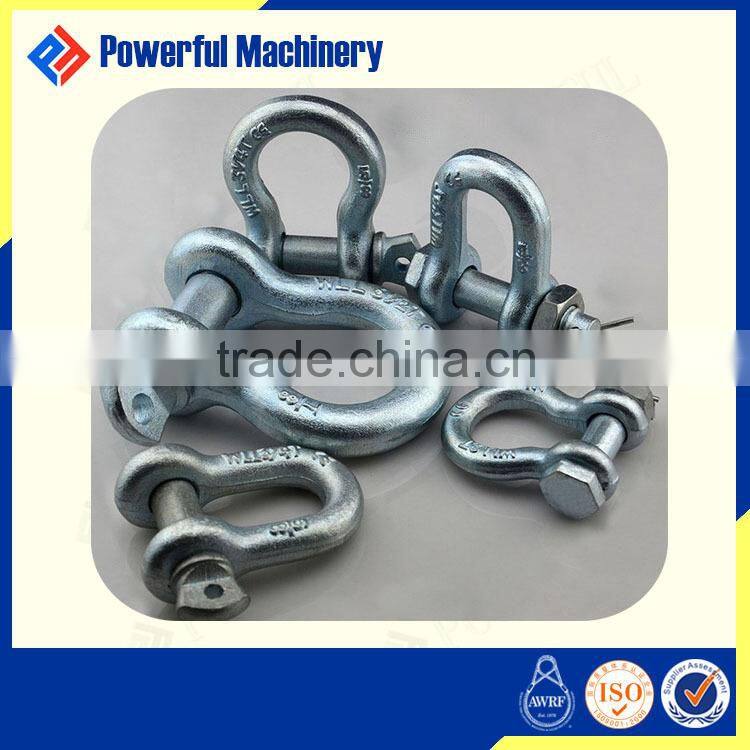

Product Illustrations |
|
|

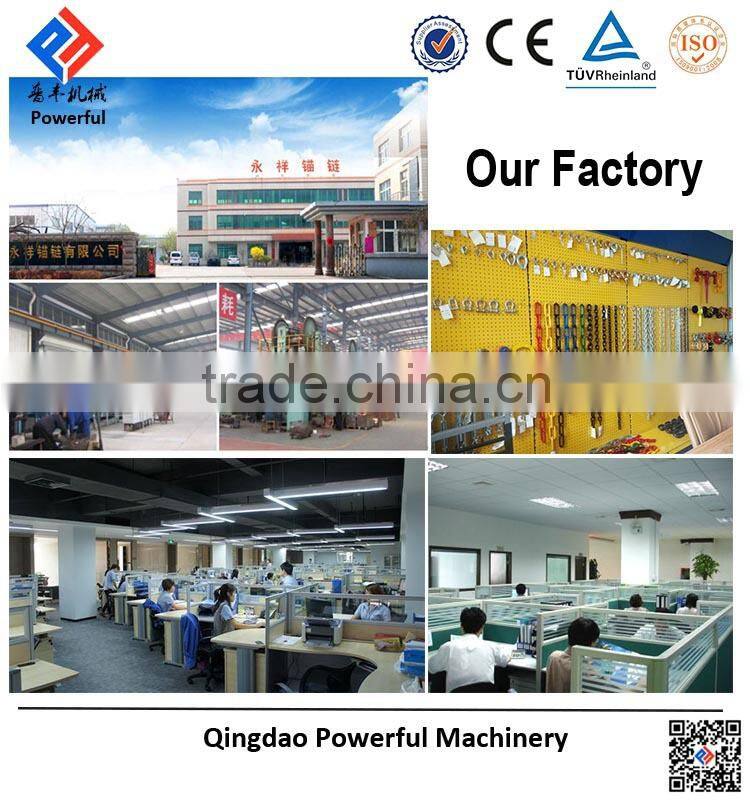

Factory & Equipment
Powerful Machinery |

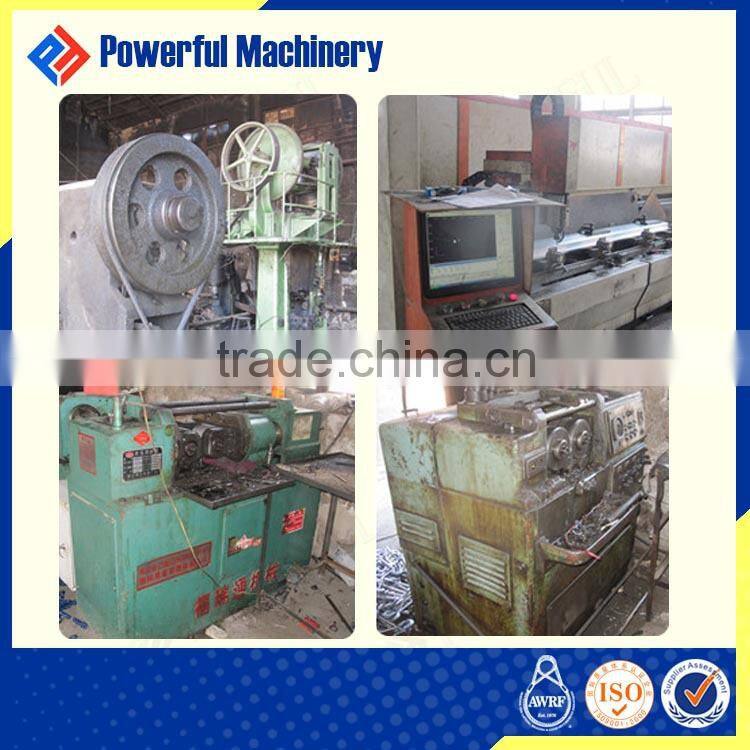

Production |
|
Powerful Machinery |

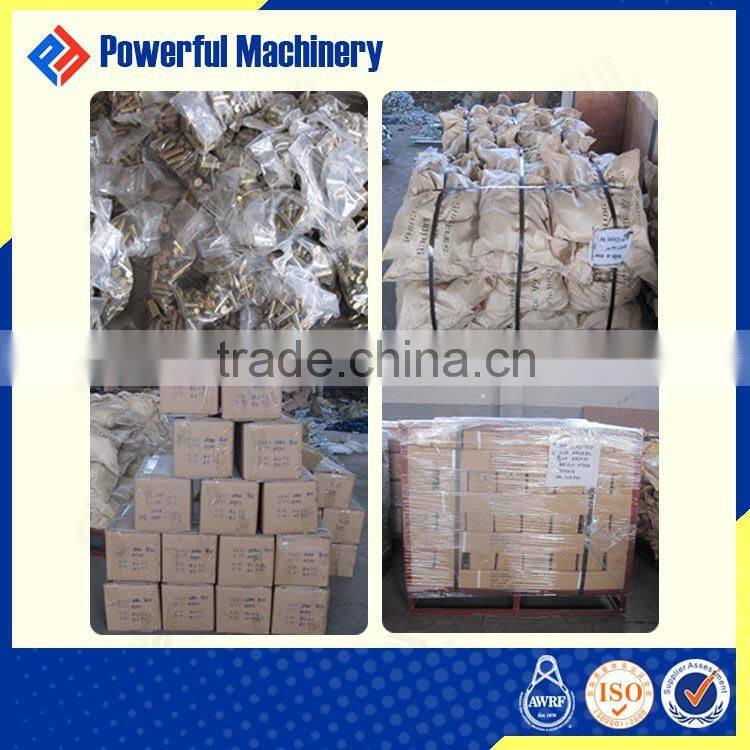

Packaging & Shipping |
Powerful Machinery |
Who are we? |
Eastablished for many years, we specializing in producing and exporting Rigging hardwares, high grade chains, blocks & pulleys, steel wire rope, stainless steel and so on.
Our products are all designed, manufactured and assembled under strict quality control. We have a professional QC team to do inspections.
And we can offer favorable prices, good quality and one-stop sourcing service. We are all ready for every customer and to be the pioneer is our mission.
All members of our company will be very honored if you contact us. We are looking forward to cooperating with you in the near future.
|
|
Powerful Machinery |
Why choose US? |
1. Quick Response:
Reply your enquiry in 24 working hours.
2. Full English Service:
Experienced staffs answer all your questions in professional and fluent English
3. OEM & ODM:
Customized size, length and design are available.
4. Creative One-Stop Solutions:
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers.
|
|
Powerful Machinery |
F A Q |
1. Are you a factory or trading company?
We started as an anchor chain factory about 20 years ago and gradually developed into a big manufacturer in marine supplies.
At the same time, to meet the growing demands from our clients in new business areas, we expanded our scope to rigging hardware and fasteners, and other related hardware by setting up solid partnership with other factories.
Now we’re proud to say that POWERFUL has ranked as a top supplier on chains & rigging hardware in northern China.
2. Where is your factory located?
Our factory is located at #37, Wenhua Road, Jimo, Qingdao City, Shandong Province, China.
You’re welcomed to visit us any time for future cooperation.
3. What products do you supply?
As mentioned above, Qingdao Powerful Machinery is capable of supplying all kinds of marine supplies, chains, rigging hardware, fasteners, and related hardware.
Do you produce them all?
We produce all kinds of chains in our factory, other products in our partner factories. By establishing cooperation agreements & capital injection, we obtained a wide & solid supply chain to meet your demands.
4. How do you control quality?
By setting up quality control points and inspecting at each production process with strict standards, the defective products will be eliminated before packaging and delivery.
For partner factories, we use a comprehensive system of quality standards to evaluate the production line. Also our professional QC team will implement the onsite check and finish product check before delivery.
5. Why are you more trustworthy than the other factories?
Quick Response:
We feedback your questions immediately 24 hours a day, 7 days every week.
Competitive Price:
We can provide a more competitive price based on the same quality level by more efficient management in every process.
One-stop Solution:
Just say what you need, and we’ll figure out a one-stop solution for your business to save
your time and effort.
6. How do I pay?
We accept 30% payment in advance & 70% before shipment for the first cooperation, either by T/T or L/C.
7. How do I receive the goods?
With our professional transport agents, we are capable of delivery products to most ports all over the world. Door-to-door service is also supported. FOB, C&F, CIF are most commonly used trade terms.
Powerful Machinery |
Contact US |
Max Chyau – Senior Sales Engineer
Qingdao Powerful Machinery Co., Ltd.
Room #1302, Huirong Square, No.65, Hong Kong West Road, Qingdao, China
T (+86)-532-8309-2988 F (+86)- 532-6688-2266
E max# W /qd-powerful.en.china.cn
