Adjustable Marine Kenter Shackle

Adjustable Marine Kenter Shackle thumbnail-1

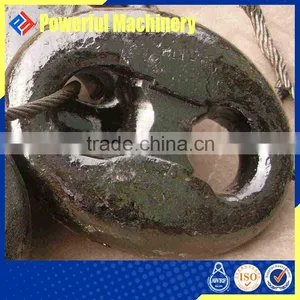

Adjustable Marine Kenter Shackle thumbnail-2
Adjustable Marine Kenter Shackle thumbnail-3
Adjustable Marine Kenter Shackle thumbnail-4
Adjustable Marine Kenter Shackle thumbnail-5
Adjustable Marine Kenter Shackle thumbnail-6
Adjustable Marine Kenter Shackle photo-1

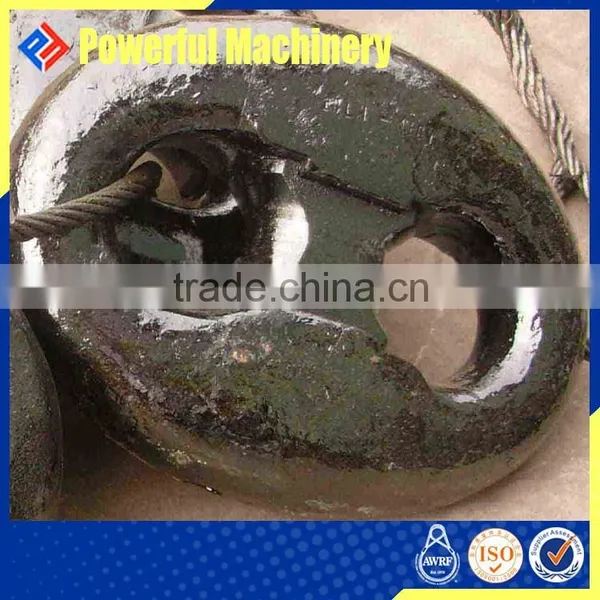

Adjustable Marine Kenter Shackle photo-2

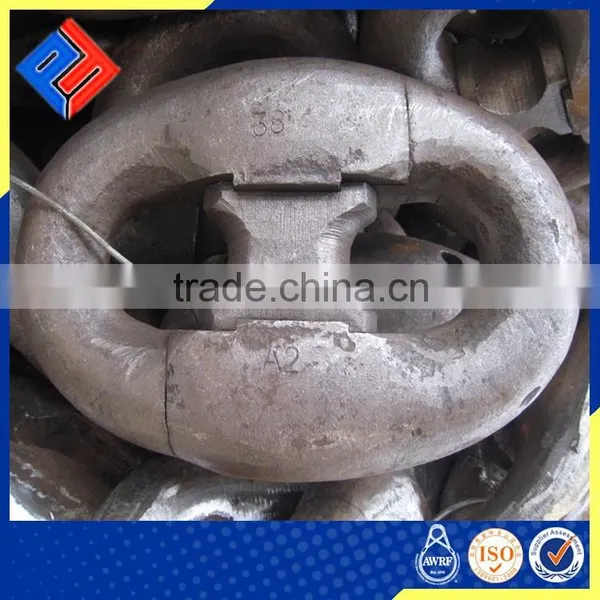

Adjustable Marine Kenter Shackle photo-3

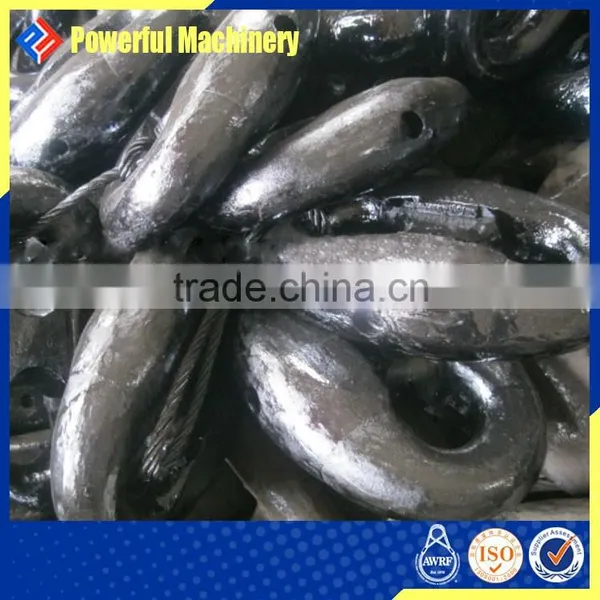

Adjustable Marine Kenter Shackle photo-4

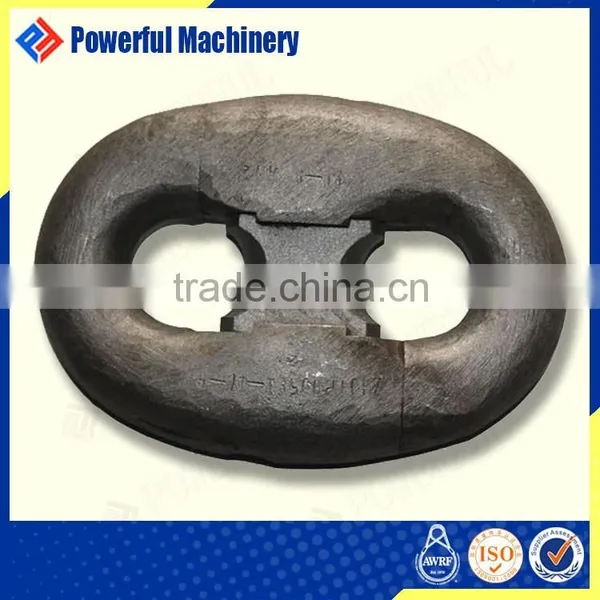

Adjustable Marine Kenter Shackle photo-5

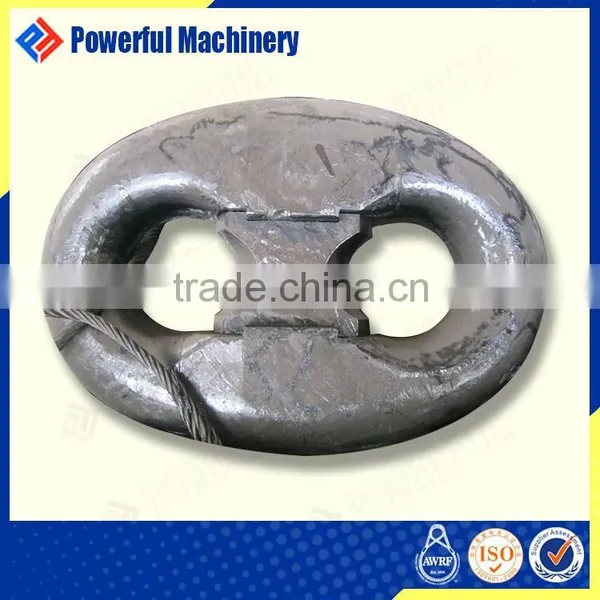

Adjustable Marine Kenter Shackle photo-6
US$ 20 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Ring
Material:
Other, Alloy, Alloy Steel
Size:
14mm - 130mm, 14mm - 130mm
Contact Supplier Request Quote Chat Now
Qingdao Powerful Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Ring
Material Other, Alloy, Alloy Steel
Size 14mm - 130mm, 14mm - 130mm
Model Number Kenter Shackle



Product Description



Powerful Machinery

Marine Kenter Shackle
Quick Details Adjustable Marine Kenter Shackle

   • Size:               Dia. 14 mm to 130 mm

  • Material:        Heavy Duty Forged Steel
  • Technology:   Forged
  • Surface Treatment:

      · Electrogalvanized

      · Hot Dip Galvanized

      · Black Tarred

      · Self colored

      · Blackened Oxide

  • Used to join two chains together

  • Used in marine industry to join together mooring

     and anchor chains

Introduction

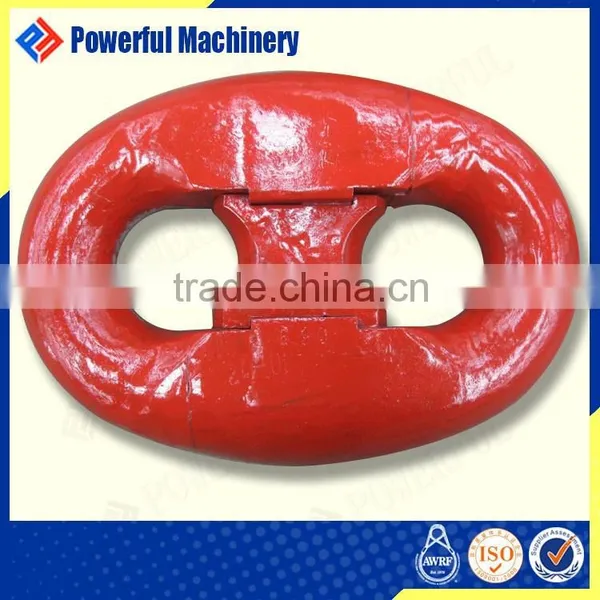

  • The kenter shackle comprises of two separate

     halves which are joined together with a center

     chock and secure taper pin, wich locks to the halves      together.

  • Kenters are used to join together majority of chains

     and typically in the marine industry. They're used to      join together anchor and mooring chains.

  • Dismantling the kenter joining shackle for re-use is

     straight-forward. Simple use a punch to drive out
     the taper pin - this will dislodge the lead pellet

     which holds the pin in place. Then tap the center

     chock away and the two halves will disassemble.





Product Data & Graph



Powerful Machinery

Specifications
           Adjustable Marine Kenter Shackle                 Adjustable Marine Kenter Shackle



Dia. Length Width Proof Load Breaking Load
MM MM MM KN KN
14 84 59 82 116
16 96 58 107 150
17.5 105 74 127 179
19 114 80 150 211
20.5 123 86 175 244
22 132 92 200 280
24 144 101 237 332
26 256 109 278 389
28 168 118 321 449
30 180 126 368 514
32 192 134 417 583
34 204 143 468 655
36 216 151 523 732
38 228 160 581 812
40 240 168 640 896
42 252 176 703 981
44 264 185 769 1080
46 276 193 837 1170
48 288 202 908 1270
50 300 210 981 1370
52 312 218 1060 1480
54 324 227 1140 1590
56 336 235 1220 1710
58 348 244 1290 1810
60 360 252 1380 1940
62 372 260 1470 2060
64 384 269 1560 2190
66 396 277 1660 2310
68 408 286 1750 2450
70 420 294 1840 2580
73 438 307 1990 2790
76 456 319 2150 3010
78 468 328 2260 3160
81 486 340 2410 3380
84 504 353 2580 3610
87 522 365 2750 3850
90 540 378 2920 4090
92 552 386 3040 4260
95 570 399 3230 4510
97 582 407 3340 4680
100 600 420 3530 4940
102 612 428 3660 5120
105 630 441 3850 5390
107 642 449 3980 5570
111 666 466 4250 5940
114 684 479 4440 6230
117 702 491 4650 6510
120 720 504 4850 6810
122 732 512 5000 7000
124 744 521 5140 7200
127 762 533 5350 7490
130 780 546 5570 7800

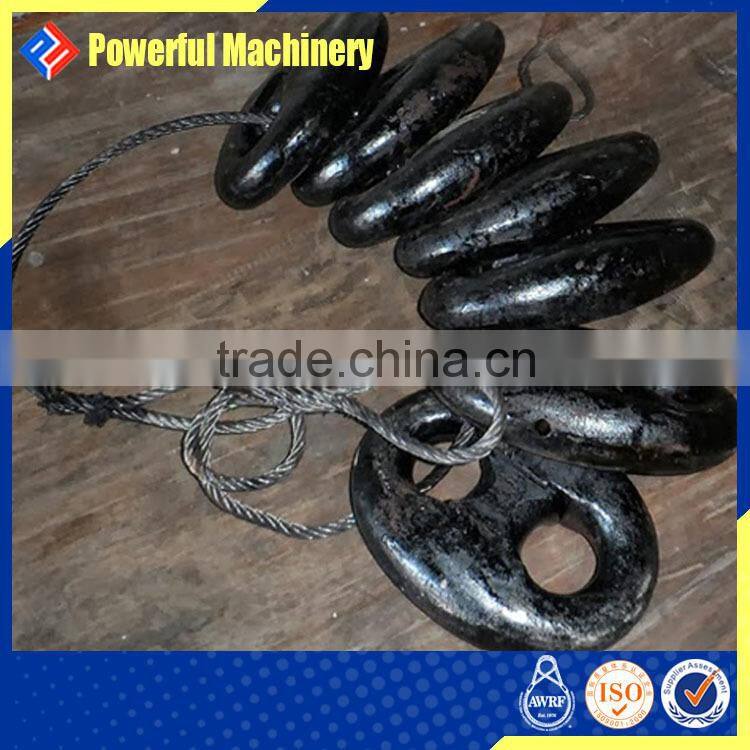

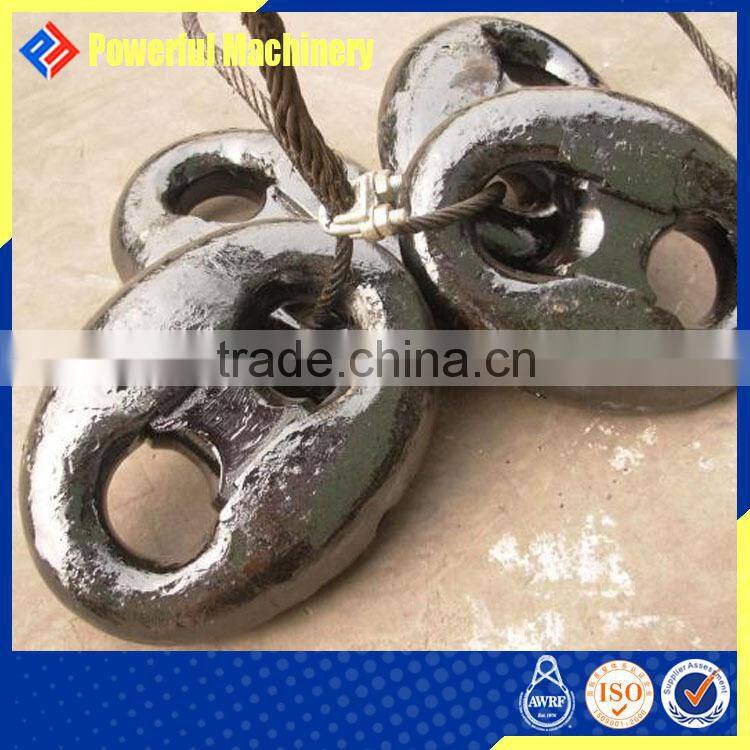

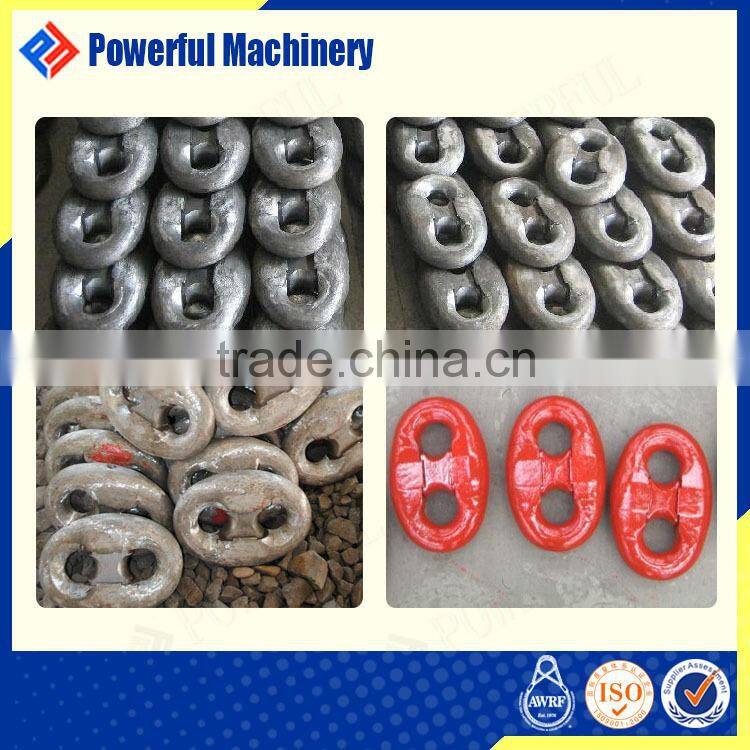

Product Photos



Powerful Machinery

Product Illustrations



 Adjustable Marine Kenter Shackle



Adjustable Marine Kenter Shackle



Adjustable Marine Kenter Shackle







Powerful Machinery

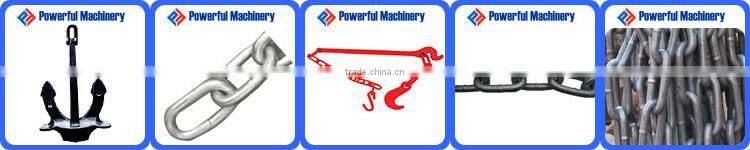

Deck Fittings



Adjustable Marine Kenter Shackle

 Stud Link

 Kenter Shackle Swivel

"D Type"

Joining Shackle

"D Type"

Anchor Shackle









Powerful Machinery

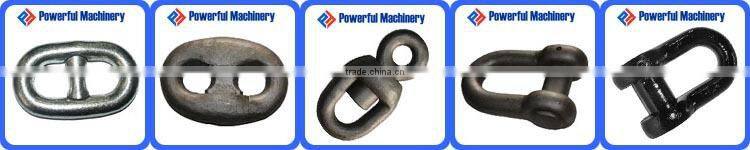

Best Sellers



Adjustable Marine Kenter Shackle

Click Here

 Click Here

Click Here

Click Here

Click Here

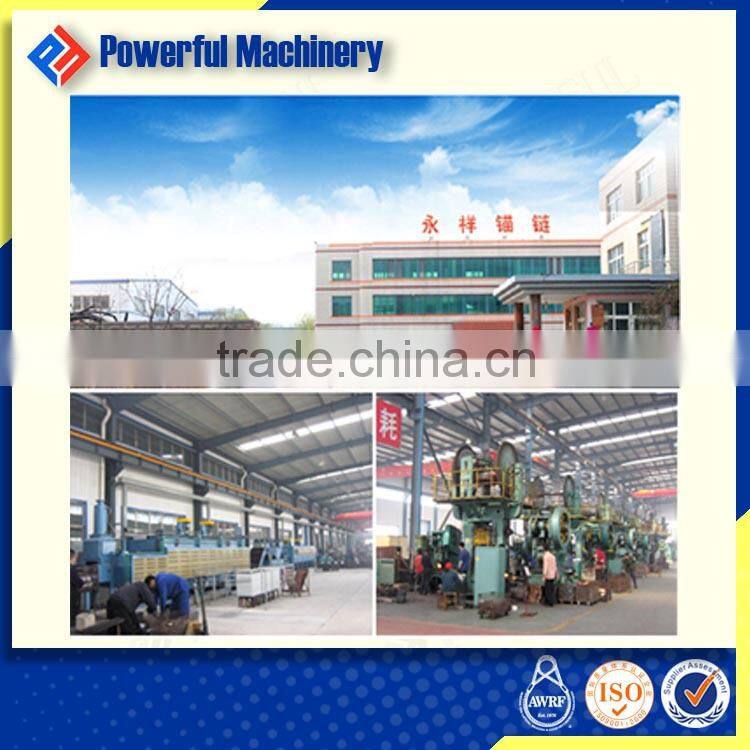

Factory & Equipment





Powerful Machinery

Factory and Equipment



Adjustable Marine Kenter Shackle



Adjustable Marine Kenter Shackle









Powerful Machinery

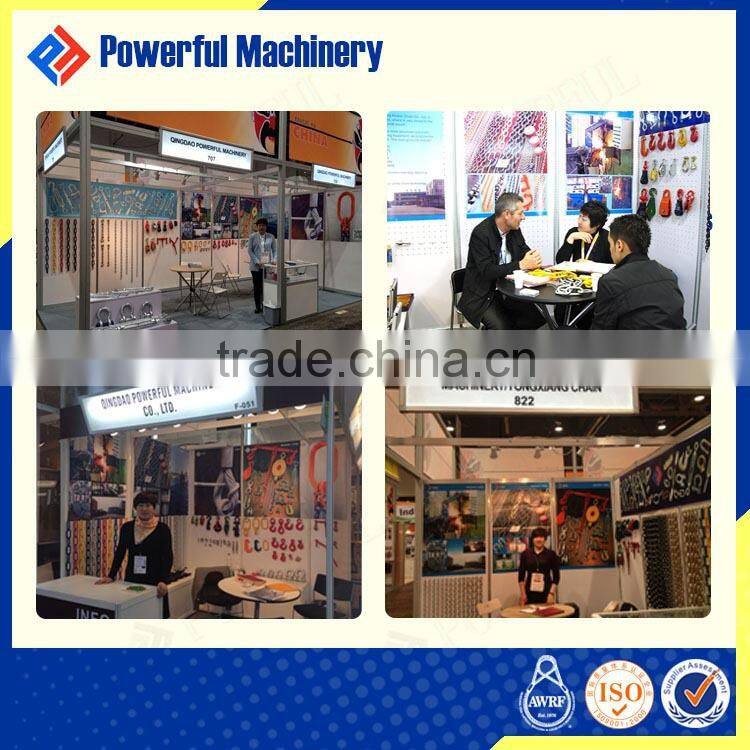

Exhibitions



Adjustable Marine Kenter Shackle





FAQ



Powerful Machinery

FAQ



1. Are you a factory or trading company? We started as an anchor chain factory about 20 years ago and gradually developed into a big manufacturer in marine supplies. At the same time, to meet the growing demands from our clients in new business areas, we expanded our scope to rigging hardware and fasteners, and other related hardware by setting up solid partnership with other factories. Now we’re proud to say that POWERFUL has ranked as a top supplier on chains & rigging hardware in northern China.
2. Where is your factory located?

Our factory is located at #37, Wenhua Road, Jimo, Qingdao City, Shandong Province, China.
You’re welcomed to visit us any time for future cooperation.

3. What products do you supply?  As mentioned above, Qingdao Powerful Machinery is capable of supplying:
♦ all kinds of marine supplies
♦ chains
♦ rigging hardwares
♦ fasteners
♦ and related hardwares
4. Do you produce them all?

We produce all kinds of chains in our factory, other products in our partner factories. By establishing cooperation agreements & capital injection, we obtained a wide & solid supply chain to meet your demands.

5. How do you control quality? By setting up quality control points and inspecting at each production process with strict standards, the defective products will be eliminated before packaging and delivery. For partner factories, we use a comprehensive system of quality standards to evaluate the
production line. Also our professional QC team will implement the onsite check and finish product check before delivery.
6. Why are you more trustworthy than the other factories? Quick Response:

We feedback your questions immediately 24 hours a day, 7 days every week.
Competitive Price:
We can provide a more competitive price based on the same quality level by more efficient management in every process.
One-stop Solution:
Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.

7.  How do I pay? We accept 30% payment in advance & 70% before shipment for the first cooperation, either by T/T or L/C.
8. How do I receive the goods? With our professional transport agents, we are capable of delivery products to most ports all over the world. Door-to-door service is also supported.

FOB, C&F, CIF are most commonly used trade terms.
