Canada P10 RGB LED Display Screen for Outdoor

Name: Canada P10 RGB LED Display Screen for Outdoor
Brand: Hoozoe
SKU: 128147235
Availability: InStock

US$ 700 - 1,200 MOQ: 10 Square Meters

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Hoozoe

Model Number:

Hoozoe-Outdoor-DIP-P10-RGB

Fujian Hoozoe Optoelectronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Hoozoe

Model Number Hoozoe-Outdoor-DIP-P10-RGB

Usage Outdoor

Tube Chip Color Full Color

Display Function Other, Video,Message,Picture,Text

Pixels 10mm

Screen Dimension 960*960mm

Specifications

1.High Stability, Power Saving
2. Convenient assemble and save space
3. High Cost Performance
4. Ultrathin
5. CE, 3C etc.

P10 Full Color Outdoor Module
Item	Unit	Parameter
Pixel Pitch	mm	10.00
Pixel Density	dots/sqm	10,000
Resolution of Module	dots	16×16
Module Size	mm	160×160
HUB		75A
Led Package	DIP Oval 346 lamp
Pixel Configuration	1R1G1B

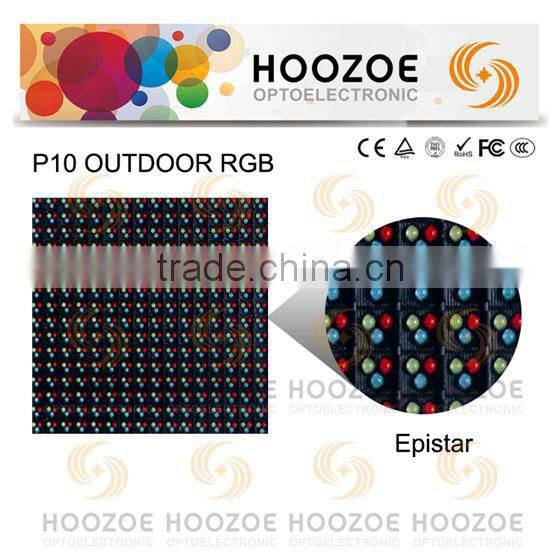

Chip Brand of LEDs	Epistar
Module Weight	kgs/pc	0.46
Brightness (White Balance)	nits(cd/sq.m)	7,500
Red Wavelength	nm	620-625
Green Wavelength	nm	520-525
Blue Wavelength	nm	470-475
Scan Mode	1/4 Scan
View Distance	M	5~100
Best View Distance	M	12.5~33
Viewing Angle-Horizontal	deg.	110
Viewing Angle-Vertical	deg.	60
Module Maximum Power	W	33.4
Max. Power Consumption	W/sq.m	1,302
Avg. Power Consumption	W/sq.m	390
Working Voltage	40A 5V
Power Supply	AC 110/220V
Waterproof Grade	IP65
Refresh Rate	Hz/S	3,000
Frame Rate	Hz/S	≥ 60
Gray Scale	4096 grades gray
Display Color	256256256
Display Function	Text,news,advertising,flash,animation
Input Signal	RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Luminance Degradation	Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25℃.
Defective Dot Rate		<0.0001
Life Span	hours	100,000
MTBF	hours	>10,000
Storage Temperature	℃	-35 -- +80
Working Temperature	℃	-20 -- +80
Working Humidity	10%-90%RH
Control System	Synchronization or Asynchronization
Quality Certificate	ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
Warrenty	2 Years
Working Environment	Outdoor
Other Fertures	LED&ICs in Departed PCB
Note: The above parameter is just for reference. Changes can be made according to customers' requirements.
