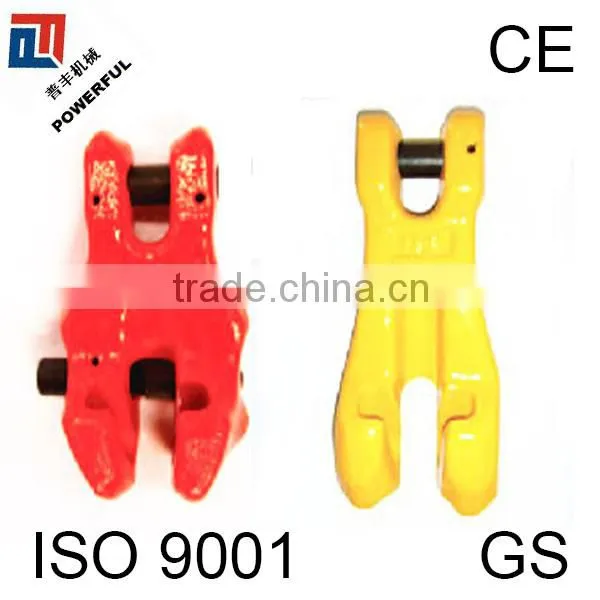

Help CenterWITH STICK SAFETY PIN G80 CLEVIS CLUTCH
Related Products
-
G80 CLEVIS PEAR LINK / CLEVIS LINKUS$ 1 - 10MOQ: 100 Pieces -
G80 PIVOTING LIFTING POINT EYE NUT / EYE SCREW WITH OMEGA LINKUS$ 1 - 10MOQ: 100 Pieces
-
2014 HOT SALE HIGH QUALITY G80 WELD ON PIVOTING D LINK WITH PADUS$ 1 - 10MOQ: 100 Pieces
-
G80 LIFTING SCREW POINTUS$ 1 - 10MOQ: 100 Pieces
-
G80 WEB SLING CONNECTORUS$ 1 - 10MOQ: 100 Pieces
Specifications
1.MATERIAL: ALLOY2.USE: G80 CHAINS
3.ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.WITH STICK SAFETY PIN G80 CLEVIS CLUTCH
2.USE: ADJUST CHAIN LENGTH
3.CERTIFICATE:ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.PROCESS: FORGED
6.KEY WORDS: WITH STICK SAFETY PIN G80 CLEVIS CLUTCH

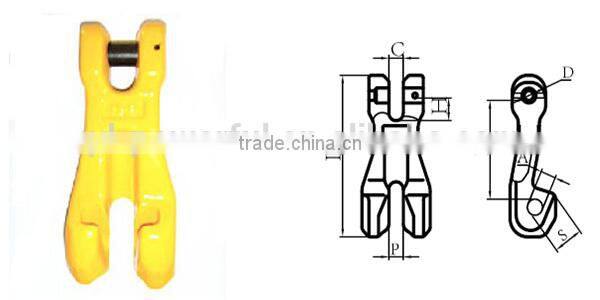

G80 CLEVIS CLUTCH :
| G80 CLEVIS CLUTCH | ||||||||
| ITEM NO. | WEIGHT | WLL | BL | P±0.5 | C±0.5 | A±0.3 | B±2 | H±1 |
| KG | T | T | ||||||
| 6 | 0.17 | 1.12 | 4.48 | 7.5 | 7.5 | 8 | 44 | 10.3 |
| 7/8 | 0.37 | 2 | 8 | 9.5 | 9.5 | 10.5 | 61.7 | 14 |
| 10 | 0.97 | 3.15 | 12.6 | 13 | 13 | 12.4 | 92 | 18.4 |
| 13 | 2.01 | 5.3 | 21.2 | 16.5 | 16.5 | 16 | 115 | 22.7 |
| 16 | 3.32 | 8 | 32 | 21 | 21 | 19.5 | 143 | 28.5 |
| 20 | 6.2 | 12.5 | 50 | 23.5 | 23.5 | 23 | 152 | 33.6 |
| 22 | 8.5 | 15 | 60 | 25.5 | 25.5 | 26 | 195 | 39 |

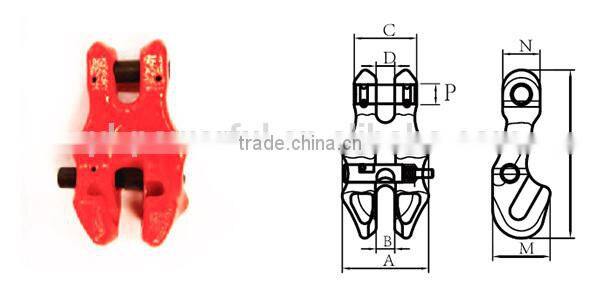

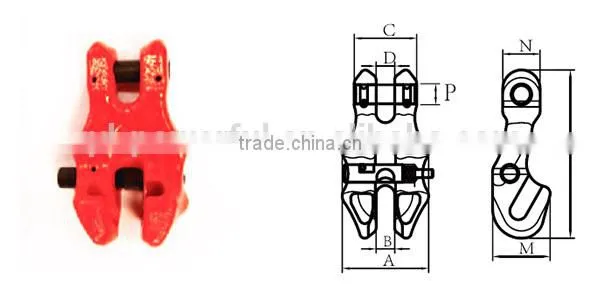

WITH SAFETY PIN G80 CLEVIS CLUTCH:
| WITH SAFETY PIN G80 CLEVIS CLUTCH | ||||||||
| ITEM NO. | WEIGHT | WLL | BL | A±0.5 | B±0.5 | C±0.5 | D±0.5 | M±0.3 |
| KG | T | T | ||||||
| 8-8 | 0.41 | 2 | 8 | 50 | 9.5 | 33 | 9.5 | 33 |
| 10-8 | 0.75 | 3.15 | 12.6 | 60 | 12.5 | 43 | 12.5 | 40 |
| 13-8 | 1.67 | 5.3 | 21.2 | 79 | 15 | 55 | 15 | 54 |
Never exceed Working load Limit
SUPER ALLOY STEEL: QUENCHED AND TEMPERED
INDIVIDUALLY PROOF TESTED AT 2.5TIMES WORKING LOAD LIMIT.
BREAKAGE TEST AND FATIGUE TEST AT 1.5 TIMES WORKING LIMIT FOR 20000 CYCLES
100% MAGNAFLUX CRACK DETECTION.
SUITABLE FOR 1 OR 2 LEGS G80 CHAIN SLING AS PER EN818-4
SURFACE FINISH : POWDER PLASTIFIED
Packing: packed in cartons then on pallets or packed in wooden case
Port: Any China main port.
Shipping : within 30days.
We have more than 10 years export experience. We are specialized in producing and exporting all kinds of chains, rigging hardware, casting and forging items, stainless steel products and other related products.
As a leading company in this industry in China, we provide favorable prices, good quality and the best services.
All members of our team will be very honored if you contact us. We will offer the best services to you.
The prodcution has passed the ISO9001 international quality system certificaion ,has been authorized the CE certification .
I'm Eileen Wang, any question , please contact with me, I will be always on line and at your service.
