Help CenterG80 LIFTING SCREW POINT
Related Products
Specifications
1.MATERIAL: ALLOY2.USE: LIFTING
3.ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.LIFTING POINT
Product Description

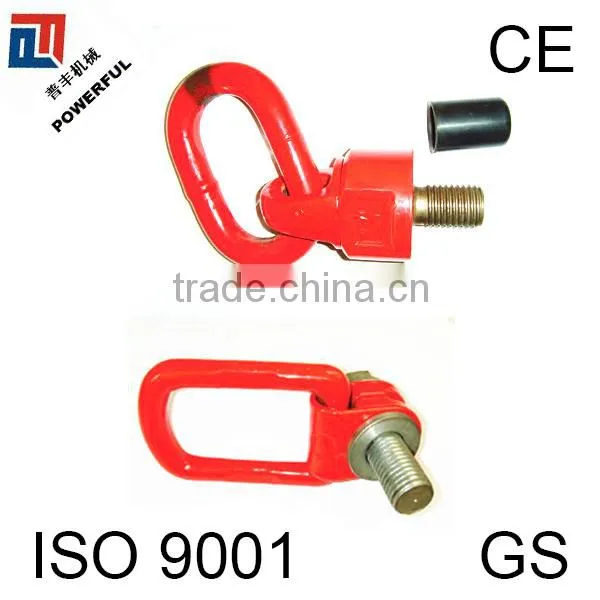

G80 LIFTING SCREW POINT
1.MATERIAL: ALLOY
2.USE: LIFTING
3.CERTIFICATE:ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.PROCESS: FORGED
6.KEY WORDS: G80 LIFTING SCREW POINT

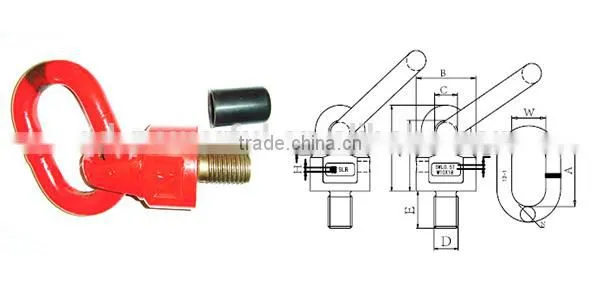

G80 LIFTING SCREW POINT
| G80 LIFTING SCREW POINT | |||||||||||||
| ITEM NO. | WEIGHT | WLL (T) | DxE | B | C | G | T | A | W | N | H | S | |
| KG | 90° | 0° | |||||||||||
| M8 | 0.41 | 0.3 | 0.6 | M8X13 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| M10 | 0.43 | 0.45 | 0.9 | M10X18 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| M10X90 | 0.38 | 0.5 | 1 | M10X90 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| M12 | 0.44 | 0.5 | 1 | M12X18 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| M12X40 | 0.52 | 0.45 | 1 | M12X40 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| M12X45 | 0.47 | 0.5 | 1 | M12X45 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| M12X110 | 0.53 | 0.5 | 1 | M12X110 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| M14 | 0.45 | 1.12 | 2 | M14X20 | 36 | 16.5 | 51 | 41 | 55 | 30 | 14 | 3 | 1 |
| M16 | 0.46 | 1.12 | 2 | M16X40 | 36 | 16.5 | 52 | 42 | 55 | 30 | 14 | 3 | 1 |
| M16X40 | 0.48 | 1.12 | 2 | M16X100 | 36 | 16.5 | 52 | 42 | 55 | 30 | 14 | 3 | 1 |
| M16X100 | 0.54 | 1.12 | 2 | M16X100 | 36 | 16.5 | 52 | 42 | 55 | 30 | 14 | 3 | 1 |
| M16X120 | 0.6 | 1.12 | 2 | M16X120 | 36 | 16.5 | 52 | 42 | 55 | 30 | 14 | 3.5 | 1 |
| M20 | 0.96 | 2 | 4 | M20X30 | 49.5 | 19 | 68 | 56 | 70 | 35 | 16 | 3.5 | 1 |
| M20X120 | 1.17 | 2 | 4 | M20X120 | 49.5 | 19 | 68 | 56 | 70 | 35 | 16 | 3.5 | 1 |
| M24 | 1.45 | 3.15 | 6.3 | M24X40 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1.5 |
| M24X40 | 1.42 | 3.15 | 6.3 | M24X90 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1.5 |
| M24X90 | 1.66 | 3.15 | 6.3 | M24X90 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1.5 |
| M24X120 | 1.74 | 3.15 | 6.3 | M24X120 | 57 | 22 | 78 | 65.5 | 85 | 40 | 18 | 3.5 | 1.5 |
| M27 | 1.47 | 3.15 | 6.3 | M27X35 | 57 | 22 | 78 | 65.5 | 85 | 40 | 20 | 3.5 | 1.5 |
| M30(5T) | 2.17 | 5.3 | 10.6 | M30X35 | 66 | 23.5 | 96.5 | 80.5 | 85 | 40 | 20 | 4 | 1.5 |
| M30X38 | 2.18 | 5.3 | 10.6 | M30X38 | 66 | 23.5 | 96.5 | 80.5 | 85 | 40 | 20 | 4 | 1.5 |
| M30X120 | 2.65 | 5.3 | 10.6 | M30X120 | 66 | 23.5 | 96.5 | 80.5 | 85 | 40 | 22 | 4 | 1.5 |
| M30(8T) | 3.57 | 8 | 11.8 | M30X35 | 80 | 28 | 112 | 92 | 115 | 50 | 22 | 6 | 2 |
| M30X38 | 3.58 | 8 | 11.8 | M30X38 | 80 | 28 | 112 | 92 | 115 | 50 | 22 | 6 | 2 |
| M30X120 | 4.01 | 8 | 11.8 | M30X120 | 80 | 28 | 112 | 92 | 115 | 50 | 22 | 6 | 2 |
| M36X90 | 4.17 | 8 | 11.8 | M36X90 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
| M36X400 | 6.41 | 8 | 11.8 | M36X400 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
| M39 | 3.65 | 8 | 11.8 | M39X50 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
| M39X90 | 3.71 | 8 | 11.8 | M39X90 | 80 | 27 | 109 | 89.5 | 115 | 50 | 22 | 6 | 2 |
| M42 | 3.62 | 10 | 15 | M42X50 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| M42X60 | 3.72 | 10 | 15 | M42X60 | 8 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| M42X130 | 4.46 | 10 | 15 | M42X130 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| M42X180 | 5 | 10 | 15 | M42X180 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| M45X60 | 4.17 | 10 | 15 | M45X60 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| M48 | 4.02 | 10 | 15 | M48X50 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| M48X110 | 4.8 | 10 | 15 | M48X110 | 80 | 27 | 109 | 89.5 | 115 | 50 | 25 | 6 | 2.5 |
| M56X84 | 11.6 | 15 | 25 | M56X84 | 117 | 42 | 310 | 280 | 152 | 70 | 32 | 7 | 2.5 |
| M64X95 | 12.4 | 15 | 25 | M64X95 | 117 | 42 | 310 | 280 | 152 | 70 | 32 | 7 | 2.5 |
Ultimate load is 4 times the Working Load Limit
G80 PIVOTING LIFTING SCREW:
| G80 PIVOTING LIFTING SCREW | ||||||||
| ITEM NO. | WEIGHT | WLL | BL | A | B | D | M | L |
| KG | T | T | ||||||
| M20 | 1.21 | 2.5 | 10 | 54 | 74 | 50 | 83 | 159 |
| M24 | 1.37 | 4 | 16 | 54 | 88 | 50 | 83 | 175 |
Ultimate load is 4 times the Working Load Limit
Never exceed Working load Limit
SUPER ALLOY STEEL: QUENCHED AND TEMPERED
INDIVIDUALLY PROOF TESTED AT 2.5TIMES WORKING LOAD LIMIT.
BREAKAGE TEST AND FATIGUE TEST AT 1.5 TIMES WORKING LIMIT FOR 20000 CYCLES
100% MAGNAFLUX CRACK DETECTION.
SUITABLE FOR 1 OR 2 LEGS G80 CHAIN SLING AS PER EN818-4
SURFACE FINISH : POWDER PLASTIFIED
Packing: packed in cartons then on pallets or packed in wooden case
Port: Any China main port.
Shipping : within 30days.
We have more than 10 years export experience. We are specialized in producing and exporting all kinds of chains, rigging hardware, casting and forging items, stainless steel products and other related products.
As a leading company in this industry in China, we provide favorable prices, good quality and the best services.
All members of our team will be very honored if you contact us. We will offer the best services to you.
The prodcution has passed the ISO9001 international quality system certificaion ,has been authorized the CE certification .
I'm Eileen Wang, any question , please contact with me, I will be always on line and at your service.
