Help CenterG80 WEB SLING CONNECTOR
Related Products
Specifications
1.MATERIAL: ALLOY FORGED2.USE: FOR WEB SLING AND G80 CHAIN
3.ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.G80 WEB SING CONNECTOR

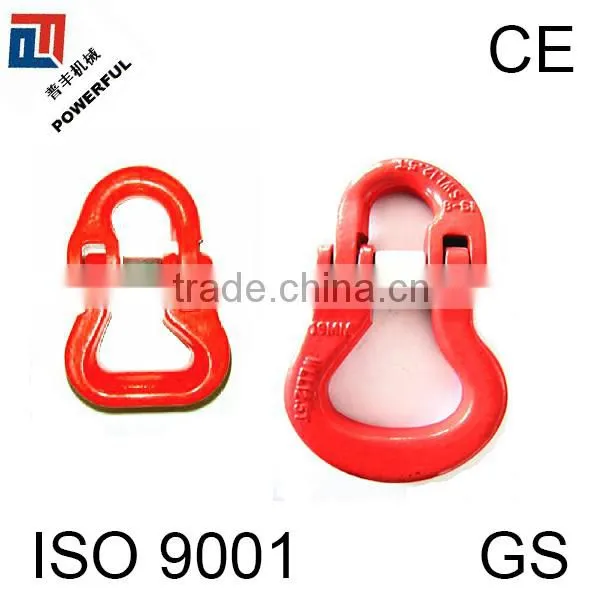

G80 WEB SLING CONNECTOR
1.MATERIAL: ALLOY
2.USE: WEB SLING AND G80 CHAIN
3.CERTIFICATE:ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.PROCESS: FORGED
6.KEY WORDS: G80 WEB SLING CONNECTOR
G80 WEB SLING CONNECTOR
| G80 WEB SLING CONNECTOR | |||||||||
| ITEM NO. | WEIGHT | WLL | BL | A±1.5 | B±2 | K±2 | W±2 | G±1 | E±1 |
| KG | T | T | |||||||
| 6 | 0.2 | 1.12 | 4.48 | 15 | 60 | 56 | 40 | 18 | 7 |
| 7/8 | 0.3 | 2 | 8 | 20 | 61.5 | 63.7 | 40 | 24 | 9.5 |
| 10 | 0.68 | 3.15 | 12.6 | 24 | 66 | 83 | 39 | 30.5 | 11 |
| 13 | 1.47 | 5.3 | 21.2 | 28 | 88 | 93.7 | 55 | 36.8 | 16.5 |
| 16 | 2.3 | 8 | 32 | 34.5 | 108 | 120 | 65.5 | 45.2 | 19.8 |
| 20 | 3.3 | 12.5 | 50 | 41 | 129 | 138 | 80 | 51.8 | 23 |
| 22 | 6.89 | 15 | 60 | 50 | 191 | 180 | 126 | 70 | 26 |
| 26 | 10.62 | 21.2 | 84.8 | 58 | 228.4 | 209.5 | 152 | 32 | 30 |
| 32 | 18.92 | 31.5 | 126 | 72.5 | 252 | 279 | 160 | 91 | 55 |
Ultimate load is 4 times the working load limit.
G80 SPECIAL WEB SLING CONNECTOR
| G80 SPECIAL WEBBING CONNECTOR | ||||||||
| ITEM NO. | WEIGHT | WLL | BL | A±1 | M±1 | H±1 | K±2.5 | L±3 |
| KG | T | T | ||||||
| 19 | 3.1 | 12.5 | 50 | 37 | 26 | 20 | 186.5 | 246 |
| 22 | 4.55 | 15 | 60 | 48 | 28 | 25 | 205.5 | 273 |
| 25 | 6.1 | 20 | 80 | 51.5 | 33 | 30 | 231 | 306 |
Ultimate load is 4 times the working load limit.
Never exceed Working load Limit
SUPER ALLOY STEEL: QUENCHED AND TEMPERED
INDIVIDUALLY PROOF TESTED AT 2TIMES WORKING LOAD LIMIT.
BREAKAGE TEST AND FATIGUE TEST
100% MAGNAFLUX CRACK DETECTION.
SUITABLE FOR 1 OR 2 LEGS G80 CHAIN SLING AS PER EN818-4
SURFACE FINISH : POWDER PLASTIFIED
Packing: packed in cartons then on pallets or packed in wooden case
Port: Any China main port.
Shipping : within 30days.
We have more than 10 years export experience. We are specialized in producing and exporting all kinds of chains, rigging hardware, casting and forging items, stainless steel products and other related products.
As a leading company in this industry in China, we provide favorable prices, good quality and the best services.
All members of our team will be very honored if you contact us. We will offer the best services to you.
The prodcution has passed the ISO9001 international quality system certificaion ,has been authorized the CE certification .
I'm Eileen Wang, any question , please contact with me, I will be always on line and at your service.
