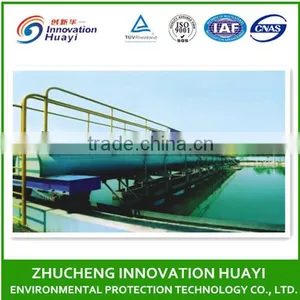

Mud scraper system with peripheral drive for sewage treatment
Specifications
This equipment is peripheral drive. the sewage radial flows through the central pipe of the pool the spreaded by the distrubutor tube then the suspended mud can deposite. the driving device can revolove with the working bridage the scraper arm and the board can move together at the same time. The scraper board gathers the mud together and the pipe discharges the mud into the central mud tank by the water pressure bearing in the pool. the mud releases outside of the pool through the mud pipes. the suspending fross floating leads to the dross hopper through the revolving device for scrape dross. the supernatant release through the outlet trough from the triangle outlet water weir.
Application:
The mud scraper with peripheral drive is suitable to the big , middle and small scale of radial sediment pool that is central water inlet and around water outlet, central mud release. it mainly used to cecond mud deposite town and discharge in the sewage treatment plant.
| model | pool diameter(m) | pool depth(m) | power(kw) | rotational speed(m/min) |
| CXBG2-3 | 20-30 | 3-3.5 | 2 | 0.37 |
| CXBG3-4 | 30-40 | 3.5-4 | 3 | 0.55 |
| CXBG4-5 | 4-50 | 4-5 | 3 | 0.75 |
