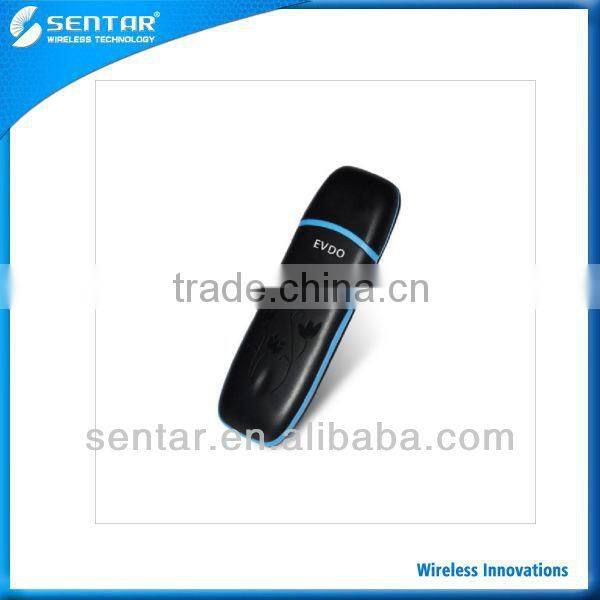

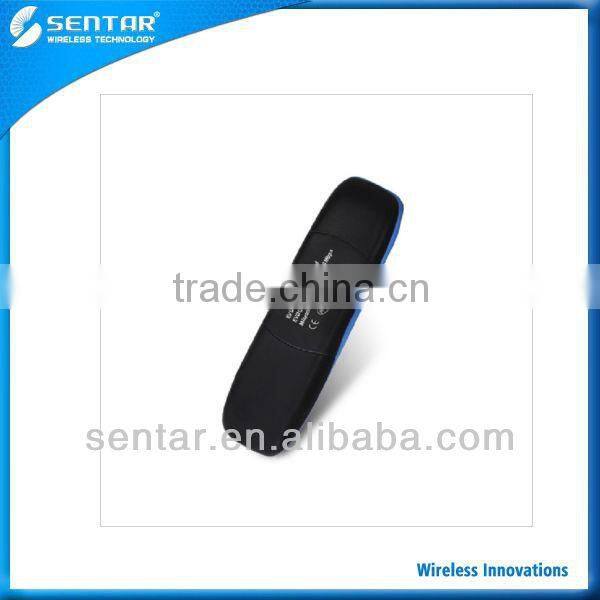

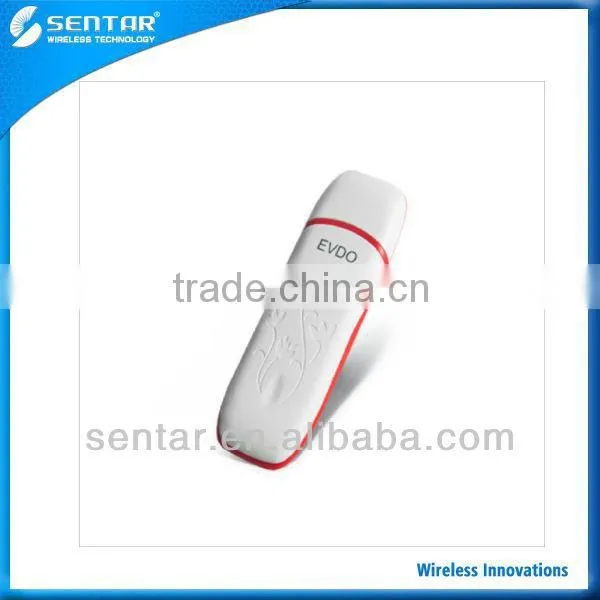

Usb Modem Evdo/smartfren Cdma 3g Evdo Usb Modem

Name: Usb Modem Evdo/smartfren Cdma 3g Evdo Usb Modem
Brand: Sentar
SKU: 128077905
Availability: InStock

Usb Modem Evdo/smartfren Cdma 3g Evdo Usb Modem thumbnail-1

Usb Modem Evdo/smartfren Cdma 3g Evdo Usb Modem photo-1

US$ 8 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Products Status:

Stock

Style:

External

Type:

Wireless

Contact Supplier Request Quote Chat Now

Shenzhen Sentar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Style External

Type Wireless

Interface Type USB

Transmission Rate Other, 3.1Mbps

Certification CE,RoHS

Brand Name Sentar

Model Number ST886S

Place of Origin Guangdong, China

Specifications

1.cdma 3g evdo usb modem
2.Max download speed:3.1Mbps
3.Frequency Range:800MHz
cdma usb evdo modem unlocking

cdma 3g evdo usb modem

The USB-stick modem provides high-speed data services by accessing EVDOrA/EVDOr0/cdma2000 1x networks. The maximum rate of downlink is 3.1Mbps and the maximum rate of uplink is 1.8Mbps. The software is installed automatically without CDROM and supports one-button to connect with internet. SMS servcie is also supported.

Specification:

Chipset	Qualcomm	QSC6085
Technical Standard	EVDOrA	CDMA 1XEV-DO Revision A DL 3.1Mbps UL 1.8Mbps
	EVDOr0	CDMA 1XEV-DO Revision 0 DL 2.4Mbps DL153.6kbps
	cdma2000 1x	CDMA 1XRTT DL 153.6kbps DL153.6kbps
Frequency Band	EVDOrA/EVDOr0/cdma2000 1x	800M(Default) 1900M (optional )
Power Class	EVDOrA/EVDOr0/cdma2000 1x	Power Class III(+23dBm)800M
Power Class	EVDOrA/EVDOr0/cdma2000 1x	Power Class II(+23dBm)1900M
Conduction Rx sensitivity	EVDOrA/EVDOr0/cdma2000 1x	< -105dBm
External Interface	CDMA Antenna	Internal Antenna
	USB Type	standard 5V USB Interface
	USB Speed	USB 2.0 Full Speed
	Power Mode	Powered via the USB interface

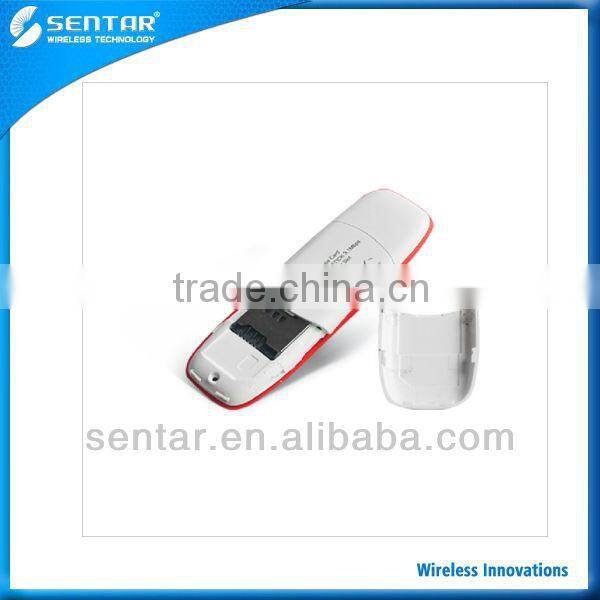

	SIM/USIM Card	standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102
	AT Interface	Compliant with China Telecom. Standard
Main Features	Form Factor	USB stick
	Available Colors	Black/ White, other colors upon customer requirements
	Dimension (mm)	88mm(L)×26mm(W)×10.5mm(H)
	Weight (g)	TBD
	Visual Indicator(LED)	A red LED lights, turn Always, the data flow of the red light flashes
	Micro-SD Card Slot	Supported, Max up to 4G Supported
Main Software Functions	PIN1	Supported,enable/disable/modify
	PC Voice	Supported
	Languages Supported	Chinese and English, more languages could be supported upon customer requirements
	SMS	Supported
	PhoneBook	Supported
	SMS and Data service simultaneously Operation	Supported
	Setup Mode	Plug & Auto Installation
	Zero-CD installation	Supported
	Operate System Supported	Win2000/ XP/VISTA/Win7 32bit/64bit ,OS Mac

Packing:

Carton

ST886 EVDO Modem

User Manual

Warranty & maintenance:

We provide 12 months maintenance warranties. Items can be replaced during the first month

or maintained for the first year.

Product pictures:

Certificates:

Notice:

We are the professional OEM/ODM manufactory in this line and customized OEM packing,logo printing as well different language web interface baced on your order.

We can guarantee to give you best professional free support services with the help of our techology support engineers.
