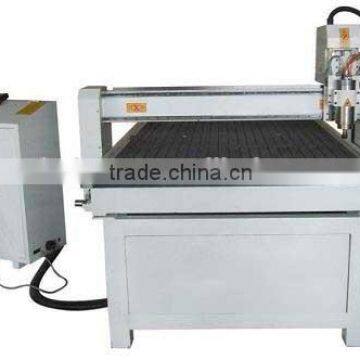

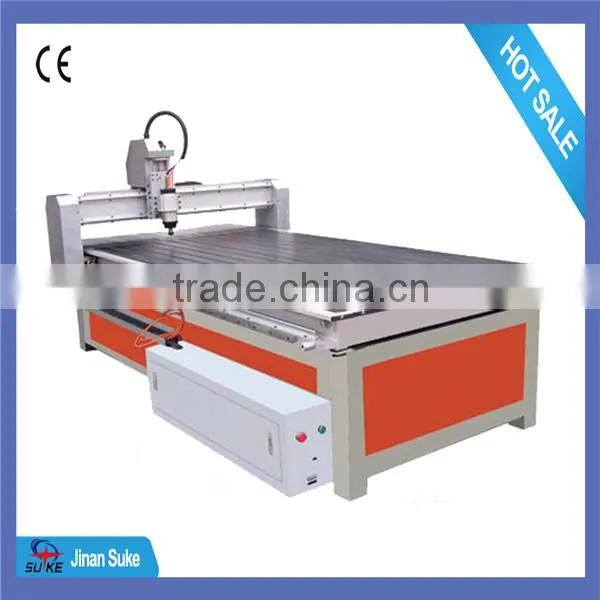

1325 CNC router cutter wood price

Name: 1325 CNC router cutter wood price
Brand: SUKE
Price: USD $9,000 - 12,500 / Set

FOB Price

USD $9,000 - $12,500 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao ( Ningbao Tianjin Shenzhen is also ok)
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Laser Type:	CO2	Applicable Material:	Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Cutting Thickness:	15mm wood for laser, 30mm for CNC router	Cutting Area:	1300x2500mm	Cutting Speed:	0-30000mm/min
CNC or Not:	Yes	Cooling Mode:	Water Cooling	Control Software:	RD/Leetro 6525
Graphic Format Supported:	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Place of Origin:	Shandong, China	Brand Name:	SUKE
Model Number:	SK1325	Certification:	CE, Other, CE, FDA	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

1325 CNC router cutter wood price

One machiine is a combination of CNC ROUTER and CO2 laser engraving cutting machine.

Laser machine parts can engrave and cut nonmetal materials with her slim laser beam. While CNC router can cut big thickness by her high power.

CNC router Part

Technical Parameter
Model	SK1325
Working area (xyz)	13002500200mm
Vacuum system	Steel Structure lathe bed and T-slot of sectional material
Work holding	By Vacuum table
X Y movement	Rack and gears
Z movement	Ball screw/ German
Guide/rail	High precision Square rail, 20mm width
Precision (mm)	0.07
Positioning accuracy (mm)	0.02
Repeatability (mm)	0.02
Idling speed (mm/min)	20000
Working speed (mm/min)	15000
spindle	3 kw air cooling (0-18000rpm)
Available tools (mm)	Φ3.175~Φ12.7
Motors	Stepper motor
Driver	Leadshine 860
Working voltage	AC220V±30V, 50HZ
Command code	G code (.nc,.mmg, 8.u00, etc.),*.eng
Control system	DSP system
Software	ArtCam/ Wentai software
Auto lubrication system	Yes
Y axis	Double motor for Y axis
Compatible software	Compatible with any software generating G code file in window 98/XP/7

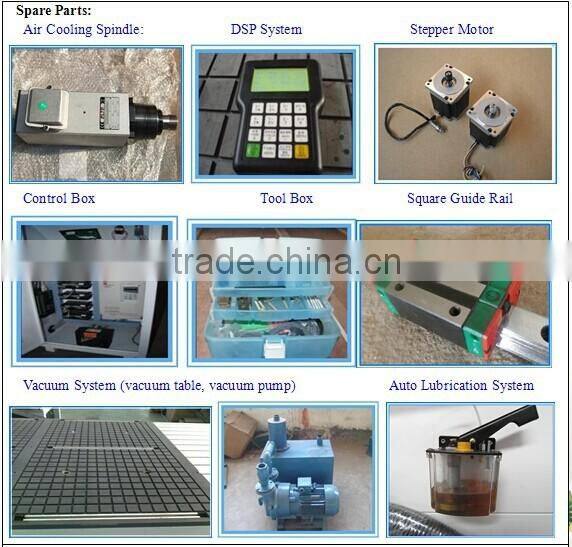

Spare parts of CNC router

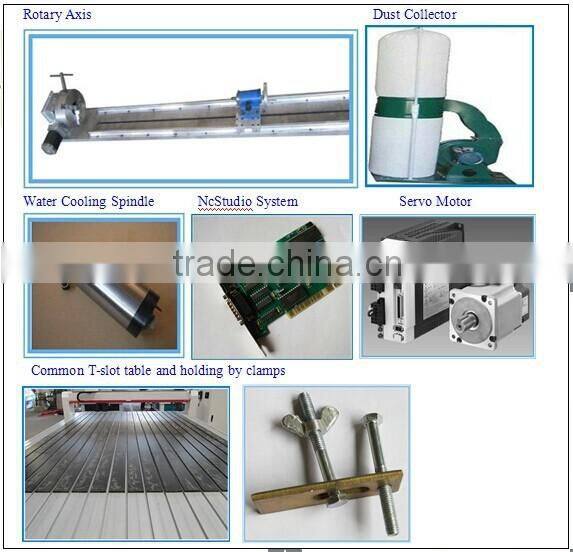

Optional Parts for CNC router

---------------------------------------------------------------------------------------------------------

Laser machine part

Technical Parameter
Model	SK1325
Working area(mm)	1300mm*2500mm
Laser tube power	Reci Z6 (130w-160w)
Working life of tube	10000 hours for Reci laser tube
Engraving speed	0 - 60,000mm/min
Cutting speed	0 - 30,000mm/min
Resetting positioning accuracy	0.01mm
Laser tuber cooling	Water cooling
Max power	About 1kw
Machine control	DSP controlling
Working platform	Honeycomb table or knife table
Power supply	AC 110 - 220V , 50 - 60Hz
Min. shaping character	Chinese 2mm2mm,English 1mm1mm
Supported graphic	BMP, PLT, DST, DXP, and AI
Driving system	Stepper motor
Assistant equipment	Exhaust-fans, CW5200 Chiller, air pump
Software supported	CorelDraw, AutoCAD , Photoshop
Software	Laser works

Sample Photo

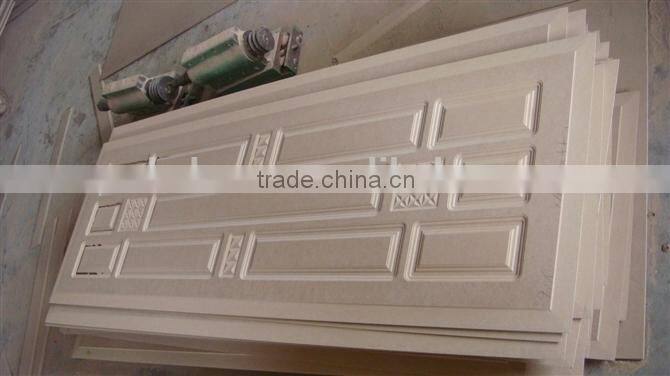

Made by CNC router part

Made by CO2 laser engraving cutting mahcine part

Machine Package

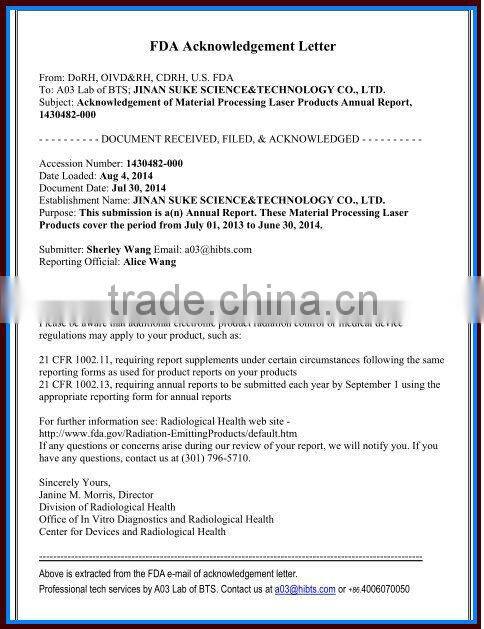

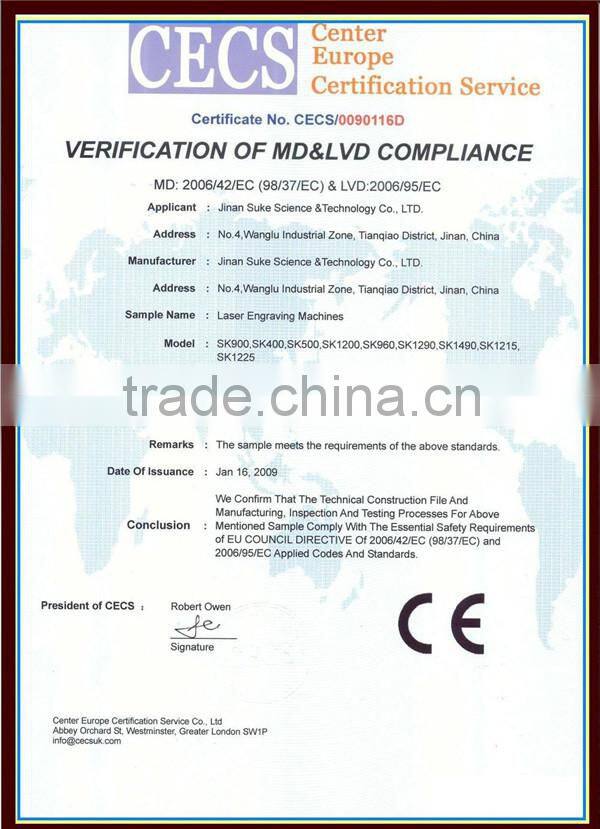

CE & FDA certificate

Warranty Term

1) One year for machine body.

2) 10montys for Reci laser tube

3) 6 months for assistant parts of laser machine, such as chiller, air pump, exhaust fan.

4) 3 months for reflection mirrors and lens.

If any interesting, please don't hesitate to contact us!

My Skype: sukelaser5

WhatsApp: +8615853160596

Best Regards

Wendy
